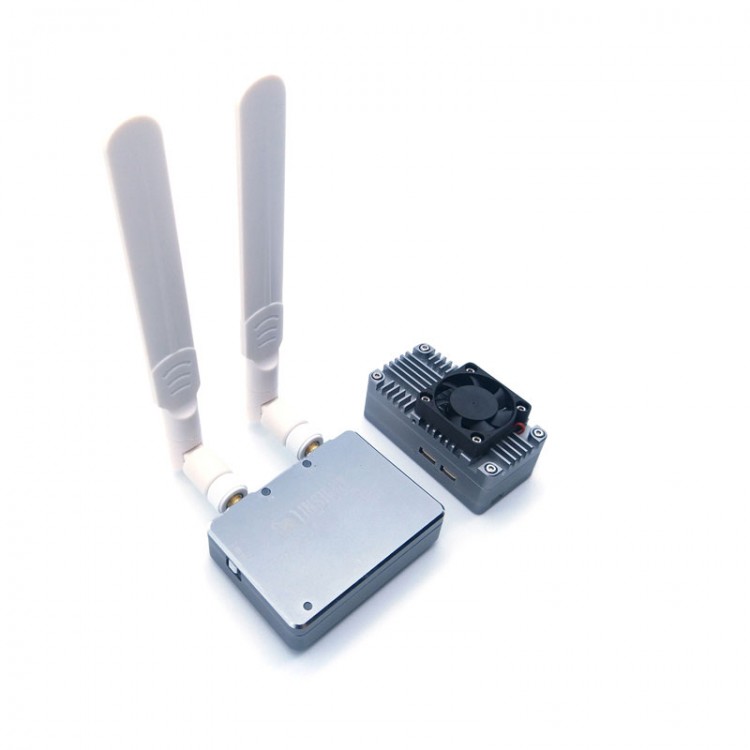

5G 200MW 1080P Full HD Digital FPV Video Transmitter and Receiver Wireless Combo w/OSD

5G 200MW 1080P Full HD Digital FPV Video Transmitter and Receiver Wireless Combo w/OSD

Click Video Here:
http://v.youku.com/v_show/id_XMTg0NzQ3NDE3Ng==.html

Features:
1. Anti-interference
2. Low Latency
- system delay 80ms;
3. OSD function:
- Using pix apm pixw without external OSD, APP can be achieved information overlay function;

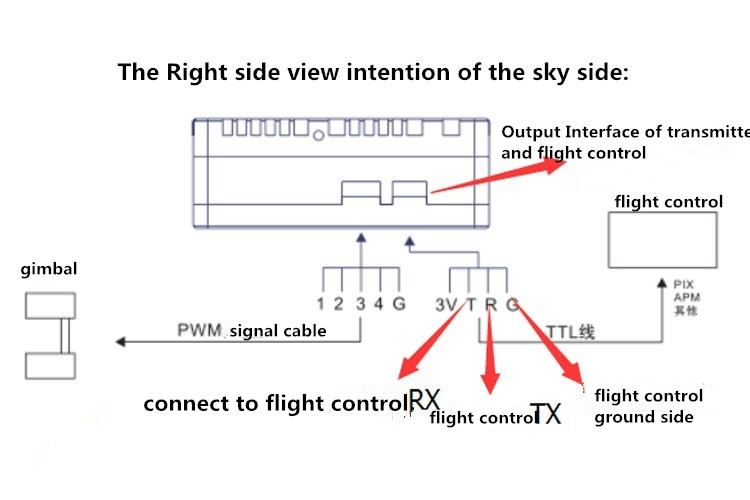

4. Use with Flight Controller:
- without any restrictions to use built-in digital transmission APP with pix apm pixw
5. Battery and Charge
- Built-in 1300mAh capacity battery on the ground side, the equipment can work continuously for 2 hours.

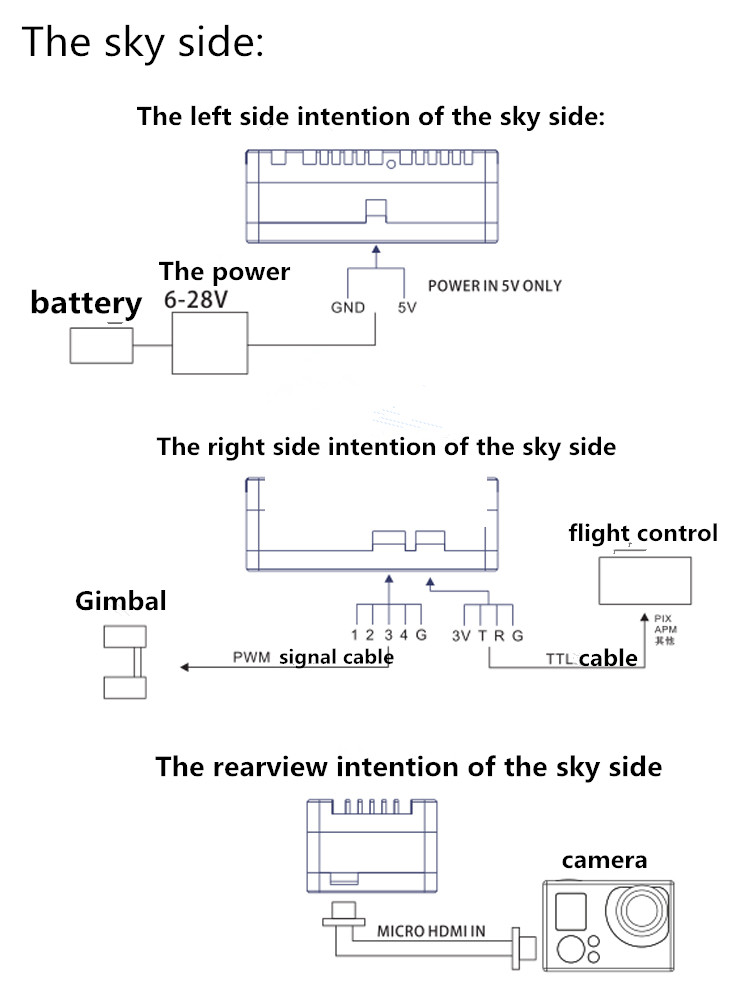

- Sky-side input voltage 5V (optional wide voltage input module 7-28V)
6. Video Input & Output Format:
- HD Port input;
- 5G WI-FI full HD video output: Android phone, tablet computer can be as the display after connecting the APP;

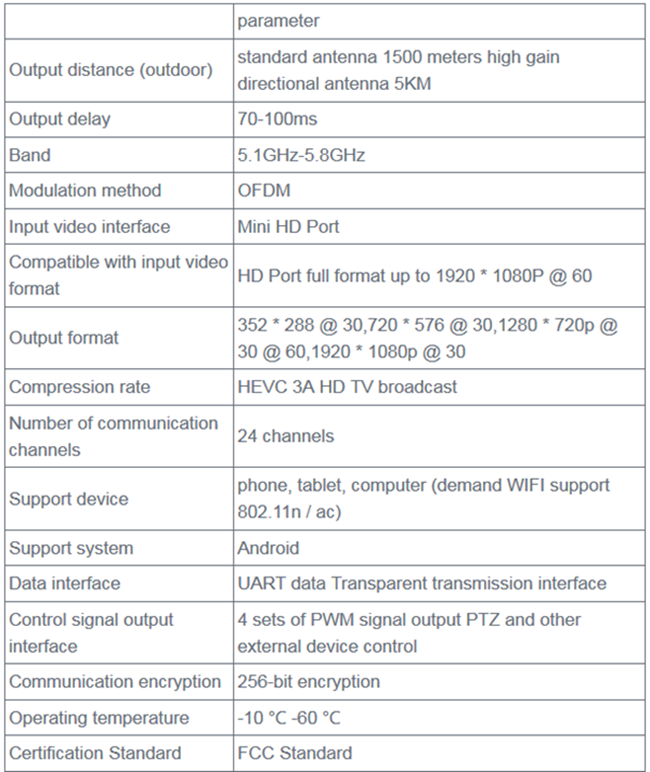

7. 5G Full HD Digital Transmitter:
- Digital video transmission, input up to 1920 * 1080 @ 60fps, output up to 1920 * 1080 @ 30fps;
- 5G radio frequency technology, the transmission power is 100mw (in line with FCC certification standards);
- The ground side with 5dbi omni-directional antenna, the measured effective transmission distance is up to 1.5km;
- The ground side with 14dbi directional antenna, the measured effective transmission distance is up to 5km;

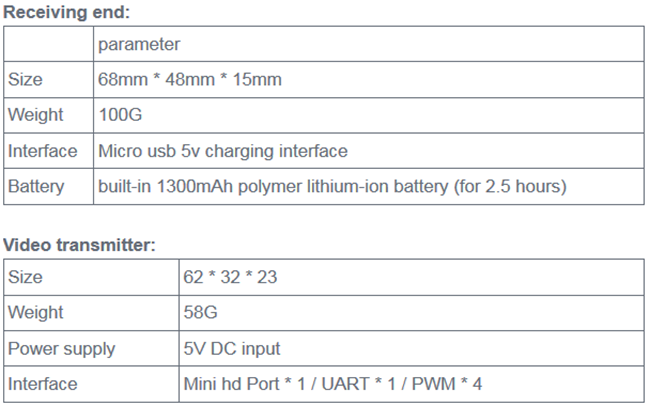

Specifications:
- Material: aluminum alloy
- Power (ground): DC power input 5v; built-in lithium battery; power consumption: 1.5-3W
- Power supply (sky side): DC power input 5V; power consumption: 3-5W
- Size (ground side): 68 * 48 * 15 (mm)
- Size (sky side): 62 * 32 * 23 (mm)
- Weight (ground side): 100g
- Weight (sky side): 58g

Package Included:
- 1 x Insight Transmitter
- 1 x Insight Receiver
- Other Accessories
