5PCS Oracle II 02 Dual Op Amp Hybrid Discrete Dual Operational Amplifier Replace NE5532 MUSES02

5PCS Oracle II 02 Dual Op Amp Hybrid Discrete Dual Operational Amplifier Replace NE5532 MUSES02

Description:
Designed for general purpose audio applications, the Oracle II is a new generation of hybrid discrete audio operational amplifiers. After reducing the relative bandwidth and speed, the maximum withstand voltage is increased to ±20V. The constant current is also greatly reduced, increasing their applicability and they can be used to replace any audio op amp in an audio circuit. Manufactured to high standards, the Oracle II is built with high-quality audiophile-grade components for outstanding audio performance and is the smallest hybrid discrete op amp on the market. With round machined tri-metal gold-plated pins, each individual electronic component is of the highest quality. There are also professional graphene heat dissipation and noise cancellation filter matrix technology. It is designed in a DIP compatible package, DIP-8 for single and dual channels, and DIP-14 for quad channels. The Oracle II is a high quality and adaptable audio operational amplifier. After detailed verification, they can directly replace op amps in any audio system.

The pins of these op amps are compatible with OPA2604AP, NE5532, MUSES02, OPA2604, LME49720HA, LME49720HA, OPA2107AP, AD827SQ/883B and other op amps.

They boast comprehensive balance, clean sound, natural listening, high analytical power, great dynamics, excellent low-frequency performance, full mid frequency, warm and mellow vocals, sweet and moist, high frequency transparent, delicate and supple sound.

1. There is no relatively low open-loop gain, so there is no need for deep negative feedback like op amps, and the sound is more natural and delicate.
2. Wide voltage application range: It can work well within the voltage of ±2V to ±20V.
3. Larger output current, the output current of the general op amp is about 3.5MA, the maximum output current of these op amps is 20MA.

Applications:
Suitable for audiophile audio amplifier, preamp, CD, headphone amp, audio amplifier, DAC output buffer, low-pass filter and buffer. They fit precision instruments, fast data acquisition, DAC output amplification, optoelectronic, ultrasonic, sonar, high-impedance sensor amplifiers, high performance audio circuits, and active filters.

Specifications:
- Power supply range: ±2V to ±20V
- Full power bandwidth: 4MHz Maximum
- Output current: 60mA
- SNR: 130 dB A-Weighted
- Total harmonic distortion plus noise: 136 dB
- Slew rate: 35V/us
- Typical Offset voltage: 100µV
- Quiescent current draw: 3.5 mA (each channel)
- Dimensions: 10 x 10 x 5mm/0.4 x 0.4 x 0.2" (LxWxH)

Package Included:

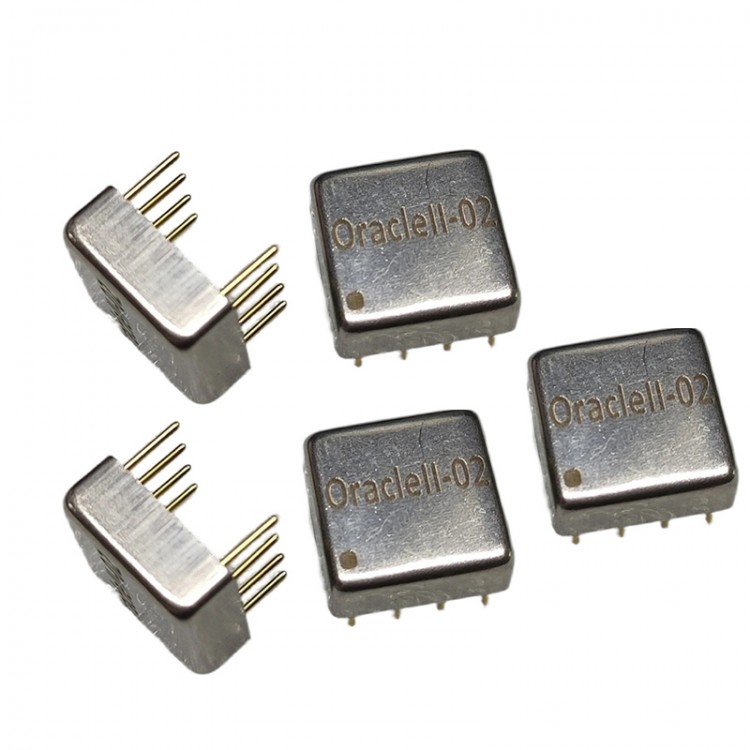

- 5 x Dual Op Amps
