5pcs XH-M239 18650 Battery Capacity Tester Modules MAH/MWH Digital Measurement High Precision
Features:
- Lithium battery capacity tester
- For 18650 batteries
- DC 5-12V power supply
- Intelligent chip control
- Clear LCD display
- High-precision testing
Product Parameters:
- Product name: 18650 capacity tester
- Product model: XH-M239
- Display accuracy: 0.1
- Measurement accuracy: 1mAH

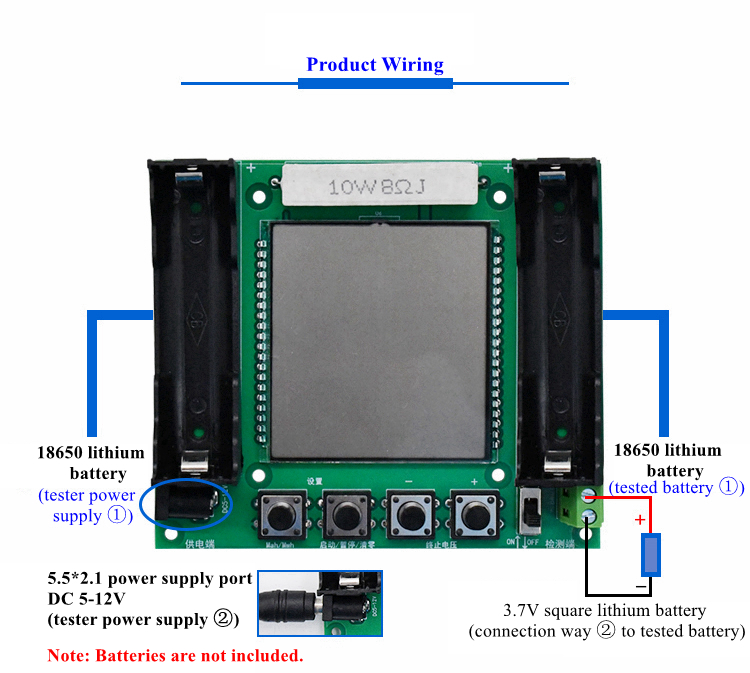

- Power supply voltage: DC5-12V/18650 battery (battery is not included)
- Standby current: 5mA

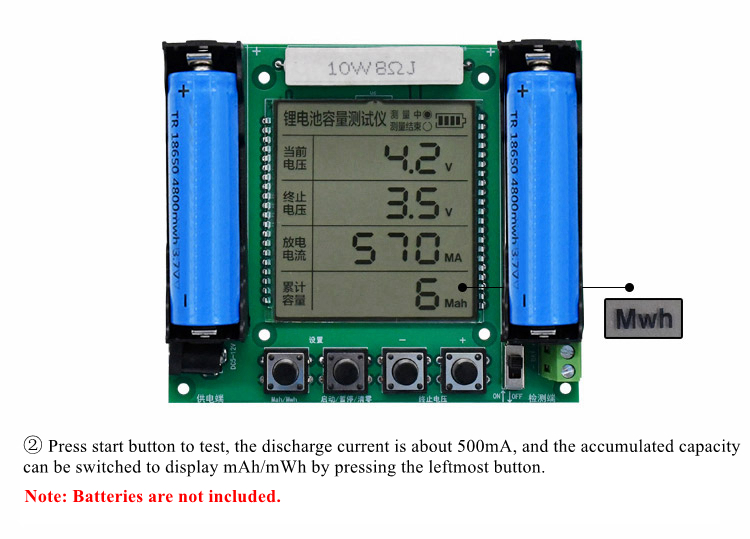

- Discharge current: about 500mA
- Load power: 10W 8Ω

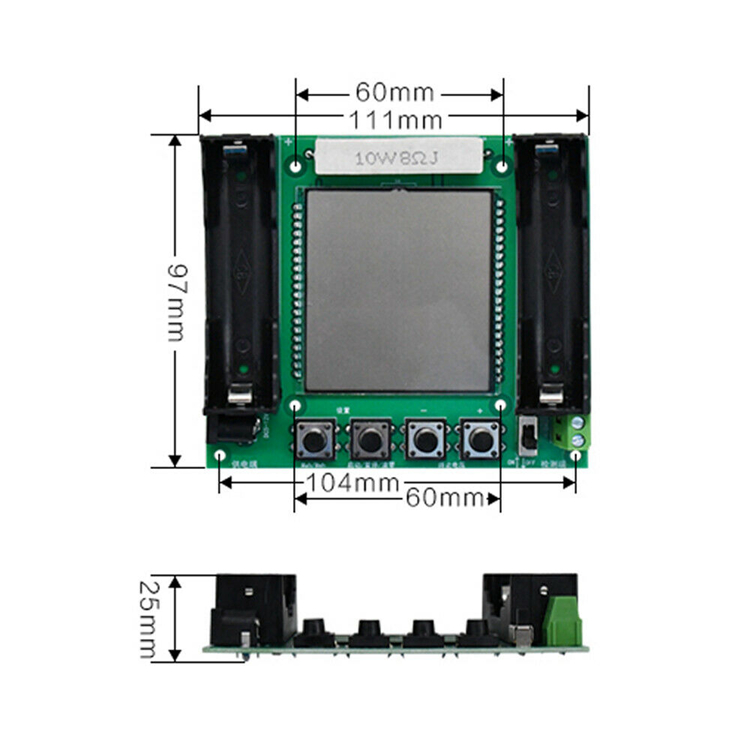

- Appearance size: 111*97*25mm
- Installation size: As the picture shows. Diameter 3mm
- Product weight: 93g
Package Included:

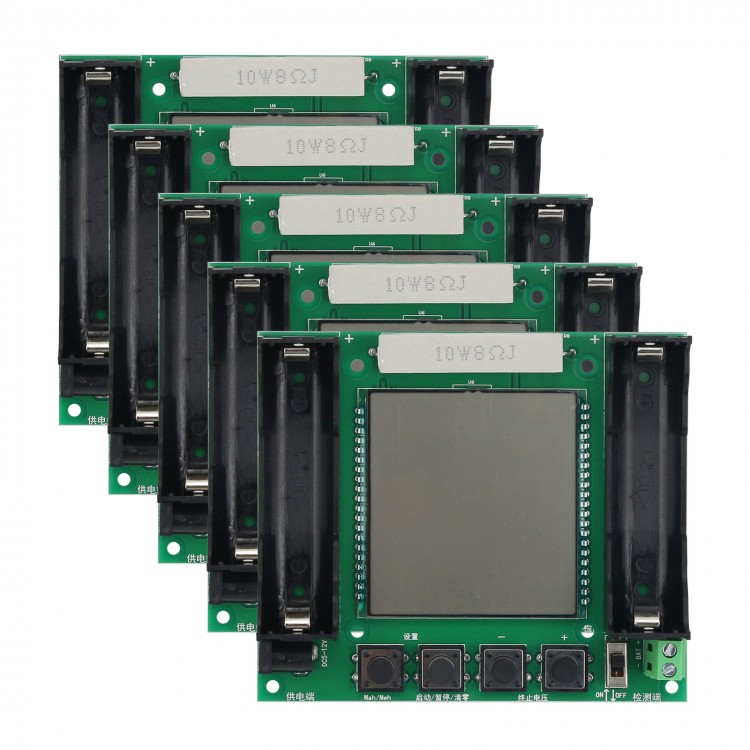

- 5 x 18650 Capacity Tester Modules
Note:
- Batteries are not included.
★ About 18650 battery:

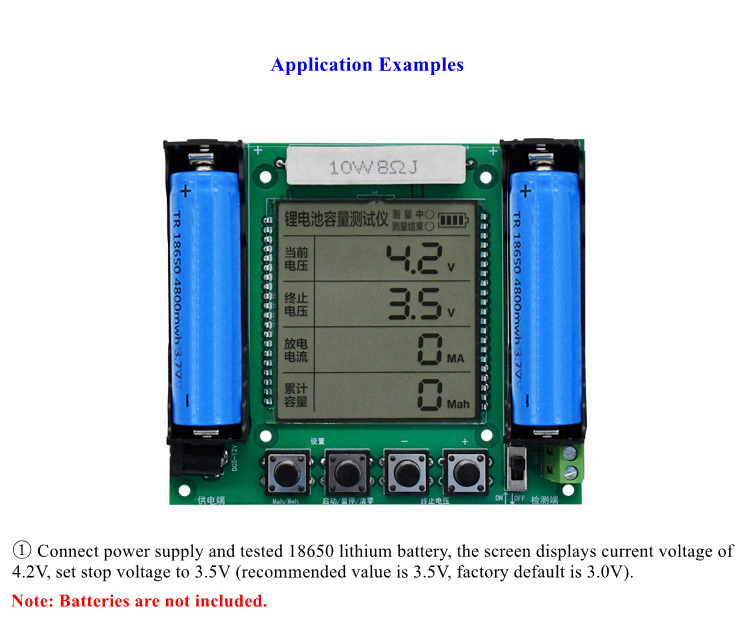

The minimum discharge stop voltage of 18650 battery is generally 2.75V. Under normal circumstances, when the voltage drops to 0.875 times the rated voltage (3.24V), it should be charged. If you continue to use it, the voltage will drop rapidly, and it may be damaged by over-discharge, which will affect the life. (It is recommended to set discharge stop voltage to 3.5V). The charging voltage is generally 4.20V-4.3V/4.35V.
★ Measurement time calculation:
Assuming that battery capacity is 2000mAH, the discharge current of the tester is about 500mAH (2000+500=4), and the measurement time is about 4 hours.
