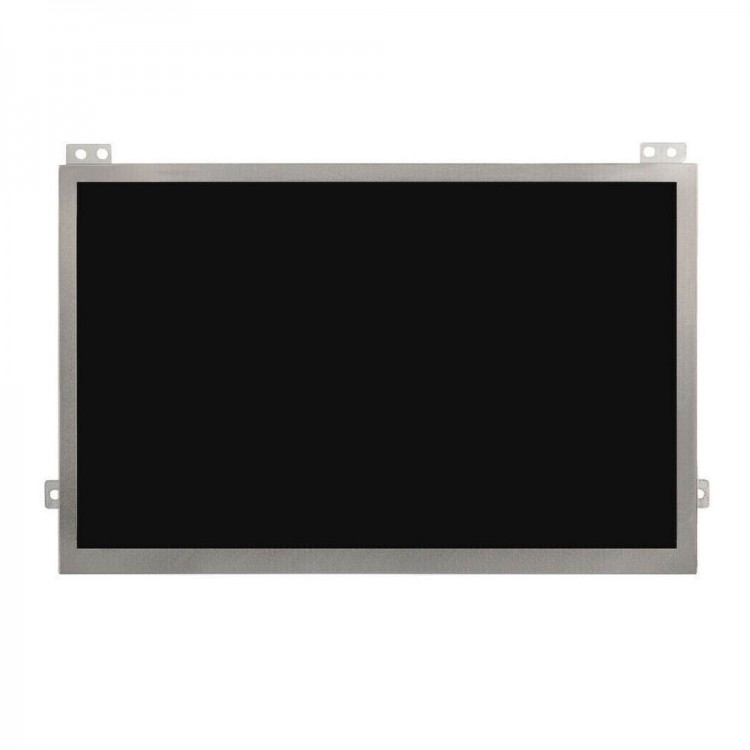

6.5-Inch TDO-WVGA0633F00045 LCD Touch Screen Resistive Touch Screen for MIB2 680 682 684 200 Series

6.5-Inch TDO-WVGA0633F00045 LCD Touch Screen Resistive Touch Screen for MIB2 680 682 684 200 Series

Product Specifications:
* Touch Panel Structure: ITO film + TIO glass
* Light Transmittance: ≥80%
* Surface Hardness: ≥3H (pencil hardness)
* Service Life: 1,000,000 touches
* Operating Temperature: -20°C to 70°C
* Response Time: ≤10ms
* Operating Force: <80g
* Connection Material: FPC flexible flat cable

Electrical Characteristics:
* Circuit Rating (Max Voltage): DC 5V, 1-5mA
* Optical Characteristics (Transmittance): Film and glass type ≥80% (must maintain above 78% at 550nm visible light wavelength)
* Insulation Resistance: Analog type, 25V (DC) ≥ 20MΩ
* Film Terminal Resistance (Top Circuit): 200-900Ω
* Glass Terminal Resistance (Bottom Circuit): 200-900Ω
* Chattering Time (Contact Bounce Time): ≤10ms
* Tapping Durability: ≥1,000,000 times (using Φ2.6mm rubber tip, 250gf pressure, 2 times/sec)
* Pen Sliding Durability: >100,000 times (using Φ2.0mm polyester fiber pen, 250gf pressure, 60mm/s stroke rate, repeated strokes at same location 10-100mm)

Packing List:
* 1 x LCD Touch Screen

Packaging Details:
* Weight: 0.5kg
