6-Axis Mach3 Motion Controller USB Port 2MHz CNC Breakout Board MK6-V + 6-Axis Wireless MPG Handwheel

Availability: In stock, usually dispatched in 1 business day

  • Price:$328.26
  • Price in reward points: 3283 Reward Points: 33
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $321.69 $315.13 $305.28 $292.15 Contact US
Quantity:

6-Axis Mach3 Motion Controller USB Port 2MHz CNC Breakout Board MK6-V + 6-Axis Wireless MPG Handwheel

Package Included:

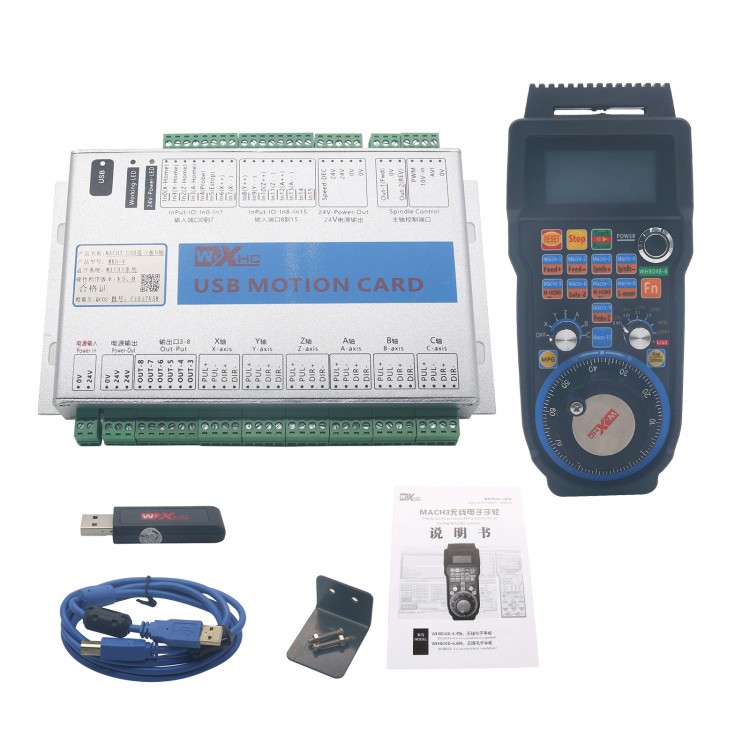

- 1 x Set of 6-Axis Motion Controller + 6-Axis MPG

Note:
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
- Batteries are not included in the package.


6-Axis Motion Controller:
Applications:
MK6-V: 6 axis motion card works with Mach3 CNC system for all Windows platform

Electrical Characteristics:
- CPU: Dual-Processors, for ARM+FPGA
- Axis output control:
* Drive Current: Isolated open collector output: 5V, 20mA
* Drive: Pulse + direction output
* Output frequency: 2000 KHZ (2MHz)
* Axis: 6-axis
* Isolation Voltage: 3.5KV
- Spindle inverter output:
* Analog voltage output:0-10V
* PWM output:5V, 1KHZ, Duty: 0-100%
* Pulse + direction output:5V, 15HZ to 4 KHZ
- Spindle speed input:
* Input: Isolated input, 5V pulse signal
* Isolation Voltage: 3.5KV
- 8 IO output:
* Drive Current: Isolation: 50mA, 25V
* Isolation Voltage: 3.5KV
- 16 IO input:
* Input Current: Isolated inputs, 5 mA, maximum voltage 25V
* Isolation Voltage: 3.5KV
* Mach3 Port Position: P1 Port
* USB interface: Complies with USB2.0 standard

Features:
- Fully support all Mach3 version
- Support save data when power off.
- Support spindle speed feedback
- Support 3 meter USB cable
- Supports Up 6-axis
- Maximum step-pulse frequency is 2000KHz.Status indicator LED can be useful to show the USB
- Connection, and working status by flashing.
- 16 general-purpose input,8 output has speed function, the spindle actual speed Mach3
- Interface in real-time display
- All IO-port isolation, interference, stable performance
- Ful support for USB hot-swappable, the card is Monitoring USB connection status at any time,

Key feature:
1. Standard USB device and work at all windows with USB hot plug.
2. The card state is monitored.
3. Support 6 axis to motion at the same time.
4. Step Pulse frequency Up to 2000khz,support servo and step motor driver.
5. The USB state indication with led
6. All io is isolated, anti-noise and stable performance
7. Spindle control with PWM and step/pulse
8. Aluminum shell, shield the interference.
9. Speed index function.
10. Power off and continue function

Software installation:
- First, install Mach3 software to your PC.
- Second, copy your driver into Mach3.Check readme file in the CD.
- Check our wiring for reference, connect our card to your machine correctly.
- Connect your PC to our card by using network cable.
- After these steps, you can open your Mach3 software for operating.

Attention: Please take a look at Mach3 software parameters setting, steps per and so on in the printed manual of our packing box for reference.

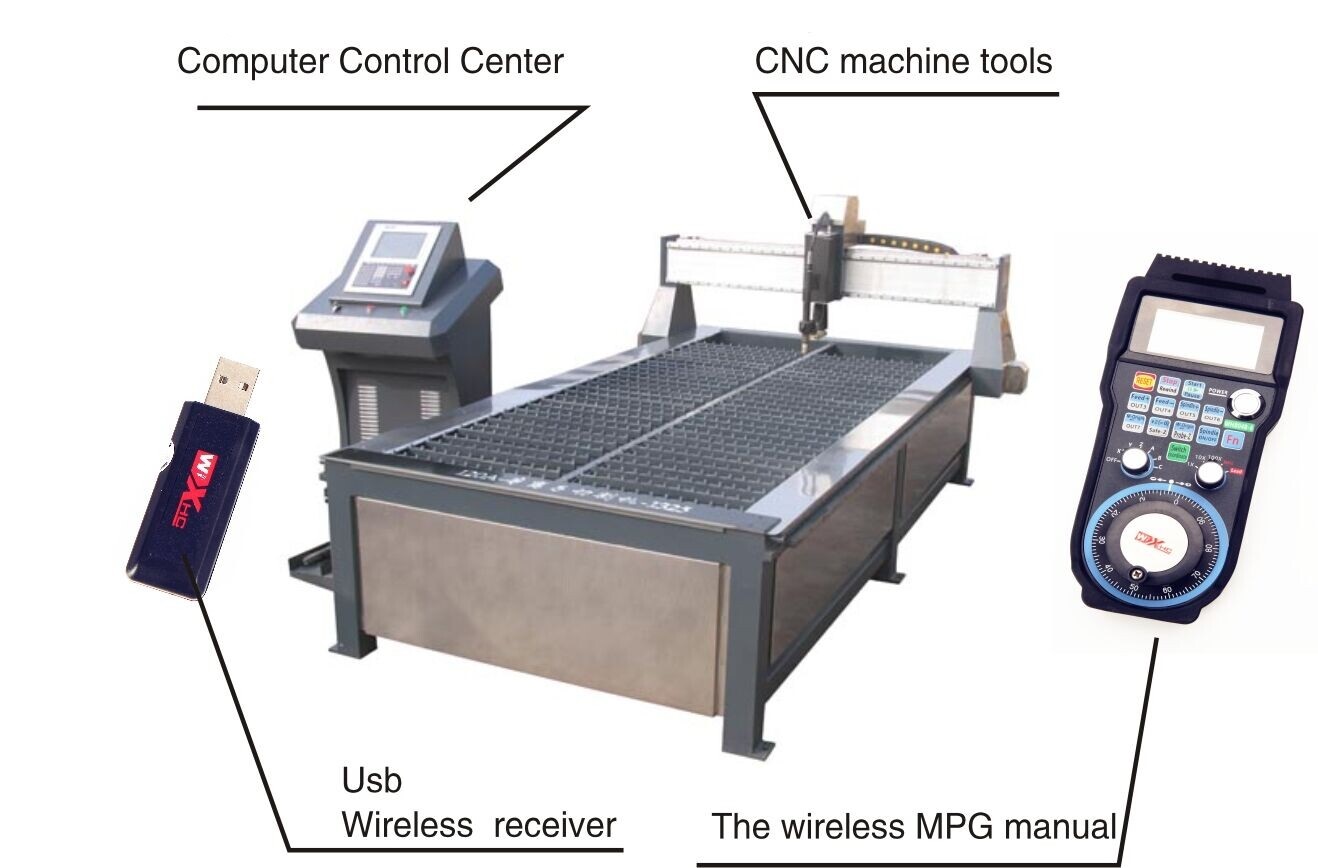

6-Axis MPG:
Features:
- Adopt frequency hopping transmission, strong anti-interference ability
- Using 433MHZ, ISM wireless FR transmission technology, transmit power 10DB, receive sensitivity -98DB.
- With 32 frequency hopping channels, each channel interval 1MHZ.
- Intelligent wireless technology, automatic frequency hopping, automatic power saving, automatic to learn ID code .
- Frequency hopping transmission technology, the same room, can support 32 sets of equipment at the same time, do not affect each other
- LCD display
- Display Y Z A X axis of the mechanical coordinates and workpiece coordinates.
- Show the spindle speed, the value of the feed rate.
- Dot matrix LCD with backlight
- Axis selection, power band switch control
- Axis select band switch to achieve the electronic hand wheel off and the corresponding X Y Z A B C each axis function of the choice of control
- The choice of the step distance value is realized by selecting the switching value band, which is simple and convenient.

Application:
For Windows: All Mach3 CNC

Parameters:

- Communication channel: ISM, 433MHZ
- Power: 2* AA alkaline batteries
- Wireless transmission range: 40 meters without obstacle
- Encoder: 100PPR
- Button: 13
- Transmit power: 10DB
- Acceptance sensitivity: -98DB
- Maximum axis: 6 axis
- Display screen: dot matrix LCD backlight display screen
- Material: PC and ABS material, good resistance to heat and toughness, and a silicone sleeve protection
