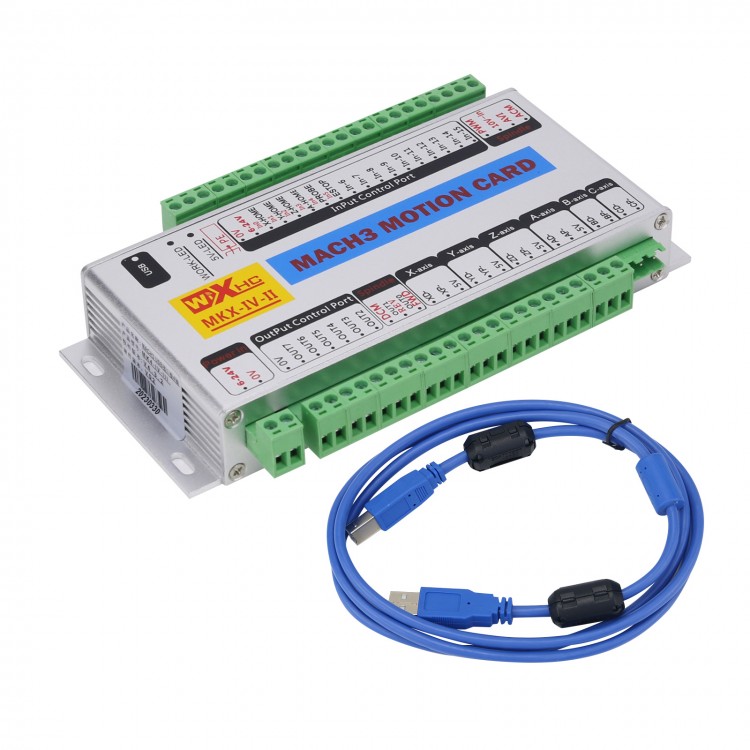

MK4-IV Mach3 Motion Card 4-sAxis USB Motion Controller 2MHz CNC Breakout Board for Window 7 & 10

Availability: In stock, usually dispatched in 1 business day

  • Price:$158.70
  • Price in reward points: 1587 Reward Points: 16
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $155.53 $152.35 $147.59 $141.24 Contact US
Quantity:

MK4-IV Mach3 Motion Card 4-sAxis USB Motion Controller 2MHz CNC Breakout Board for Window 7 & 10

Description:

MK4-IV is the latest generation 4-axis motion control card. Its maximum step-pulse frequency is 2000KHz, with more stable and better performance.

Features:
- Dual-Processors, for ARM and FPGA , more processing power
- Support all versions of Mach3 (can't work with Mach4)
- Work under 32-bit operating system for Windows (not for Mac OS)
- USB jack does not need to install the driver. Just plug and play under all versions for Windows
- Full support USB hot-swappable, USB connection status monitoring at any time. Under Mach3 working state, USB cable unplugs and then plugs in, but also the normal connection
- Supports 4-a xis linkage
- Maximum step-pulse frequency is 2 MHz. It can connect servo driver and stepper driver
- The indicator light indicates various working status, such as USB connection, Mach3 connection and so on
- 16 inputs
- Onboard isolated power supply , not requiring external power supply
- All IO port fully isolated, featuring strong anti-interference and  stable performance
- Support spindle speed PWM output; support spindle pulse and direction output; support spindle speed output from 0 to 10V analog voltage
- Support XHC series of wireless electronic mach3 MPG , such as WHB04 MPG
- With an aluminum shell to effectively shield interference and ensure stable and reliable performance

Specifications:
- CPU: Dual-Processors, for ARM and FPGA
- Axis output control: Axis: 4-axis; Drive Current: Isolated open collector output; 5V, 20mA; Drive: Pulse + direction output; Output frequency: 2000KHZ (=2MHz); Isolation Voltage: 3.5KV
- Spindle inverter output: Analog voltage output: 0-10V; PWM output: 5V, 1KHZ, Duty; 0-100%. Pulse + direction output: 5V, 15HZ to 4 KHZ
- Spindle speed input: Input: Isolated input, 5V pulse signal; Isolation Voltage: 3.5KV
- 8 output: Drive Current: Isolation: 50mA, 25V; Isolation Voltage: 3.5KV
- 16 input: Input Current: Isolated inputs, 5 mA, maximum voltage 25V; Isolation Voltage: 3.5KV; Mach3 Port Position: P1 Port
- USB interface: Complies with USB2.0 standard
- Size of motion control card: 184 x 110 x 30mm/7.2 x 4.3 x 1.2"

Applications:
- For laser, plasma, and flame cutting machines
- For wood, advertising, and marble CNC routers
- For milling machines
- For automatic production equipment and automatic welding machines

Package Included:
- 1 x Mach3 Motion Control Card
- 1 x USB Cable
- 1 x English Manual

Note:
- Please contact us for software after purchasing. Thank you!
