6 in 1 Mini Classic Bench Driller Wood Metal Lathe Milling Machine Jig-saw Grinder

6 in 1 Mini Classic Bench Driller Wood Metal Lathe Milling Machine Jig-saw Grinder

penter. Model. Decoration. Electric. Toys. Car models circuit board and so on. Classic Lathe, Best quality, 6 Tools in 1.

For Home DIY Use

Description:
- Headstock speed: 2,000rpm
- Motor input: 12VDC
- Max. Cutting diameter: 45mm(bigger diameter is possible with intermediatepiece
- Center distance: 135mm(with accessories extra long machine bed can longer to 360mm)
- Material: Carbon steel, Aluminum, ABS
- All types of wood (also hard wood) can be processed
- Recommended types of wood: Lim wood, birch, maple, pear tree, cherry tree (medium hard), beech tree, oak (hard). also Can process integrated circuit,acrylics,wood,plastic,gold,silver,copper,steel,aluminum,and so on.
- Every suitable chisel and gouge can be used

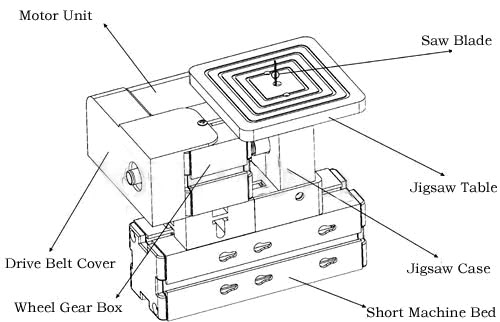

Technique Data:
1) Motor speed: 20,000rpm
2) Headstock speed: 2,000rpm
3) Support power: 14.5VDC/2A/29W, Switching Adapter input 100V-240V
4) Table size: 90 x 90mm
5) Stroke of the jigsaw: 4mm
6) Material: Carbon steel, Aluminum, ABS
7) Max. thickness of cut: hardwood: 4mm, polywood: 7mm, softwood: 18mm, sheet metal: 0.5mm, plexi-glass: 2mm
8) Maximum measurements on 3D (L/W/H cm): 15/10/14
9) Net weight: 0.72kg
10)It is specially designed that it is very safe when operating

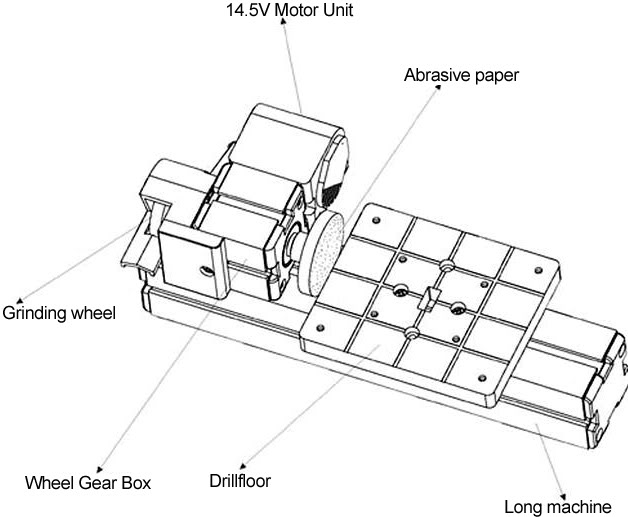

GRINDER
Technique Data:
1) Motor speed: 20,000rpm
2) Headstock speed: 2,000rpm
3) Motor input: 14.5VDC / 2000mA
4) Material: Carbon steel, Aluminum, ABS
5) Can sanding paper: diameter 49mm, grain 100
6) Can process everything that is used in model making
7) Maximum measurements on 3D(cm L/W/H): 28/5/10
8) Net weight: 0.75kg

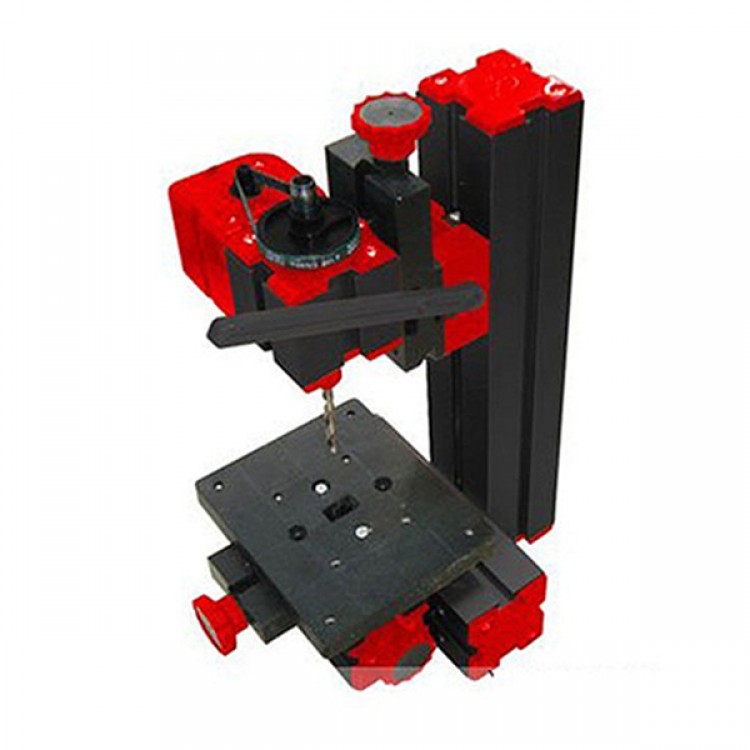

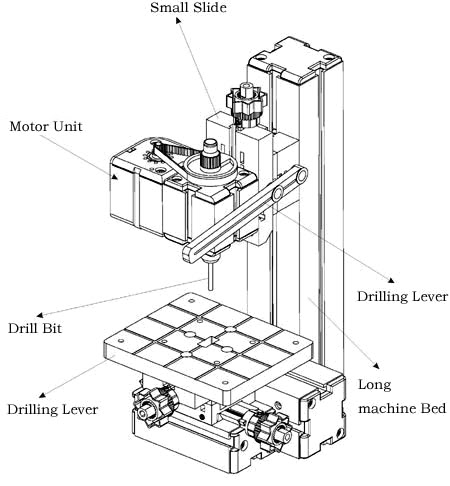

DRILLER
Technique Data:
1) Motor speed: 20,000rpm
2) Headstock speed: 2,000rpm
3) Motor input: 14.5VDC / 2000mA
4) Slide travel: 50 and 20 respectively
5) Stroke: 25mm
6) 8 collects from: 0.5 to 6 mm
7) Table size: 123 x 100mm
8) Working radius (distance between drill and machine bed): 71mm
9) Material: Carbon steel, Aluminum, ABS
10) Can process soft-aluminum, brass, copper, wood, plastics, other soft, colored and precious metals
11) Maximum measurements on 3D(cm L/W/H): 15/15/28
12) Net weight: 1.46kg

Miller
Technique Data:
1) Motor speed: 20,000rpm
2) Headstock speed: 2,000rpm
3) Motor input: 14.5VDC / 2000mA
4) Slide travel: 30 and 50mm
5) Collets from 0.5-6mm milling cutter
6) Vice capacity: 25 x 25mm
7) Material: Carbon steel, Aluminum, ABS
8) Can process hard wood strips (beech-tree, nut-tree), wooden bars (max. 20mm diameter)or plastic and soft metal.
9) Do not touch the turning tools, it is very dangerous
10) Maximum measurements on 3D(cm L/W/H): 28/18/15
11) Net weight: 1.45kg



Wood Lathe
Technique Data:
1) Motor speed: 20,000rpm
2) Headstock speed: 2,000rpm
3) Motor input: 14.5VDC / 2000mA
4) Max. Cutting diameter: 45mm (bigger diameter is possible with intermediatepiece)
5) Center distance: 135mm (with accessories extra long machine bed can longer to 360mm )
6) Material: Carbon steel, Aluminum, ABS
7) All types of wood (also hard wood) can be processed
8) Recommended types of wood: Lim wood, birch, maple, pear tree, cherry tree (medium hard), beech tree, oak (hard)
9) Every suitable chisel and gouge can be used
10) Maximum measurements on 3D(cm L/W/H): 28/10/10
11) Net weight: 1.28kg



Metal lathe
Technique Data:
1) Motor speed: 20,000rpm
2) Headstock speed: 2,000rpm
3) Motor input: 14.5VDC / 2000mA
4) Tree 3-jaw chuck (self-centering)
5) Max. Cutting diameter: 20mm(bigger diameter is possible with intermediatepiece)
6) Center distance: 135mm(with accessories extra long machine bed can longer to 360mm)
7) Material: Carbon steel, Aluminum, ABS
8) Can process soft-aluminum, brass, copper, wood, plastics, other soft, colored and precious metals
9) Maximum measurements on 3D(cm L/W/H): 28/10/10
10) Net weight: 1.35kg
