6-Way STM32 Servo Controller Board Open Source Support Secondary Development

Availability: Out Of Stock

  • Price:$24.76
  • Price in reward points: 248 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $24.26 $23.77 $23.03 $22.04 Contact US
Quantity:

6-Way STM32 Servo Controller Board Open Source Support Secondary Development

16 Advantages:

1. Provide schematics and source code

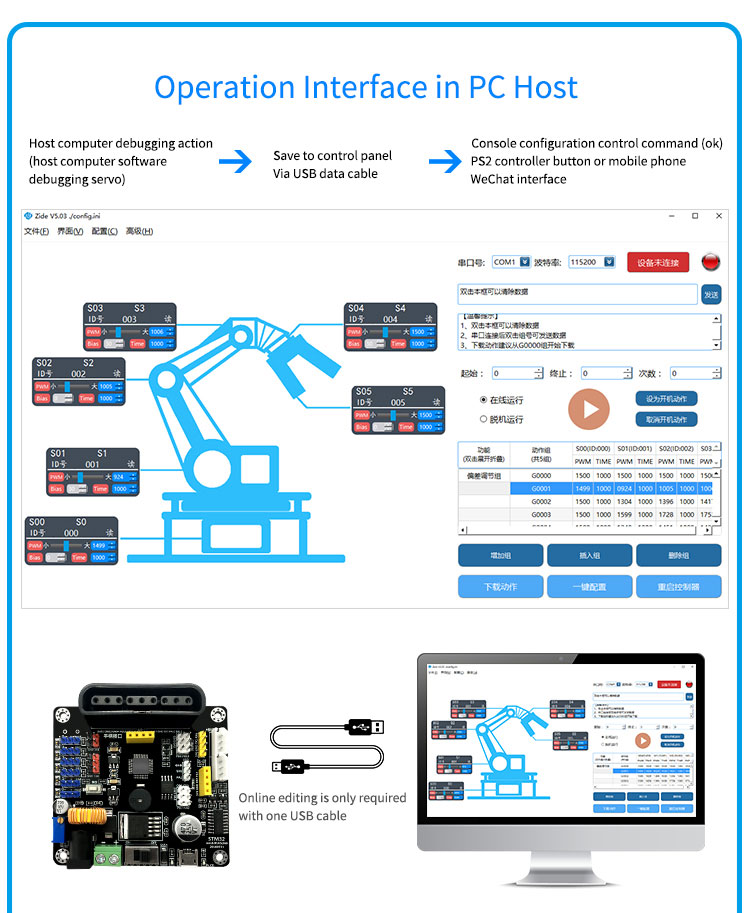

2. PC graphical programming
3. TTL serial communication
4. Built-in high power voltage regulator module
5. Support 6-way servo control (over-current protection)
6. 2-way bus steering gear (8 servos can be connected in series)
7. USB one-click download
8. Low voltage alarm
9. Online commissioning / offline operation
10. Can store 10,000+ actions
11. 5-way sensor expansion
12. IIC equipment development
13. Support External PS2 handle and Bluetooth module
14. Support External WiFi camera and MP3 module

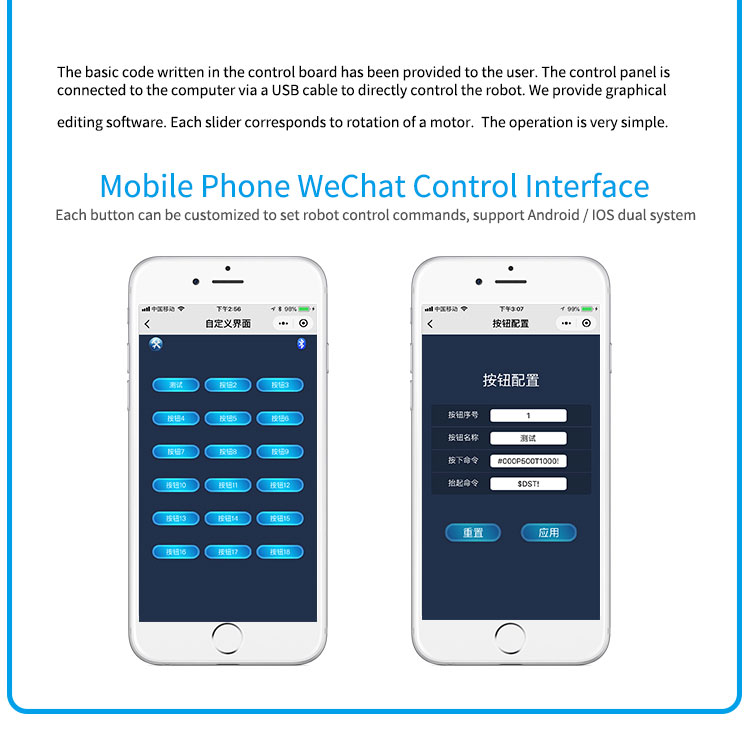

15. Provide WeChat applet
16. Provide detailed study materials

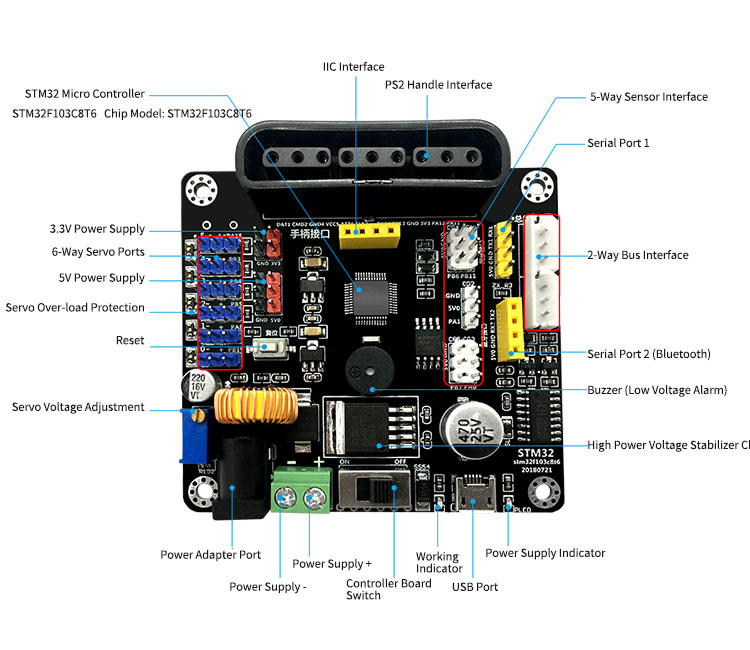

Parameters:
- Item Name: Open Source STM32 Servo Controller Board
- Weight: 41g
- Board Size: 76 x 66mm
- Hole Size: 64 x 58mm
- Power Supply: 6-8.4V
- Stabilizing Voltage: Built-in high power voltage stabilizer (adjustable)
- PWM Servo Port: 6-Way (with over-current protection)
- Bus Servo Port: 2-Way (4pcs can be connected in series for each channel)
- Connect External PS2 Handle: Support
- Connect Bluetooth Module: Support
- Connect MP3 Module: Support
- Connect WiFi Camera Module: Support
- Interior Power Supply Port: 5V & 3.3V
- Chip: STM32F103C8T6
- Open Source: Provide schematics and source code
- PC Graphical Programming: Support
- C Language Programming: Support
- USB One-click Download: Support
- Online Commissioning: Support
- Offline Operation: Support
- Store Actions: 10, 000+
- Wechat Applet: Provided

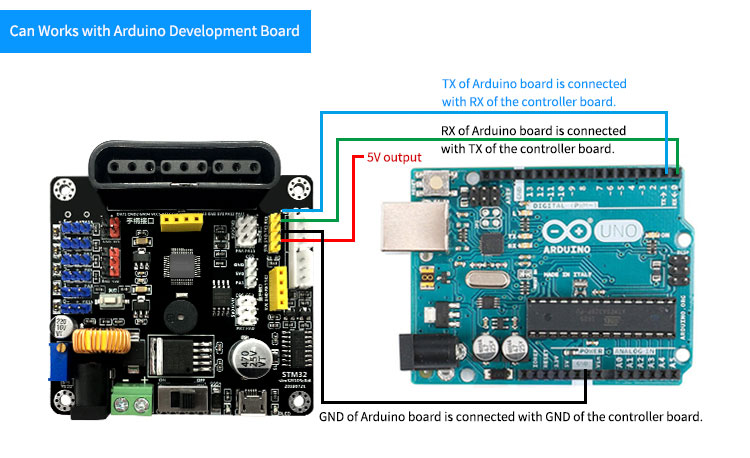

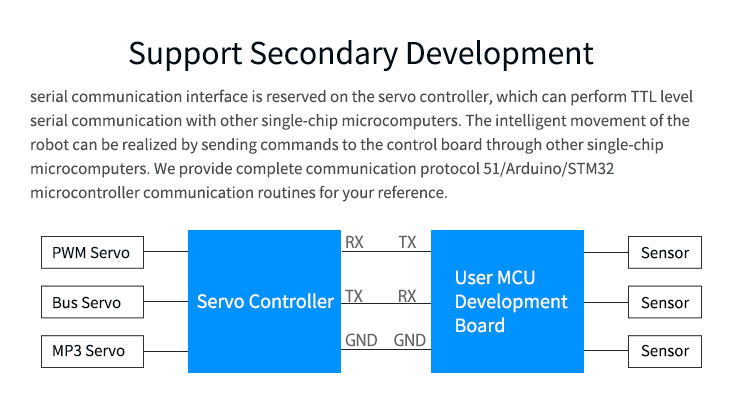

- TTL Serial Communication: Support
- Low Voltage Alarm: Support
- Sensor Port: 5-Way
- IIC Equipment Port: 1-Way

Package Included:
- 1 x 6-Way Servo Controller Board
