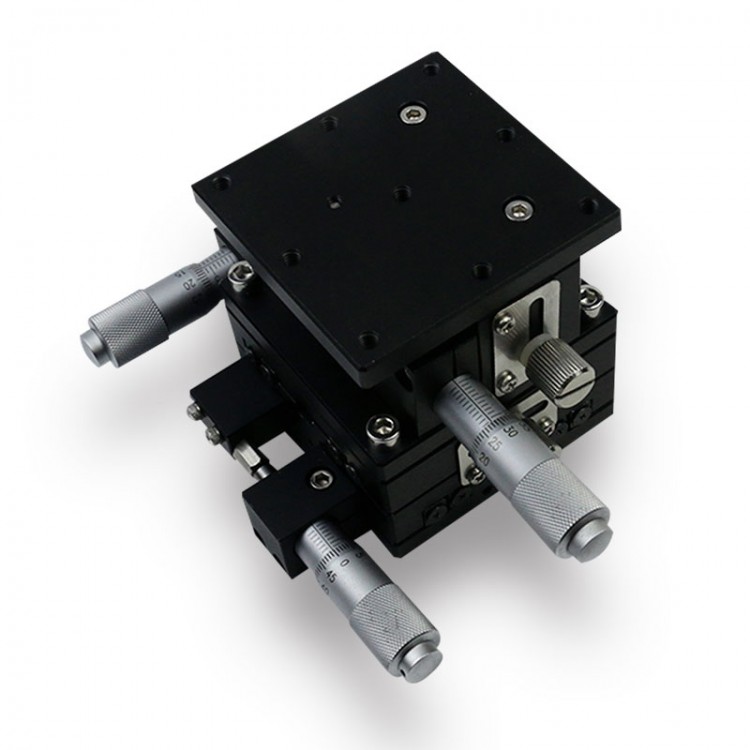

60*60mm XYZ Axis Manual Displacement Platform High Precision Sliding Table XYZ60-L
Features:
- Using cross roller guide for high accuracy, smooth movement
- Lightweight: its main material aluminum alloy makes it suitable for built in other devices
- Drive Mode: micrometer drive mode for extra accuracy
Parameters:
- Model: XYZ60-L
- Direction of Movement: X, Y, Z Axis
- Adjustment: Front &Rear, Left & Right, Up & Down Fine Adjustment
- Material: Aluminum Alloy (Surface black anodizing)

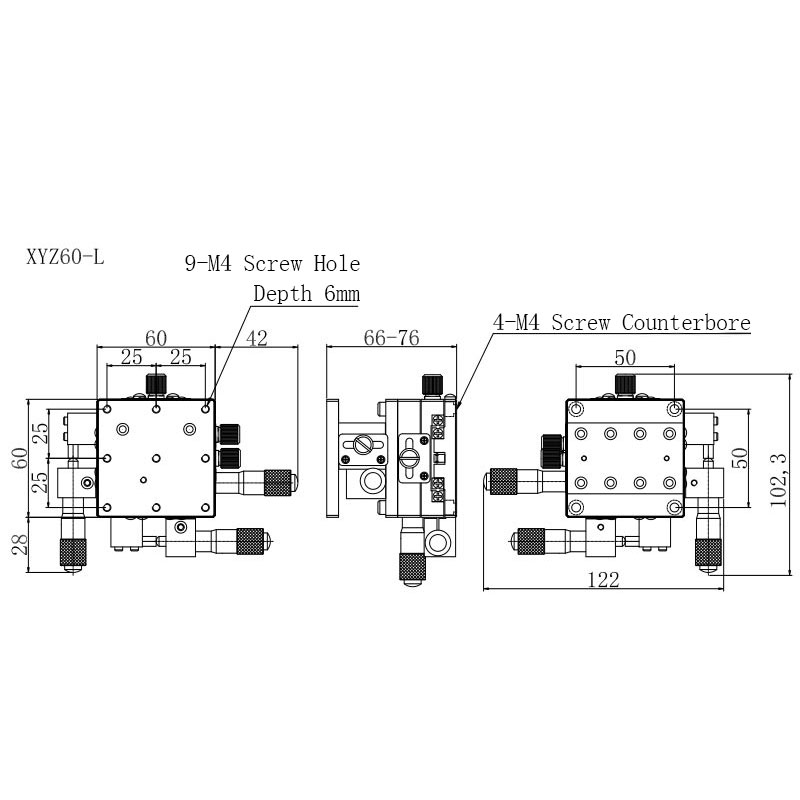

- Dimension: 60 * 60mm
- Rail Type: V-rail (Cross Roller Guide)
- Travel: XY Axis: ±6.5mm; Z Axis: 10mm
- Table Thickness: 66mm-76mm
- Minimum Scale: 10μm
- Load: 29.4N (3kgf)
- Accuracy: 10μm
- Linearity: 5μm
- Weight: 0.78kg
Package Included:
- 1 x Manual Displacement Platform
