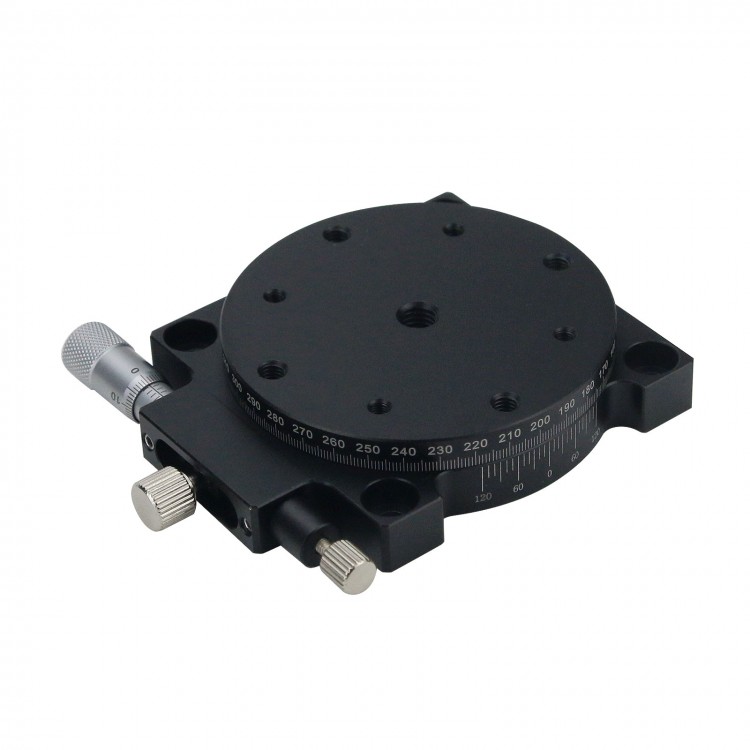

R Axis RS60-L/RS60-R Manual Rotation Trimming Platform Linear Tuning Stage Sliding Table 60mm

Availability: In stock, usually dispatched in 1 business day

  • Price:$42.91
  • Price in reward points: 429 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $42.05 $41.19 $39.91 $38.19 Contact US
Quantity:

R Axis RS60-L/RS60-R Manual Rotation Trimming Platform Linear Tuning Stage Sliding Table 60mm

Specification:

Item Type: Linear Stage Trimming Platform
Model: RS60-L/RS60-R optional
Function: coarse adjustment 360 degrees, rotation precision adjustment ±5°
Material: aluminum alloy (black anodized surface)
Table Diameter: 60mm
Moving Rail: running-in installation
Drive Mode: micrometer
Cursor Minimum Reading: vernier scale 0.1°
Micrometer Minimum Movement Reading: 0.015°
Load: 29.4N (3kgf)
Accuracy: 0.01m
Surface Run-out: 0.02mm
Parallelism: 0.03mm
Scope of Application: production machinery, testing equipment, optical experimental measurement, fine-tuning displacement, precision positioning, quantitative movement and so on.

Feature:
1. It can be used in production machinery, testing equipment, optical experimental measurement, fine-tuning displacement, precision positioning, quantitative movement and so on.
2. Main body aluminum alloy material, black anodized surface, scratch-resistant, anti-drop, anti-corrosion.
3. Nickel plated locking screw, designed with counterbore, nickel plated fine adjustment knob, carbide side , durable.
4. The driving method is a micrometer, which can realize manual coarse adjustment of 360 degrees, fine adjustment of rotation ± 5 degrees.
5. High precision, movement, suitable to be built in other devices.

Package List:
1 x Linear Stage Trimming Platform

Note: RS60-L/RS60-R optional, please choose the one you need.
