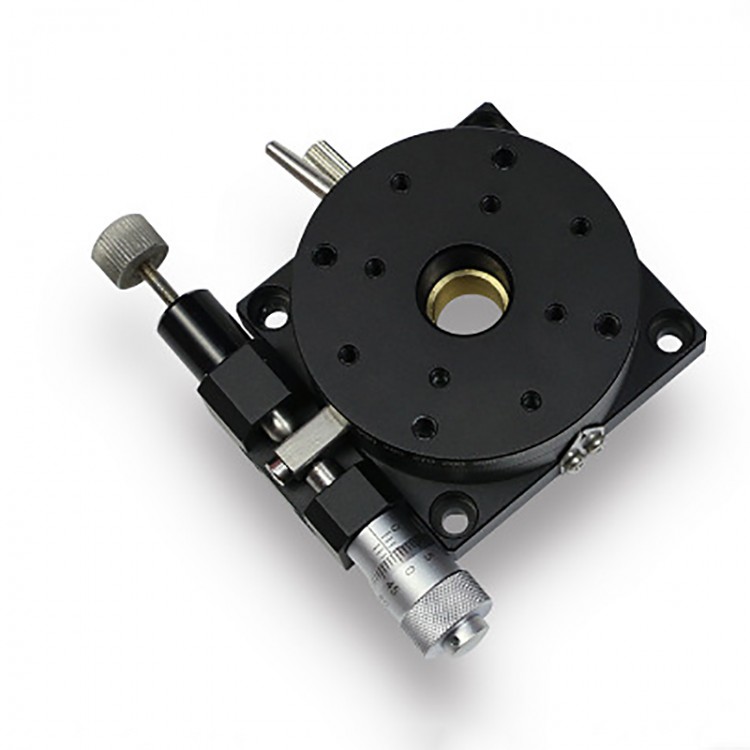

R Axis RSP60-L/RSP60-R Linear Stage Sliding Table Manual Rotation Platform Tuning Table 60mm

R Axis RSP60-L/RSP60-R Linear Stage Sliding Table Manual Rotation Platform Tuning Table 60mm

Specification:
Item Type: Linear Stage Sliding Table
Model: RSP60-L/RSP60-R optional
Function: coarse adjustment 360° rotation, precise adjustment of ±5°
Material: aluminum alloy (black anodized surface)
Table Diameter φ: 60mm
Drive Mode: micrometer
Load: 29.4N (3kgf)
Vernier Minimum Reading: vernier scale 0.1mm
Concentricity: 0.02μm
Parallelism: 0.02m
Scope of Application: production machinery, testing equipment, optical experimental measurement, fine-tuning displacement, accuracy positioning, quantitative movement, etc.

Feature:
1. The main body is made of the same density aluminum alloy sheet, the surface is hard black anodized, durable, scratch-resistant, anti-fall and anti-corrosion。
2. Nickel-plated locking screws and nickel-plated coarse and fine adjustment knobs, carbide side heads, tighter locking, no rust in complex environments, more durable and corrosion resistant。
3. High-strength bearing steel rails for better stability and wear resistance。
4. The surface of the guide rail is electroplating processing for using in a complex environment, which is resistant to corrosion and does not rust.
5. Suitable for production machinery, testing equipment, optical experimental measurement, fine-tuning displacement, accuracy positioning, quantitative movement, etc.
6. Manually driven by a micrometer, it can achieve a coarse adjustment of 360 degrees, and a fine adjustment of rotation by ±5°.

Package List:
1 x Linear Stage Sliding Table

Note: RSP60-L/RSP60-R optional, please choose the one you need.
