| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $217.42 | $212.99 | $206.33 | $197.46 | Contact US |

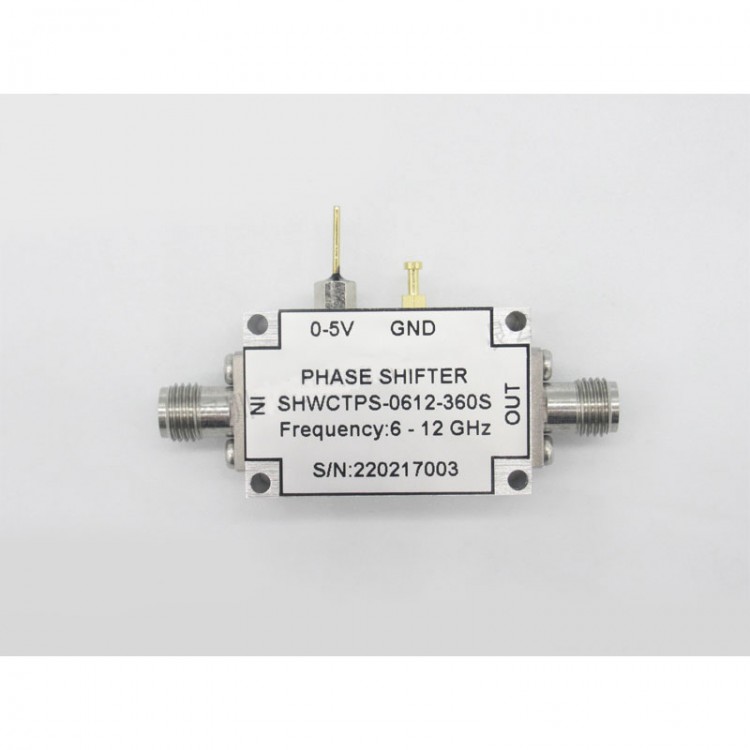

6000-12000MHz 0-600 Degree RF Electrically Controlled Analog Phase Shifter with SMA Female Connector
Specification:
- Frequency range: 6 - 12GHz
- Insertion loss: 7dB
- Control voltage: 0 - 5V
- Input VSWR: 2.0 typ.
- Output VSWR: 2.0 typ.
- Phase range: 0 - 600°
- Characteristic impedance: 50ohms
- Operating temperature: -40℃ to 85℃
- Storage temperature: -55℃ to 100℃
- Surface finishing: wire drawing processing
- RF input power: 24dBm
Package Included:
- 1 x Phase Shifter
