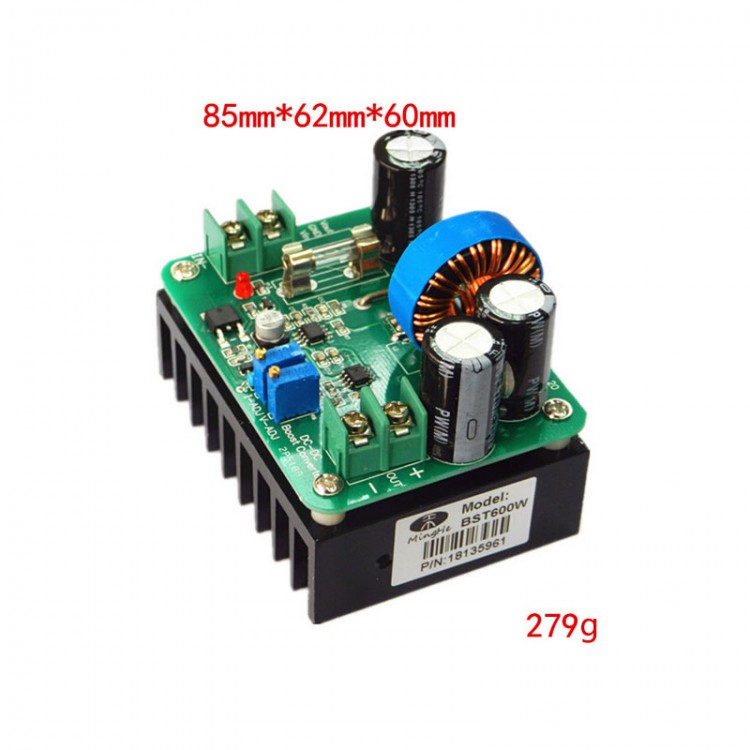

600W DC-DC Boost Converter 10v-60V to 12V to 80V Step UP Power Supply Module
Features:
- 100% brand new and high quality
- Adopt highly customized radiator, rational design (Radiator floor thickness 5mm, tooth height 21mm, length 85mm, width 63mm)
- Integrated design of radiator and step-up panel, easy to use and install
- Using 27mm iron silicon aluminum magnetic ring, 1mm double wire wound inductors, high-quality filter capacitor
- Widely used in adjustable output vehicle power supply DIY, universal car laptop power supply, power supply for electronic devices, etc.
Specifications:
- Input Voltage: DC 12V-60V
- Input Current: 15A (MAX)
- Output Voltage: DC 12V-80V
- Output Current: 10A (MAX)
- Output Power: Effective Power P = Input Voltage V * 10A
- Conversion Efficiency: Up to 95% (input voltage and current; output voltage and current affect the conversion efficiency)
- Working Temperature: -40℃ to 85℃
- Operating Frequency: 150Hz
- Short Circuit Protection: Fuse
- Over-Current Protection: Yes
Package Included:
- 1 x Step Up Module
