900W DC-DC Boost Converter Module Step Up Mobile Power Supply 8-60V To 10-120V 15A CC CV

900W DC-DC Boost Converter Module Step Up Mobile Power Supply 8-60V To 10-120V 15A CC CV

Description:
900W DC-DC boost module is a fully digital display NC boost module. Features small size, high power, high efficiency, working stability. Joined the high-speed microcontroller precision measurement and calculation, it can accurately adjust the output voltage and current. Built-in 10 groups memory location can be stored at any time, call up parameters, convenient to use. Equipped with four eight LED digital tube, it can display the voltage, current, power, capacity and other parameters in real time. At the same time, this machine has an automatic output after power on, auto rotate function parameters can be turned on or off as needed.

Features:
- Adopts advanced microprocessors, it can precisely regulated output voltage and current
- With memory saving function, it can store 10 groups of parameters, and can be freely stored, transferred out
- High-quality power devices, with the periphery of precision op amps CV and CC loop configuration, which greatly improves the overall performance of the module
- With an input voltage protection function
- Constant voltage, constant current function
- 4-digit digital tube display real-time parameters such as output voltage, current, power and capacity
- Auto/Manual switch to display parameters like voltage, current, power and capacity
- Designed with output CV CC indicators, it is convenient to check the real-time working status
- You can set whether to automatically output after power
- One button to save the current set of voltage and current values

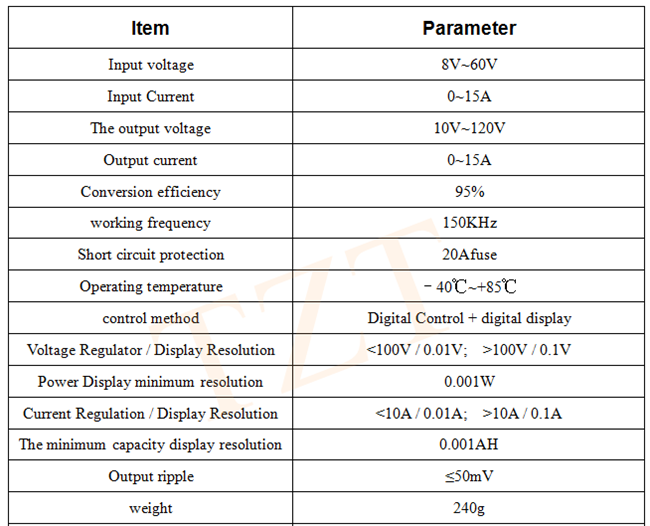

Specifications:

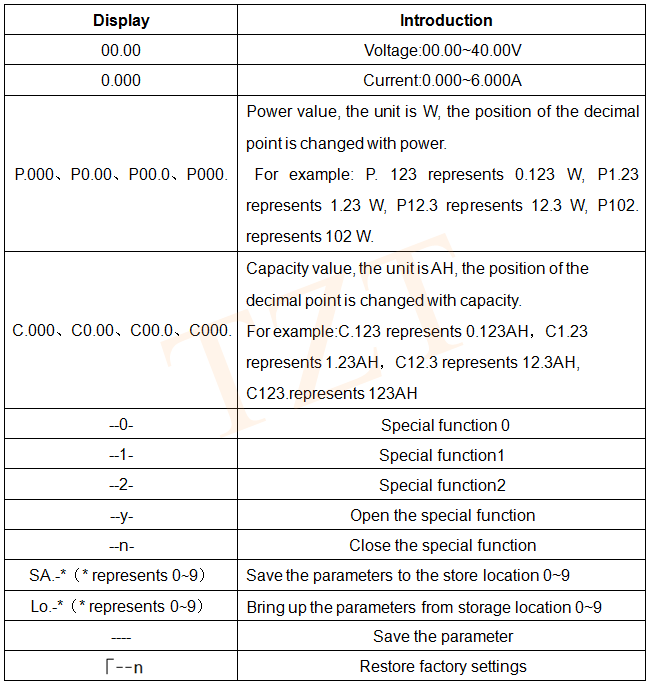

Display Introduction:


Package Included:

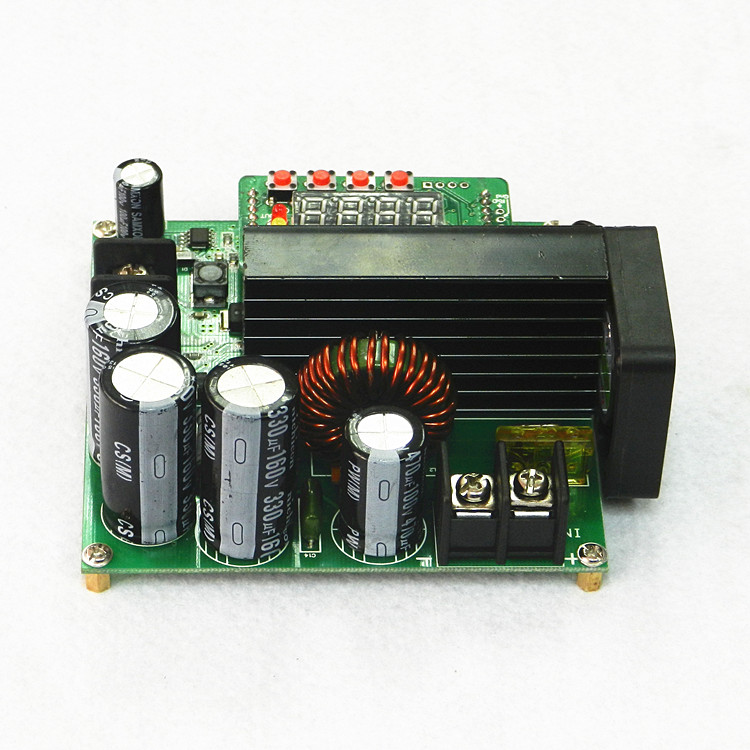

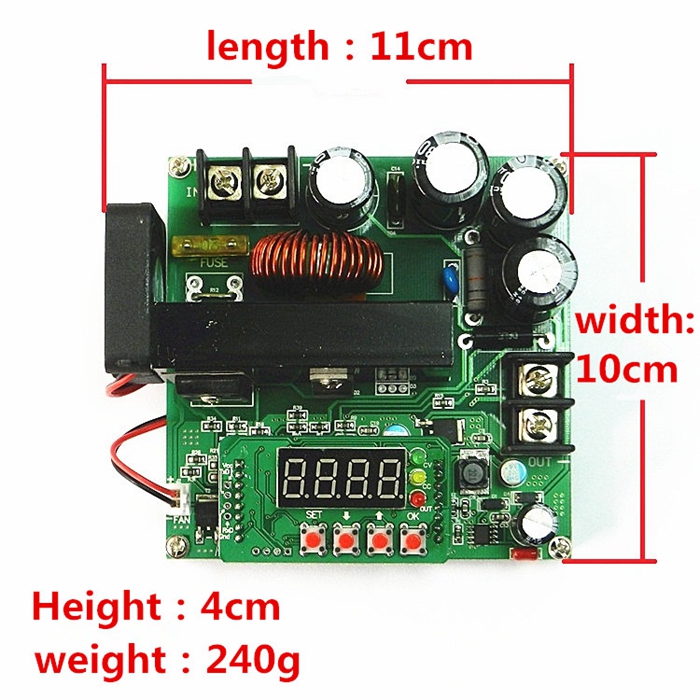

- 1 x 900W DC-DC CNC Boost Power Supply Module

Note:
1．The module is a step-up module, VOUT≥VIN. To the module is powered, in the absence of output, the output terminal voltage, the output terminal is equal to the input voltage; if the programmed output voltage lower than the input voltage, the voltage output after the output terminal is also equal to the input voltage, which is a normal phenomenon, when using the input voltage must be lower than the output voltage or the rated voltage of electrical and electronic equipment.
2. High-power electrical appliances to power, turn off the automatic output function, and then connect the input and output, and then press the "OK" button output, and wait until the voltage rises to a set voltage, and finally open appliances.
3. To charge the battery, turn off the automatic output function, setting the appropriate charging voltage and current, connect the battery, and then press the "OK" button output, you can charge the battery.
4. The effective power P = input voltage V * 15A, nominal 900W maximum power module means that under certain operating conditions, at different input voltage, the maximum output power is limited by the maximum input current limit declined. such as：
The Input voltage of 20V: Maximum output power P = 20V * 15A = 300W

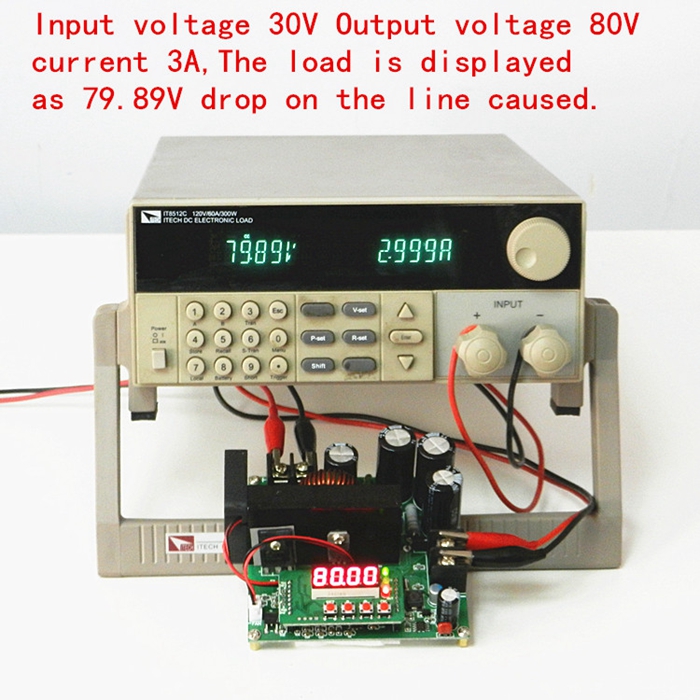

The input voltage is 40V: Maximum output power P = 40V * 15A = 600W

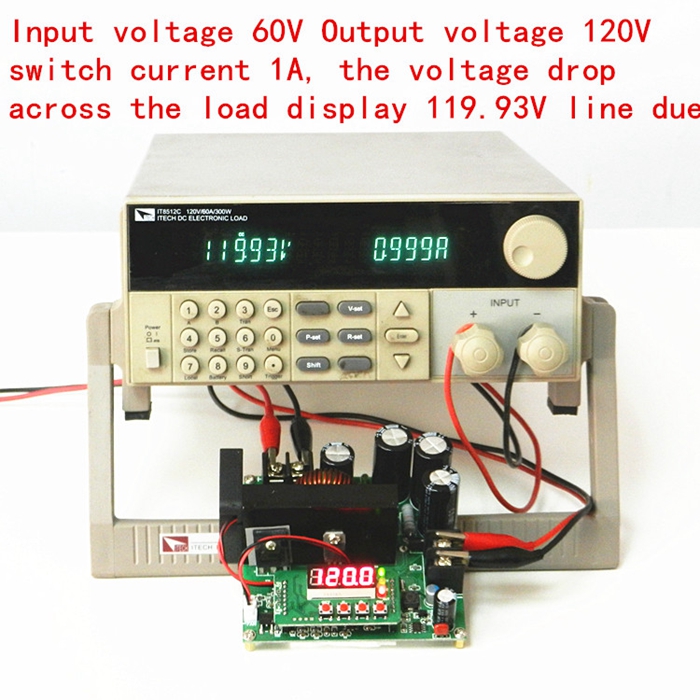

The input voltage is 60V: Maximum output power P = 60V * 15A = 900W
5. The conversion efficiency: about 95% (input voltage, current and output voltage and current affect the conversion efficiency)
