BT900W 12V~130V 15A DC Regulated Power Supply CC Adjustable Power Supply Step Up Module Boost Module

BT900W 12V~130V 15A DC Regulated Power Supply CC Adjustable Power Supply Step Up Module Boost Module

Attention:
The input end of BT900W boost power supply is divided into two voltage input ranges. When the jump cap is in the low voltage range, inputting high voltage will damage the circuit. When the jump cap is in the high voltage range, it will not work when inputting low voltage, please operate with caution.

Description:

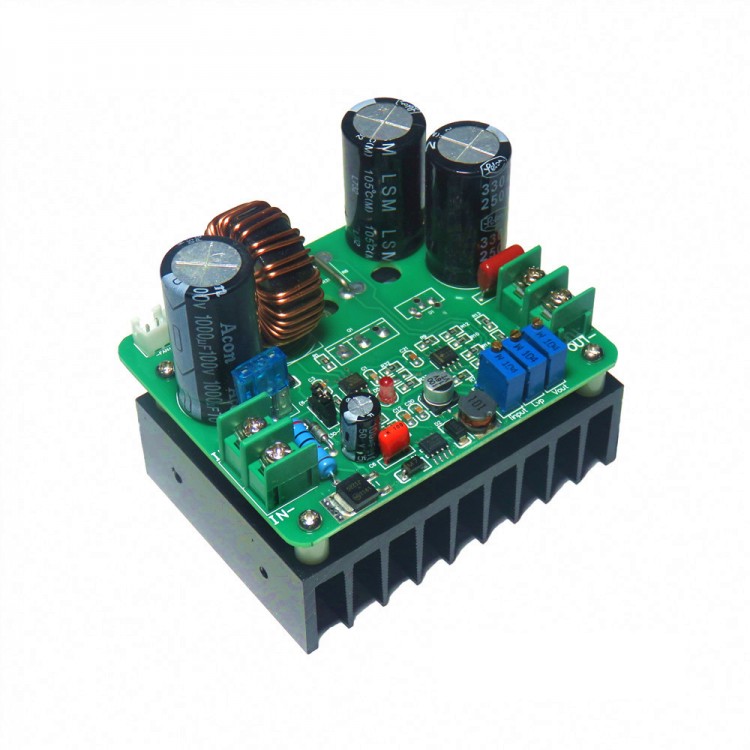

BT900W is a DC-DC boost module with wide voltage input. Its output voltage and current are adjustable. It adopts the integrated design of heat sink and booster board. Using 1mm double-wire wound inductor and high-quality filter capacitor, the quality of the power supply is better. There is power working indicator on the board. With potentiometers to adjust input under-voltage, output voltage, and input current. Output voltage and current can be adjusted at any time. The input and output use 8500 terminals, which have strong current capacity and ensure long-term reliable operation.

Features:
1. Wide range of input and output voltage. Input voltage 8V~30V and 30~60V; output voltage 12V~130V
2. Ultra-low input and output differential voltage
3. 1mm double-wire wound inductor and high-quality filter capacitor to ensure power supply quality
4. With potentiometers to adjust output voltage and current
5. With input under-voltage protection function, it is especially suitable for batteries and solar panels to prevent over-discharge of the battery and the situation that the solar panel voltage is too low to start the module

Technical Parameters:
- Input voltage: 8V-30V; 30V-60V
- Input Current: 15A Max.
- Output voltage: 12V~130V adjustable
- Output current: 15A Max.
- Output Power: 900W Max.
- Output ripple: <50mV
- Conversion efficiency: about 85%
- Voltage and current adjustment method: potentiometer
- Short circuit protection: 15A fuse
- Cooling method: heat sink and natural air cooling
- Wiring method: 8500 terminal block
- Product Dimensions: 85.0 x 69.5 x 70.7mm/3.3 x 2.7 x 2.8" (LxWxH)
- Net weight: 275G/0.6LB

Package Included:
- 1 x Power Supply Module

Note:
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
- Battery is not included.

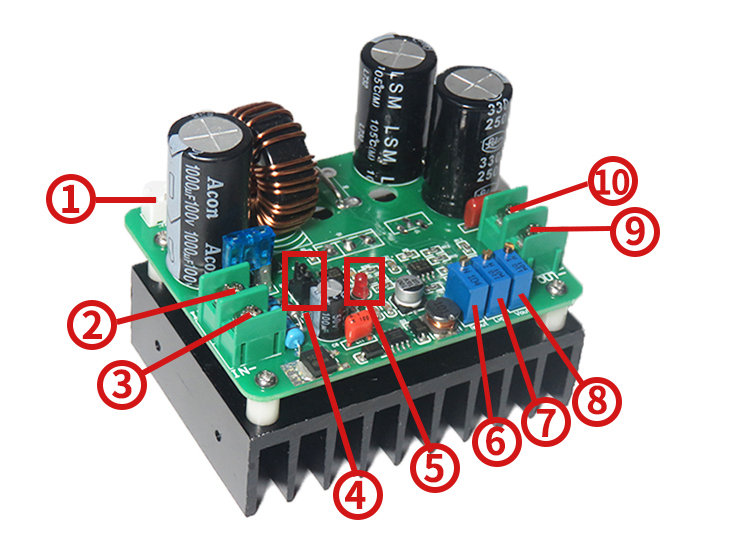

1. 12V fan interface
2. Positive pole of input
3. Negative pole of input
4. Switch input high and low voltage
5. Input under-voltage indicator
6. Input current potentiometer
7. Potentiometer adjusts the under-voltage value
8. Potentiometer adjusts output voltage
9. Negative pole of output
10. Positive pole of output

Working Status:

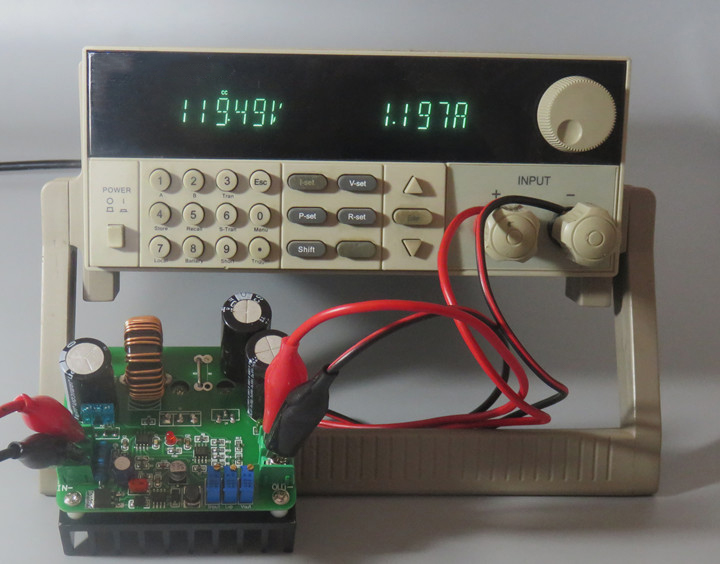

1. Output 120V 1.2A


2. When input under-voltage protection works, it will stop boosting and the under-voltage indicator lights up
