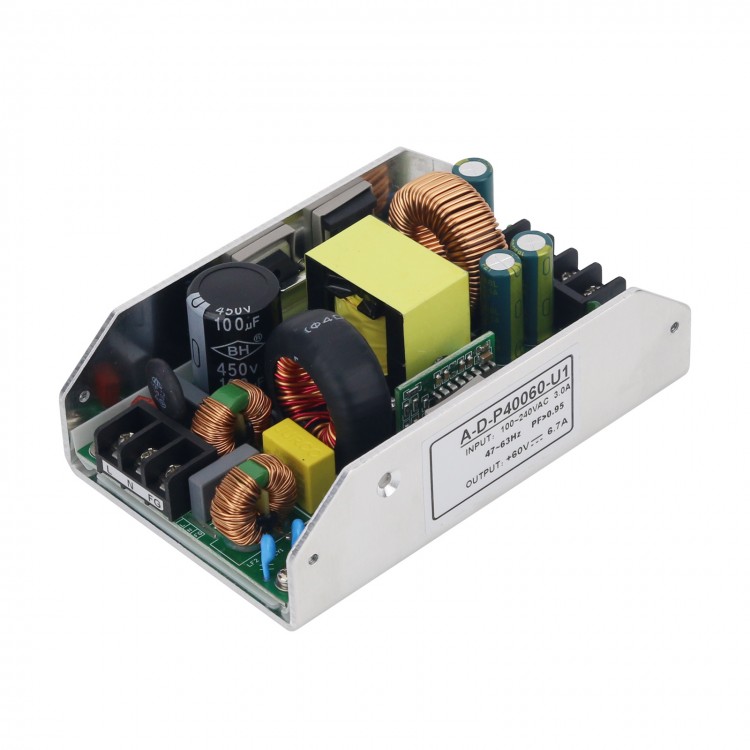

60V 6.7A 400W Switch Power Supply for Power Amplifier High Performance DC Regulator Power Supply Module
Specification:
- Dimension: 127 X82X 45MM
- Weight: 400g
- Heat dissipation mode: natural cooling
- Output ripple: less than 150mV
- Total output power: 400W × 40; with PFC function, PF value > 0.98 × 41
- Output voltage adjustment range: 10%
- Incoming line stability: ±0.5%
- Load stability: ±1%
- Input voltage: 88 ~ 264VAC
- Output voltage: 60V 6.7A
- Start/rise/hold time: 2S, 500ms, 20ms; input voltage: 230VAC; output: full load
- Withstand voltage: input-output 1.5KVAC; input-case 1.5KVAC; output-case 500VAC
- Insulation resistance: input-output, input-case 500VDC /100MOmega;
- Working temperature/humidity: -20 ℃ ~ 60 ℃, 20% ~ 90% RH, no condensation
- Storage temperature: - 40 ℃ ~ 60 ℃
- Protection function: over temperature, over voltage, over current, over power
- Safety standard: GB4943, UL60950, EN60950
Package Included:
- 1 x Power Supply Module
Note:
- The power cable is not included.
