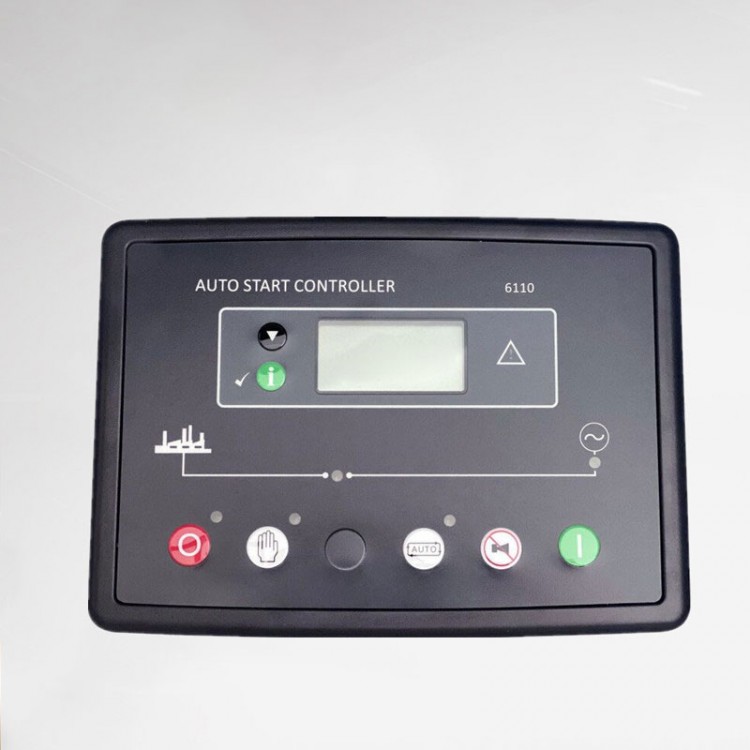

6110 AMF Control Panel AMF Generator Control Automatic Start Controller to Replace DSE6110

6110 AMF Control Panel AMF Generator Control Automatic Start Controller to Replace DSE6110

Description:
6110 single unit mains failure self-starting module is designed to work with electronic and non-electronic engines, providing advanced engine monitoring and protection functions.

This module includes a backlit LCD display that clearly shows the status of the engine at all times. It monitors frequency, voltage, current, oil pressure, coolant temperature and fuel quantity. It is also designed to display engine warning and shutdown status.

This module includes six inputs, including three analog inputs and six outputs. Two of the outputs can be configured in the magnetic probe version, while all six can be configured in the CANBUS version. The module can be configured via front panel programming or using DSE's Configuration Suite PC software.

New Functions:
- Low battery voltage startup
- Clock
- Scheduler

Standard Functions:
- CAN and magnetic probe versions
- PC and front panel configuration
- 6 digital inputs / 3 analog inputs
- 6 outputs (2 can be configured in magnetic probe version, or 6 can be configured in CANbus version)
- Three-phase generator and mains voltage monitoring
- Event log (10 items)
- Configurable timer
- Automatic shutdown or warning when a fault condition is detected
- Remote load or no-load start
- Engine warm up
- Advanced metering capabilities
- Engine hour counter
- Red light warning or shutdown
- Backlit LCD display
- Protective Solid State output (PSS)

Advantages:
- Power transfer between mains (grid) and generator
- Hour counter provides accurate monitoring and maintenance cycle information
- User-friendly settings and button placement
- Simultaneous monitoring of multiple engine parameters
- Modules can be configured to meet individual needs
- A wide range of engines can be specified
- Configuration using PC Suite software to simplify programming
- Provides advanced IP65/NEMA 12 waterproof protection when supplied with gaskets
- Free computer software

Manual Mode:
- The engine is started using the hand and start button on the front of the module.
- Once pressed, the module instructs the engine to start the warm-up routine and then starts the engine.
- To stop the engine, press the stop button on the front of the module.

Automatic Mode:
- Press the automatic button of the controller.
- The module's boot program process is activated by a remote boot input.
- The warm-up procedure will then start, and the engine will start.
- To stop the engine, please cancel the remote start signal or press the module's stop button.

Package Included:
- 1 x Module
- 1 x Bag of Accessories
- 1 x User Manual

Note:
- Battery is not included.
