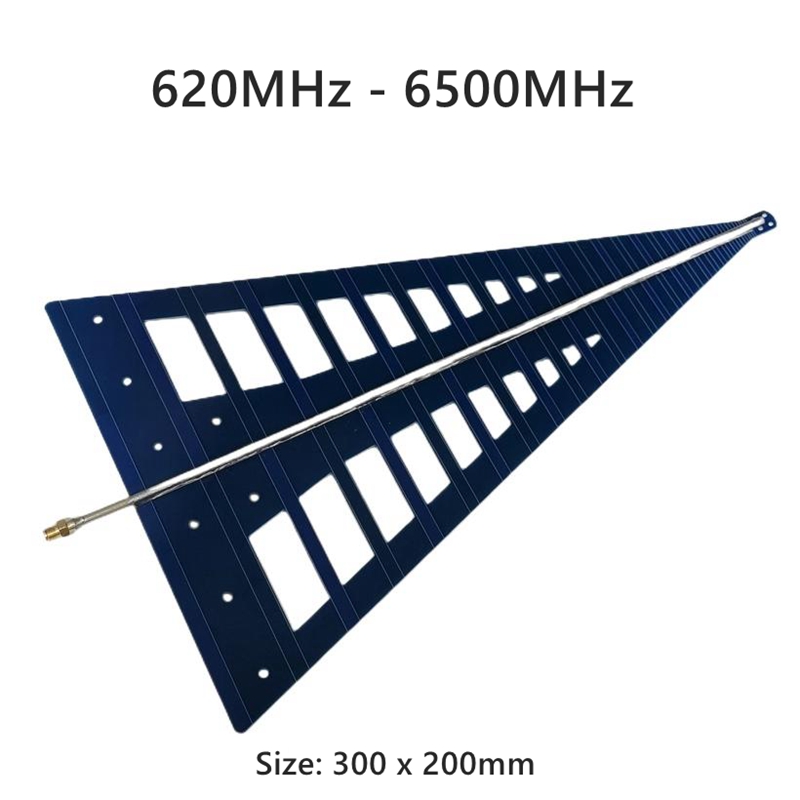

620MHz - 6500MHz UWB Dedicated Log Periodic Antenna Ultra Wideband High Gain Antenna (SMA Male Connector)

Availability: In stock, usually dispatched in 1 business day

  • Price:$36.19
  • Price in reward points: 362 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $35.47 $34.74 $33.66 $32.21 Contact US
Quantity:

620MHz - 6500MHz UWB Dedicated Log Periodic Antenna Ultra Wideband High Gain Antenna (SMA Male Connector)

Description:

- This antenna is a broadband, high gain logarithmic periodic antenna that can be used for direction finding, spectrum analysis, signal analysis, positioning, broadband measurement, direction finding, etc.
- It can provide directional gain of 6-7dBi in the frequency range of 620MHz-6500MHz. Standing waves below 2 provide continuous high field strength requirements for EMC testing, making it an ideal testing antenna.

Specification:
- Antenna bandwidth: 620MHz - 6500MHz
- Impedance: 50ohms
- Gain: 6±1dBi
- Polarization: linear polarization

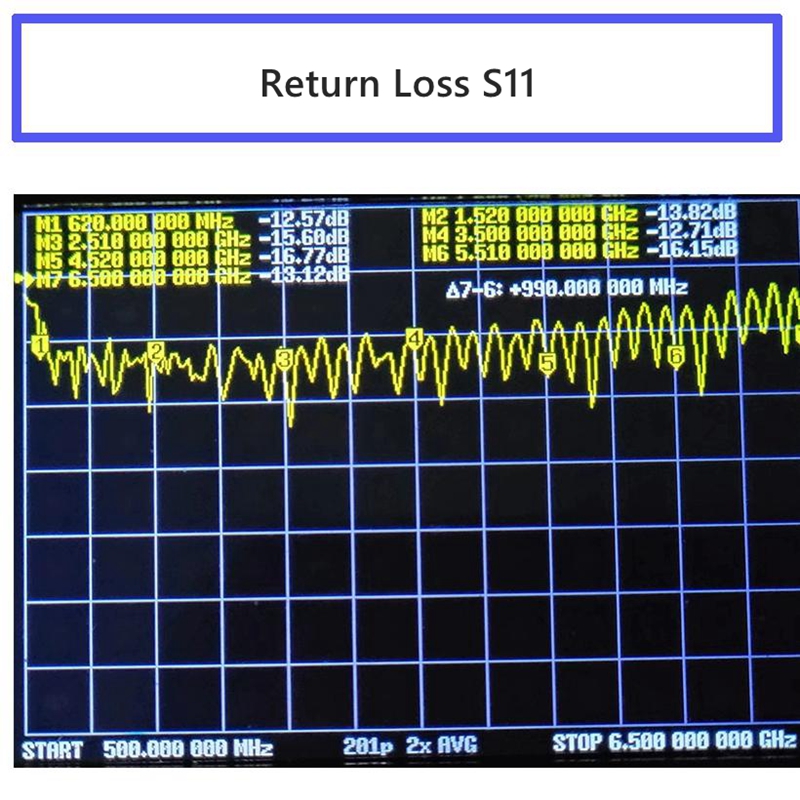

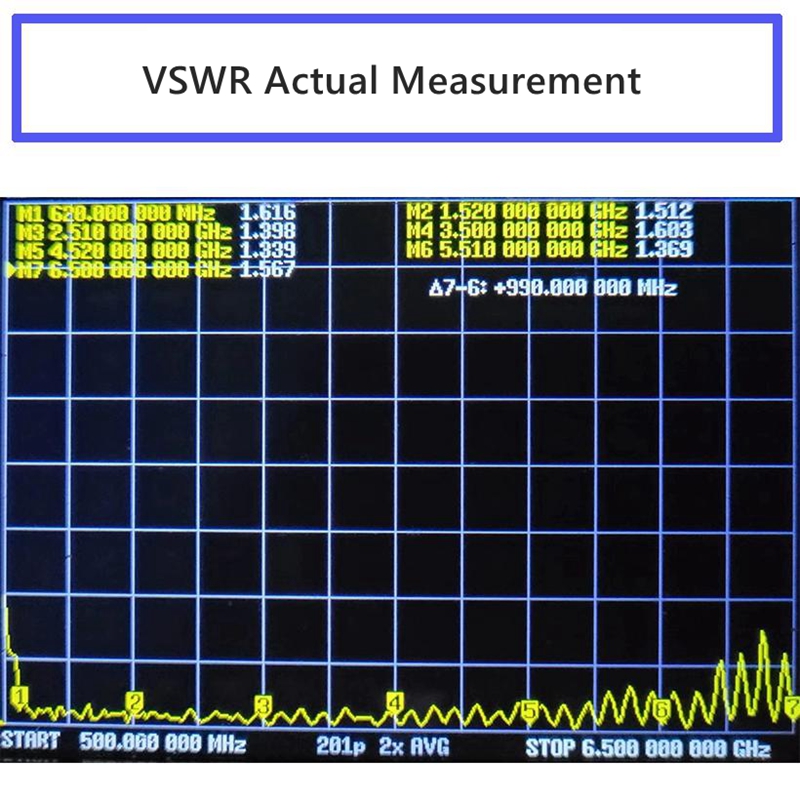

- VSWR: <2

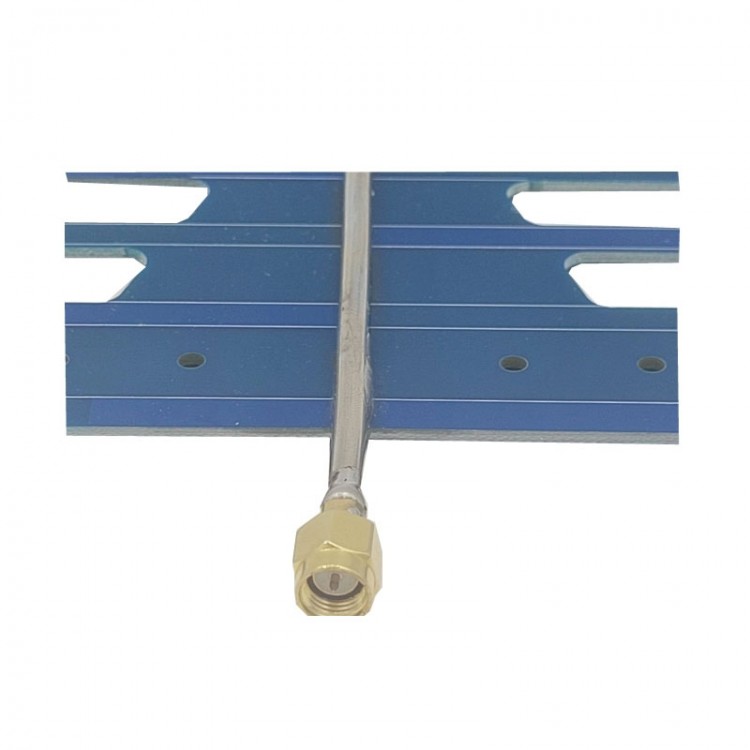

- Connector type: SMA female connector
- Size: 300 x 200 x 1.6mm
- Material: FR4

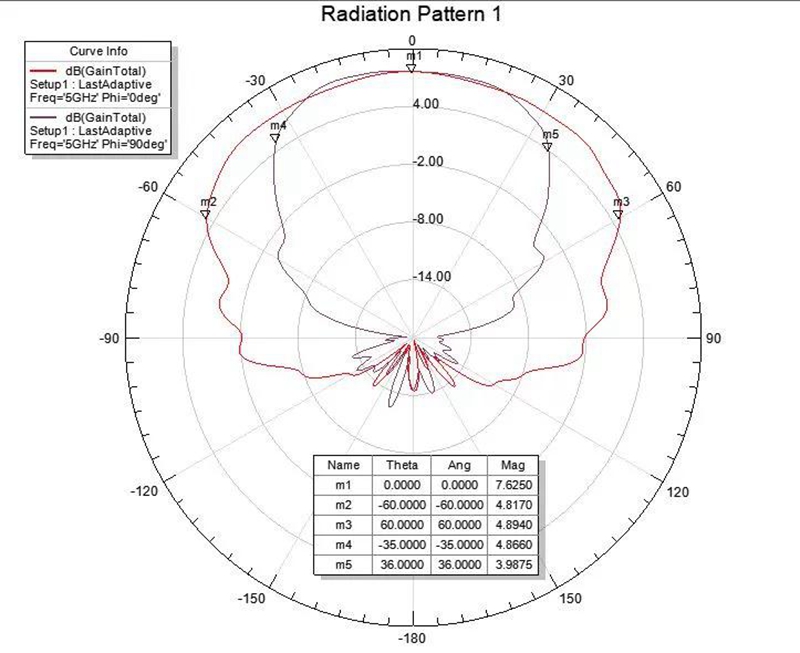

Parameter:

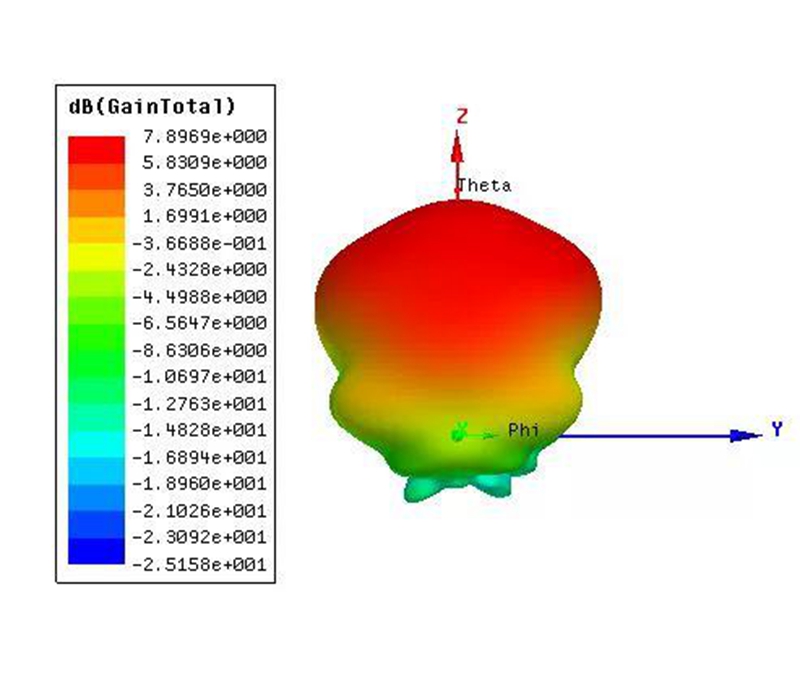

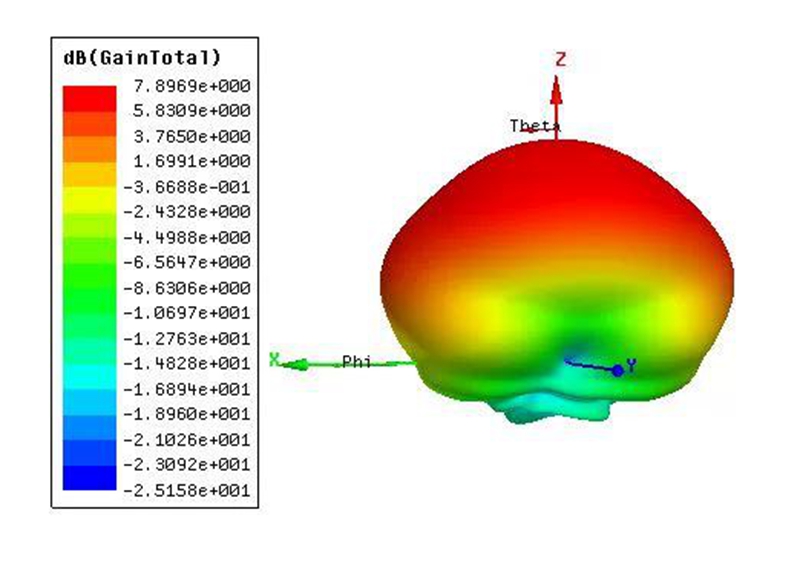

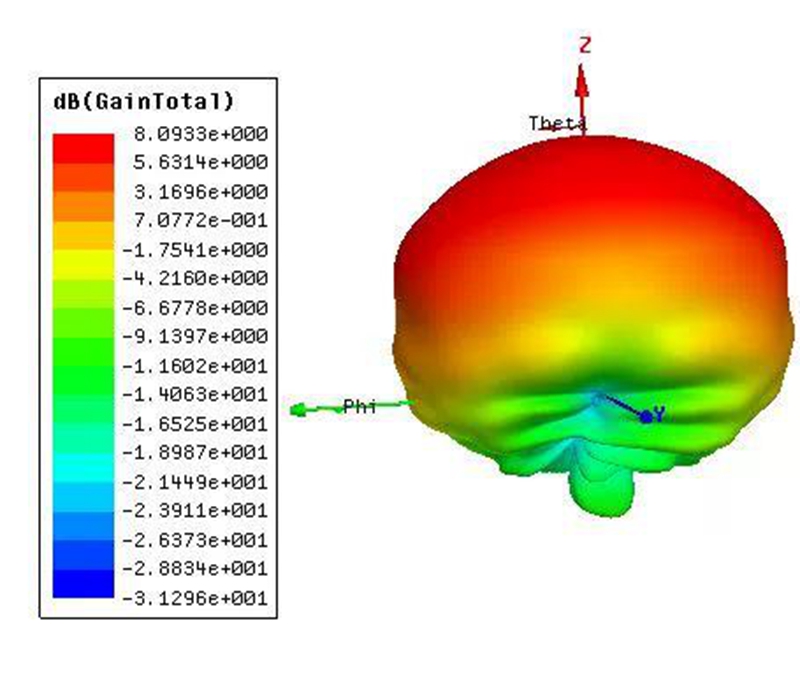

- 2.4GHz: H=120°, E=74°, simulation gain: 7.8dBi

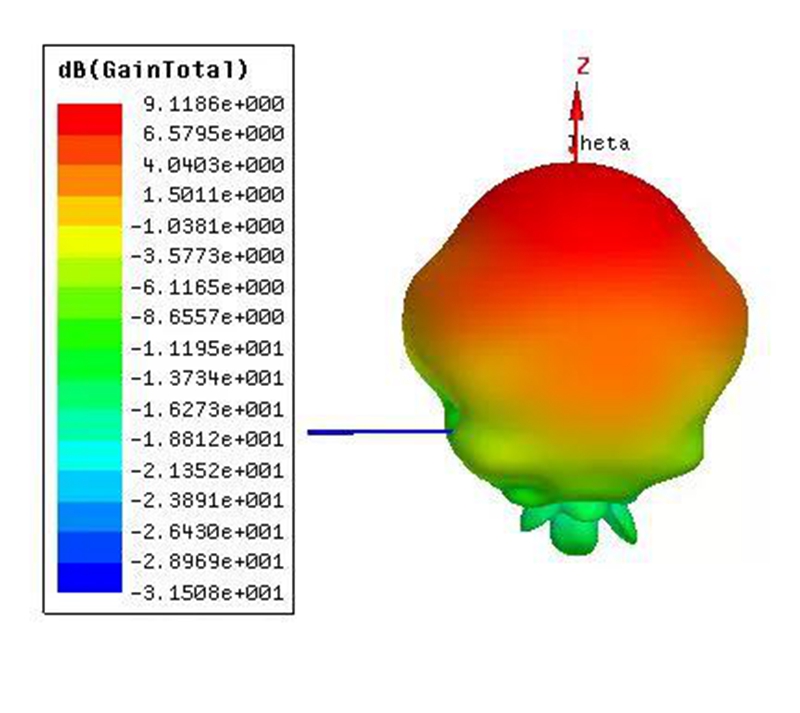

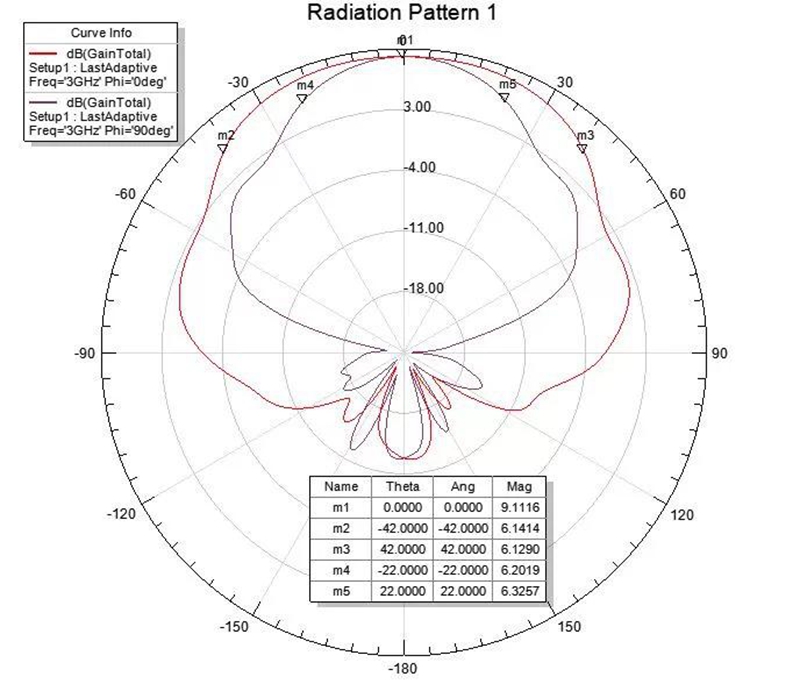

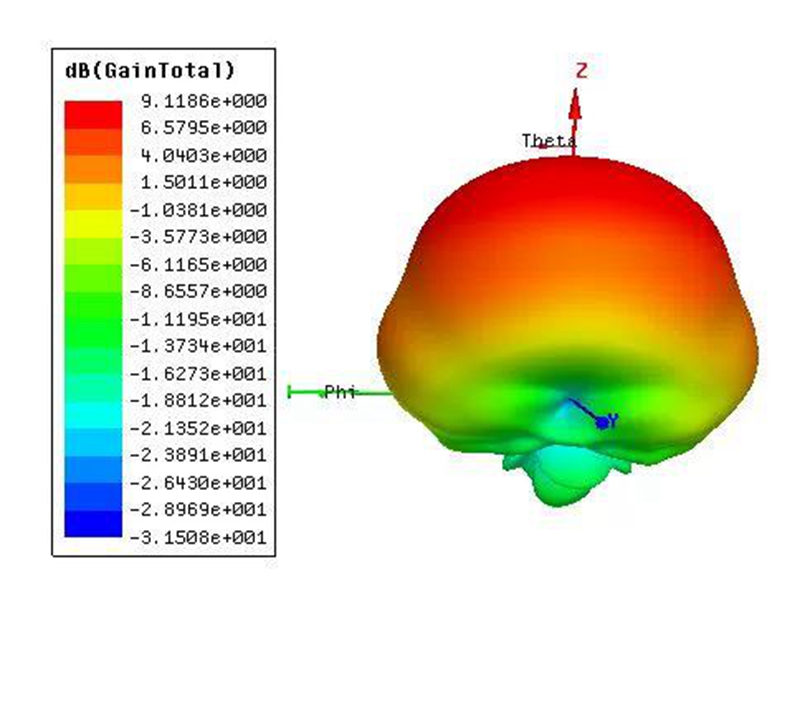

- 3GHz: H=84°, E=44°, simulation gain: 9.11dBi

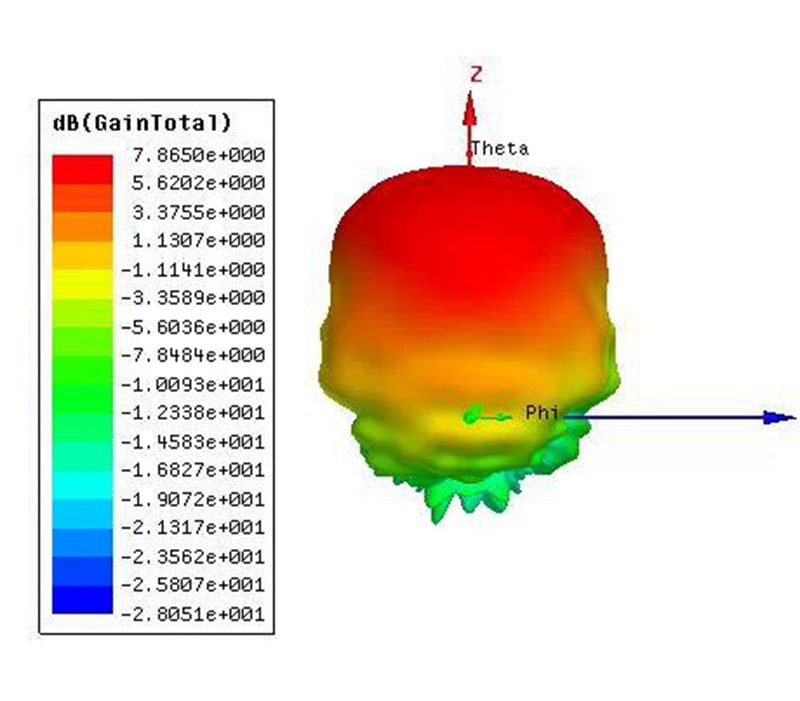

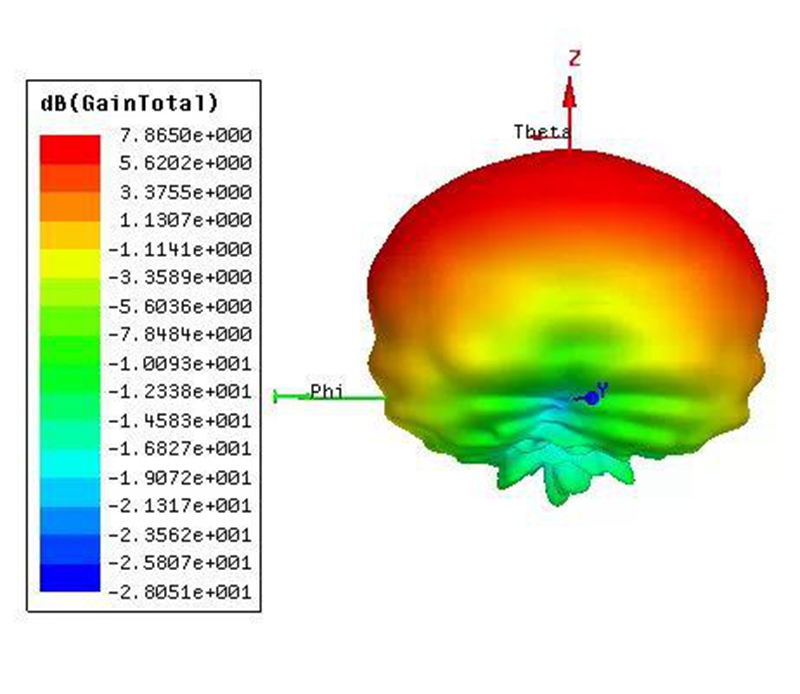

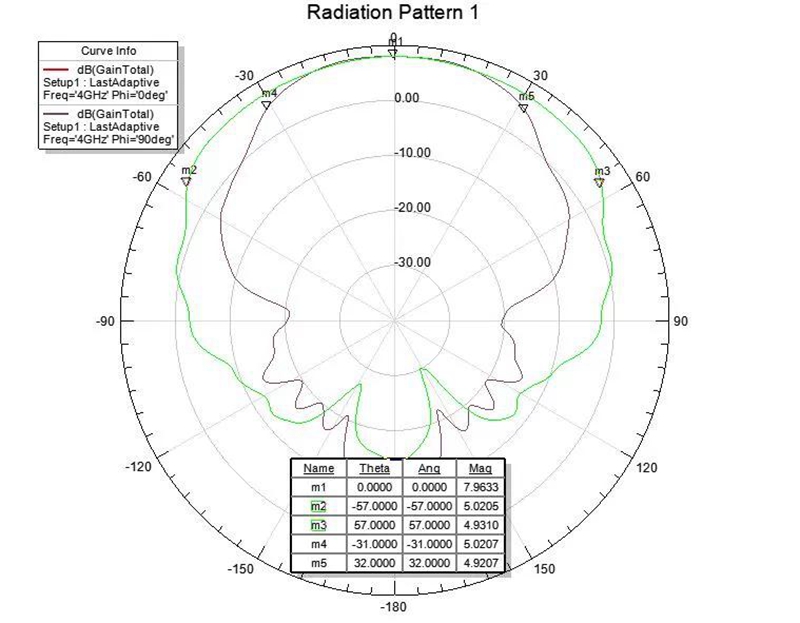

- 4GHz: H=104°, E=63°, simulation gain: 8dBi

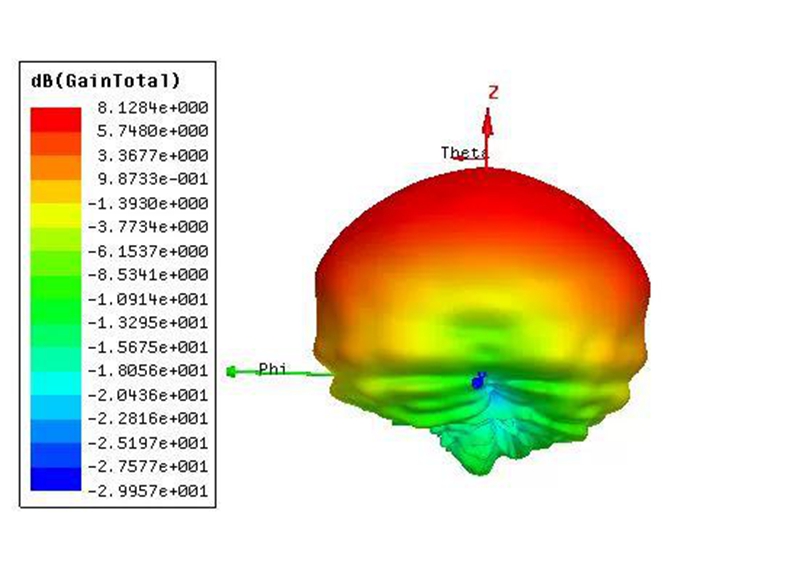

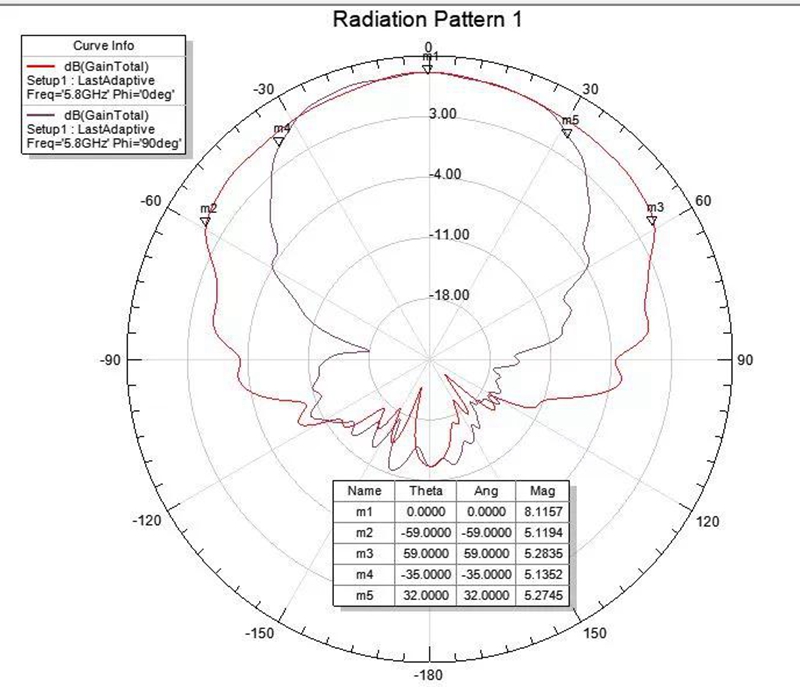

- 5.8GHz: H=118°, E=67°, simulation gain: 8.11dBi

Package Included:
- 1 x Log Periodic Antenna
