Specification:

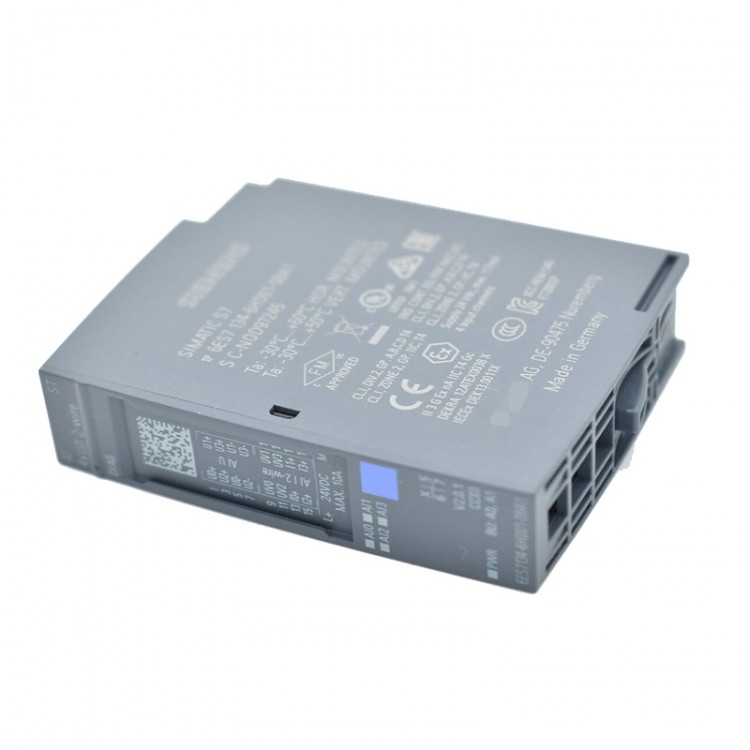

- Product No. : 6ES7134-6HD01-0BA1
- Product Type : Analog Input Module
- AI 4×U/I 2-wire ST
- Supply voltage
Rated value (DC) : 24 V
permissible range, lower limit (DC) : 19.2 V
permissible range, upper limit (DC) : 28.8 V
Reverse polarity protection : Yes
- Current consumption, max. : 37 mA; without sensor supply
- Power loss, typ. : 0.85 W; Without encoder supply voltage
- Analog inputs
Number of analog inputs : 4; Differential inputs
permissible input voltage for voltage input (destruction limit), max. : 30 V
permissible input current for current input (de-struction limit), max. : 50 mA
Cycle time (all channels), min. : Sum of the basic conversion times and additional processing times (depending on the parameteri-zation of the active channels)
shielded, max. : 1 000 m; 200 m for voltage measurement
- Dimensions (LxWxH) : 5.8cm x 1.5cm x 7.3cm
- Weight : 0.032 Kg
