6ES7392-1AM00-0AA0 40Pin Connector Compatible with Siemens 300PLC Terminal for AMSAMOTION
Description:

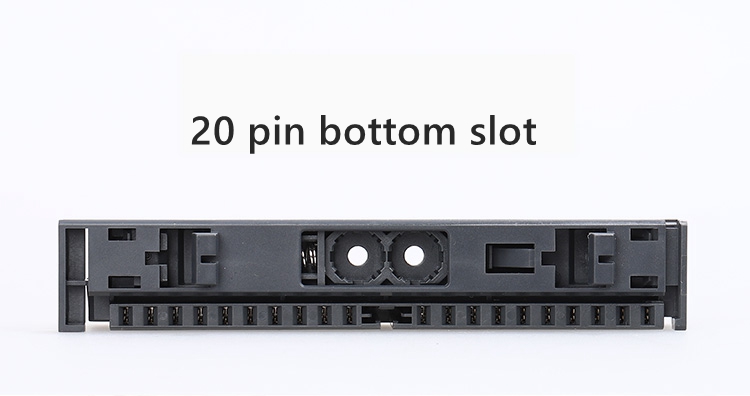

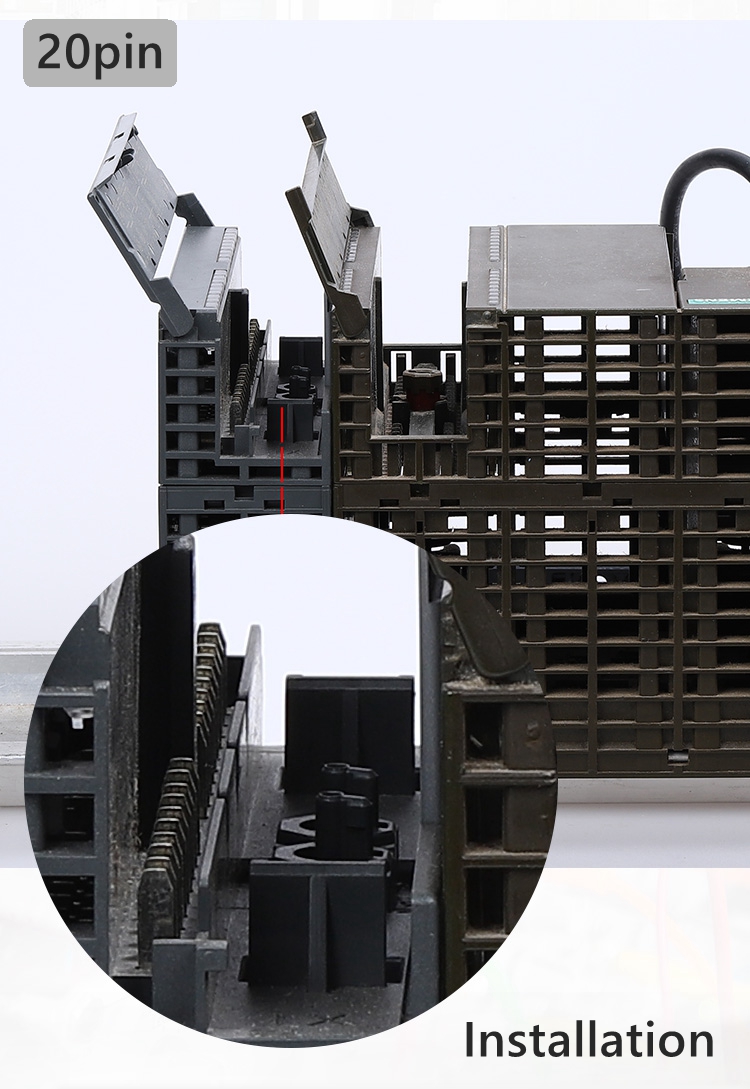

- The 20 pin connector/40 pin connector is the front connector for S7-300 and 300V modules. It connects the signals of field actuators and sensors to the module, and the CPU can detect the field signals. When replacing the module, remove the front connector without rewiring. Screw type terminal block is adopted, with cable clamp, release button, coding element socket, and two coding elements on the module. When it is inserted for the first time, the top cover will be permanently inserted into the front connector. When replacing the module, code to avoid incorrect module type.
Parameter:
- Model: 392-1AM00-0AA0
- Dimension: 12.4 x 3.9 x 2.1cm
- Material: Fireproof ABS
- Temperature: -30℃~70℃

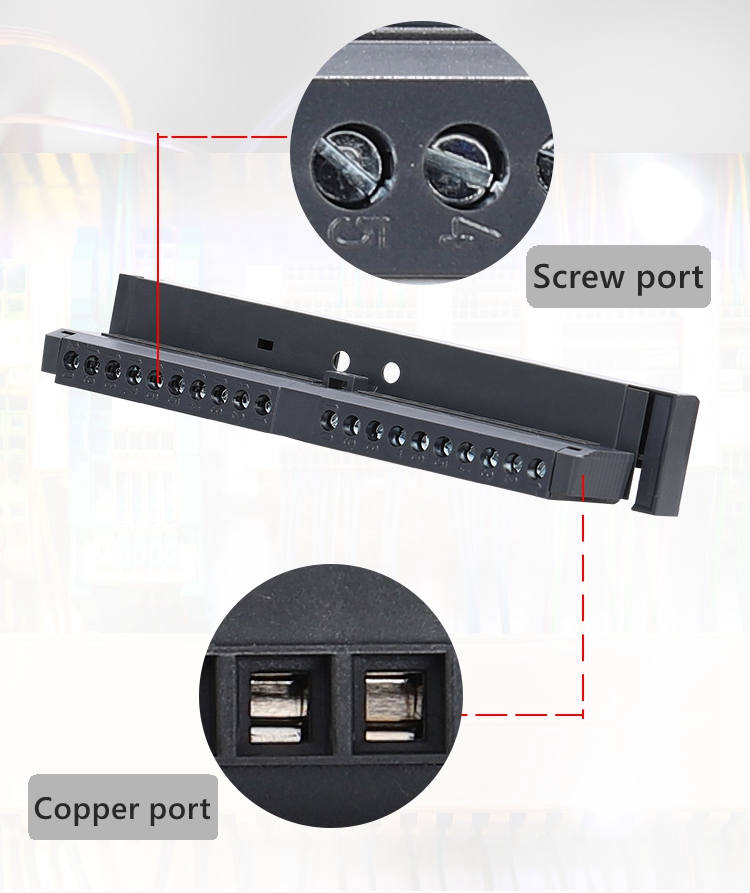

- Plug: Screw type terminal
Package Included:
- 1 x 40pin connector
