PCAN-USB Pro PCAN FD PRO 8Mbit/s USB to CAN Adapter 2CH CAN FD Compatible with IPEH-004061 for PEAK

PCAN-USB Pro PCAN FD PRO 8Mbit/s USB to CAN Adapter 2CH CAN FD Compatible with IPEH-004061 for PEAK

Description:
PCAN-USB Pro, a dual-channel CAN FD adapter, connects CAN FD and CAN networks to a PC via USB.

New CAN FD standard (CAN with Flexible Data Rate) is characterized by higher data transmission bandwidth. Each CAN FD frame has a maximum of 64 bits of data (instead of the current 8 bits) and can be transmitted at a bit rate of up to 8Mbit/s. CAN FD is backward compatible with CAN 2.0 A/B standard, so CAN FD nodes can be used in existing CAN networks.

Features:
- Provides two CAN FD channels
- Supports USB: Full speed mode. Compatible with USB 1.1, USB 2.0 and USB 3.0
- Supports high-speed CAN connection (ISO 11898-2) and CAN FD (supports ISO and non-ISO switching)
- Supports bit rate adjustment: 25Kbit/s~8Mbit/s
- Timestamp resolution is about 1us
- Compatible with CAN 2.0A (11-bit ID) and 2.0B (29-bit ID)
- CAN bus connection via 9-pin D-Sub connector (CiA 303-1 compliant)
- CAN galvanic isolation up to 1500V
- Supports bus load measurement, error frame detection and bus status monitoring
- Supports for Linux system. The kernel for Linux integrates driver (Socket CAN)
- Supports for MacOS (Mac CAN)

Premium Materials:
- High-end FPGA solutions: the pursuit of superior performance, regardless of the cost
- Alloy shell: high-end brushed finish
- High quality USB cable with magnetic ring
- Solid gold-plated DB9 connector
- Imported high-end FPGA main chip for Lattice Semiconductor
- Cutting-edge design solutions
- Higher working rates

Professional Automotive Bus Development Tool:
1. For PCAN-Explorer: Professional Windows software for communication with CAN bus.
2. For PCAN-Trace: It enables CAN messages to be quickly recorded and even played back on the CAN bus.
3. For BusMaster & TSMaster: It supports for ETAS and TOSUN bus development and simulation software (installation package provided).

Standard Industry Software Programming Interface:
1. PCAN-Basic provides more features and extended language support. It offers a variety of features for developers under C++, C#, C++/CLR, Delphi, VB.NET, Java and Python 3.x.
2. For Linux operating systems: Many Linux distributions or Linux kernels already include drivers for PEAK-System CAN interface. CAN bus can be accessed as a network device through the SocketCAN framework.
3. For MacOS operating system: PCAN-USB library program and monitoring software for MacOS are provided, and CAN can be accessed through this product under MacOs.
4. For Labview: Provide sub-VI interface and example VI of Labview that supports PCAN devices.

Supports a Wide Range of Industry Applications and Software:
Diesel/natural gas - commercial engine services
- For Cummins Insite: Provides RP1210 driver for PCAN. Support for Cummins ECU diagnostics - flashing.
- For INCA: provides XCP and CCP protocol drivers for PCAN. It can support for INCA ECU diagnosis-flashing.
- For Woodward: OH6 gas ECU diagnostics - flashing (only for Win10).

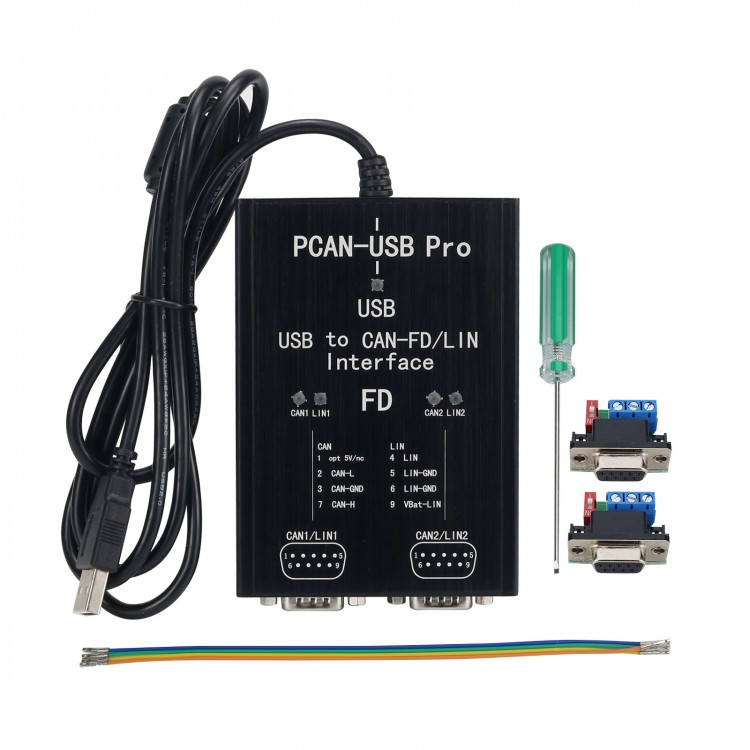

Package Included:
- 1 x USB to CAN adapter
- 1 x DB9 terminal Block Adapter
- 1 x QR code for information
- 1 x Flat-blade screwdriver
- 1 x DB9 terminal resistor (120Ω)

Packaging Details:
- G.W.: 0.6kg
