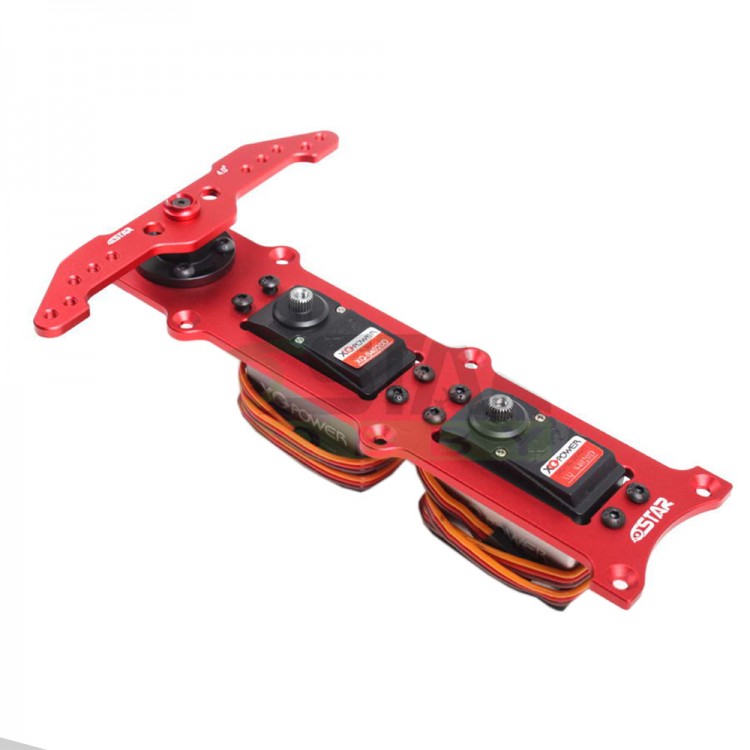

6STARHOBBY High Quality CNC Metal Servo Rudder Mount Set for 2 Servos RC Planes Helicopter

6STARHOBBY High Quality CNC Metal Servo Rudder Mount Set for 2 Servos RC Planes Helicopter

Features:

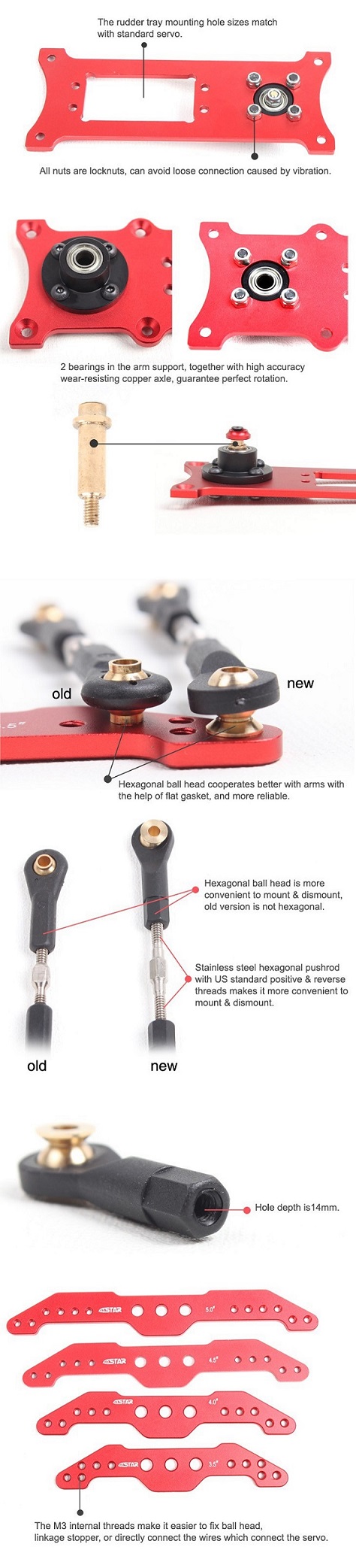

- The rudder tray mounting hole sizes match with standard servo.
- Both the rudder tray and servo arm are machined by CNC, with high accuracy.
- Anodic oxidation treatment on surface, artistic while anti-corrosion
- 2 bearings in the arm support, together with high accuracy wear-resisting copper axle, guarantee perfect rotation.
- Stainless steel hexagonal pushrod with US standard positive & reverse threads
- Hexagonal ball head cooperates better with the help of flat gasket, and more reliable.
- All nuts are locknuts, can avoid loose connection caused by vibration.
- The M3 internal threads make it easier to fix ball head, linkage stopper, or directly connect the wires which connect the servo.

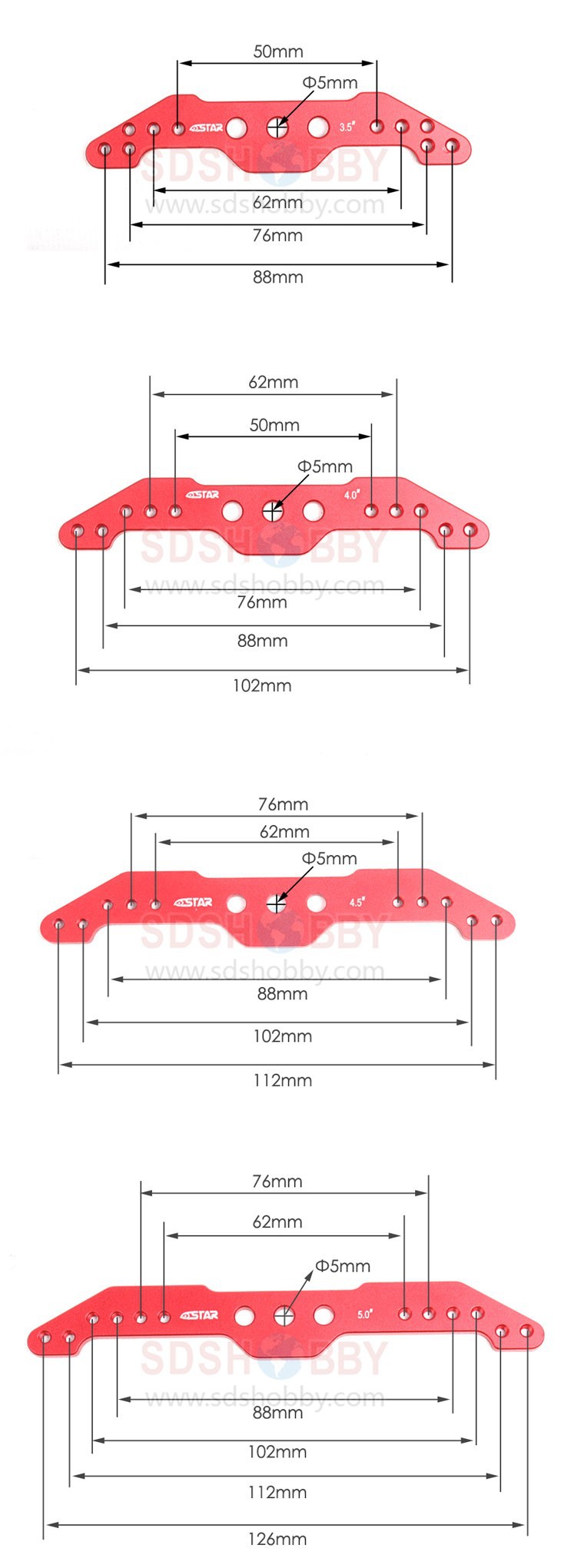

- 4 alternative sizes of double arm,longer the arm, more flexible the servo is, but stricter requirements on the torque force on servo.
- Size:3.5inch/ 4inch/ 4.5inch/ 5.0inch, please note the one you need.

Note: There are optional size, please leave a message about the one you need.


Package List:
- 1 x Rudder Tray
- 1 x 5in/4.5in/4in/3.5in  double arm(note the one you need)
- 4 x Stainless Steel hexagonal M3 pushrod
- 8 x Hexagonal ballΦ3*L30*Φ3mm
- 8 x M3*12 head tapping screws
- 8 x M3*18 screws
- 8 x M3 locknuts
