Application range:
Applied to home stereo, car audio and computer multimedia audio, professional active audio, IPOD audio, AV power amplifier, massage chairs, electronic gifts, electronic toys, etc. Suitable for speakers (sound) DIY enthusiasts
Features:
1: beautiful design, simple and elegant appearance using PC material panel and acrylic screen film is not easy to crack
2: Using dot matrix screen to indicate working status
3: Anti-power reverse design, even if the power supply is reversed will not burn the product, AC and DC
4: True stereo output
Bluetooth is based on CLASS 2 power class, Bluetooth 2.1+EDR specification, compatible with Bluetooth 3.0 and below, transmission distance greater than 10 meters
5: Appearance size: 88(L)*40(W)mm Weight: 80g
6: Operating voltage: 12V Operating current: <200Ma; Output range: >600mV, Bluetooth effective distance is greater than 10 meters.:
7: Support U disk and SD/MMC card playback, support three formats decoding (MP3/WAV)
8: Support FAT16, FAT32 file system.
9: Supports MP1 Layer3, MP2 Layer3, MP3 Layer3 songs.
10: Supports 32-320kbps MP3 songs
11: Support FM radio (FM)
12: Support infrared remote control
13: Bluetooth is based on the CLASS 2 power class, uses the Bluetooth 2.1+EDR specification, is compatible with Bluetooth 3.0 and below, and has a transmission speed of up to 3 Mbit/s.
Bluetooth supports L2CAP/A2DP (AVCTP/AVDTP/AVRCP) protocol for receiving stereo audio signals. Through the protocol, you can control the up/down song and play/pause operation of the audio transmitter.
Debugged PCB antenna without rematching the antenna
Note:
1. Some mobile phones do not support fade-in, so there will be POP sounds when playing pauses and switching songs up and down
2. Bluetooth disconnection detection is non-real-time detection. Therefore, after the Bluetooth speaker is turned off for a period of time, the mobile phone is disconnected.
3. Some mobile phones press a song within 3 seconds of playback, and will return to the initial position of the current song, which requires two consecutive presses to have the previous function.
4. Some domestic mobile phones can only be paired and cannot be connected because mobile phone software needs to detect the hands-free device to connect.
5. Some mobile phones do not support simple pairing. For example, Symbian phone, you need to enter the pairing password 0000 when pairing.

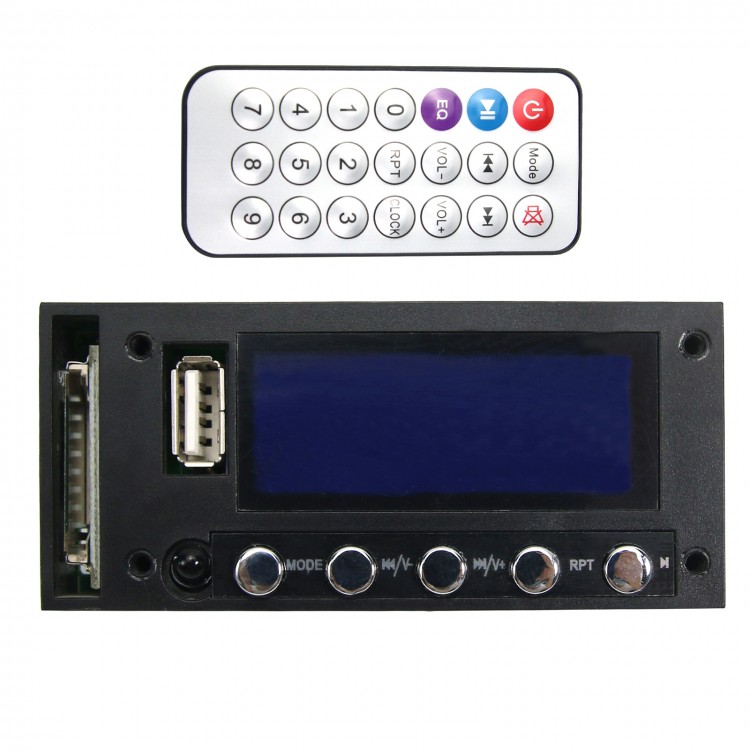

Pacakge list:
- 1 x decoder board
- 1 x remote controler
