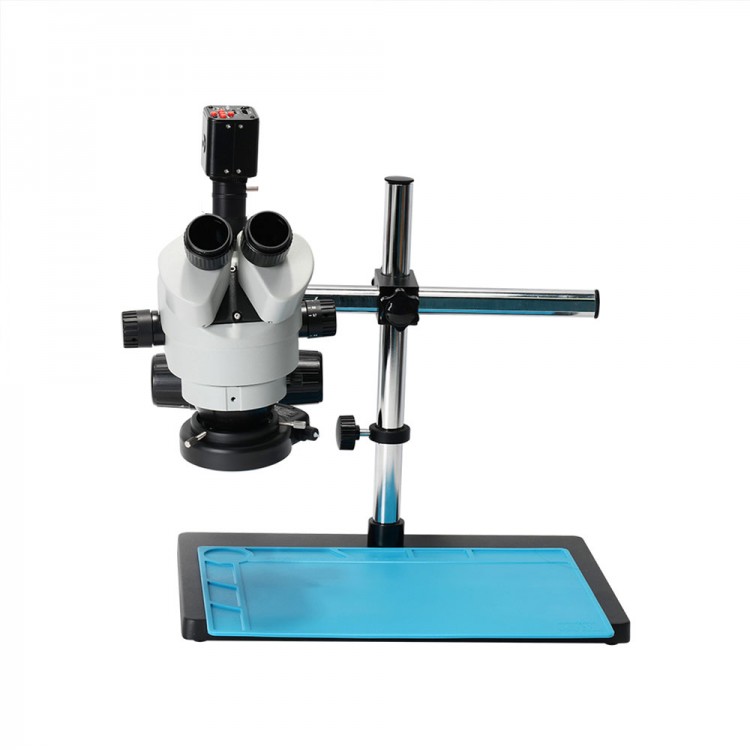

7-45X Simul-Focal Trinocular Stereo Microscope Kit w/ 24MP HD Microscope Camera 144-LED Fill Light

7-45X Simul-Focal Trinocular Stereo Microscope Kit w/ 24MP HD Microscope Camera 144-LED Fill Light

Description:
This stereo microscope has a 144-LED ring light that offers super widefield optics and 7X-45X zoom magnification power with a cool light illumination system. It is an ideal instrument for industrial inspection and/or biological lab applications. This microscope is perfect for gemologists, manufacturing engineers, dental lab technicians, and anyone in electronic and semiconductor industries.

Advantages:
- 7X~45X zoom magnification power with crisp sharp images
- Super widefield high-eyepoint optics
- Widefield of view
- 4" (100mm) working distance
- Sturdy all-metal pillar stand
- Powerful 144-LED ring light with dimmer

Features:
- An excellent stereo inspection microscope with intensity-adjustable 144-LED ring light
- 7x-45x super wide zoom magnification power
- Bright cool light 144-LED illumination system
- High resolution with great flatness and contrast, giving sharp and clear images
- Binocular head with 45 degree inclined 360 degree swiveling eye tubes
- Sharp stereo erect images with a wide field of view
- Crystal clear original true color microscope images
- Dual eye tubes with adjustable diopters
- Large working distance
- Sturdy all-metal table stand
- Accurate alignment reduces eye strain for longer periods of viewing
- Full optical glass elements
- Precise ground glass lenses
- Full metal chrome-plated mechanical components
- Adjustable interpupillary distance
- Rubber eye-guards included

Specifications:
- Head: 360 degree rotatable 45 degree inclined binocular
- Eyepieces: 30mm super widefield high-eyepoint WF10X/20MM
- Objective Zoom Range: 0.35X-9.0X, using the lenses for Barlow
- Working Distance: 4" (100mm)
- Diopter Adjustment: +/- 5dp
- Interpupillary Distance: 2-3/16" - 2-15/16" (55-75mm)
- Round Plate: 3-3/4" (95mm) in diameter
- Stand: 10" x 7-7/8" x 10.75" (254 x 200 x 275mm)
- Illumination: 144-LED Ring Light
- Power supply Input: 110-240V, 50-60HZ, Automatic Switching
- Accessories: Paired eye-caps

Microscope Camera:
- Image sensor: for SONY CMOS 1/2.9
- Pixel size: 2.85μm x 2.85μm
- Video output: Full HD 1080p ( for HDMI)
- Image resolution: 5640x4232 (for HDMI)
- Video recording: 1080p (for HDMI)
- Image format: jpeg
- Lens: C/CS
- Resolution: 1920*1080 at 60fps ( for HDMI), 720p 160 at fps ( for HDMI)
- TF card interface: max. 64G
- Digital zoom: 4 times digital zoom
- AWB:WB color correction/Automatic/Manual
- R.G.B value setting independent
- Exposure: Automatic/Manual. AE value can set
- Cross lines: 8 lines. Can set color & width & position
- Scale mark lines: 2 lines
- Dotted lines: 2 lines. Can set color & width & position
- Sharpness Contrast Color gain: Support
- Mono Negative: Support
- Mirror: Horizontal vertical mirror
- Language: English, Chinese, Japanese, French, Germany, Italy, Korean, Turkey, Russia
- Shell size: 42x42x60mm
- Working temperature: -40°C to 65°C

144 LED Adjustable Compact Microscope Ring Light:
- Provides intense and focused shadow-free illumination
- 144 bright white LED bulbs
- Lighting direction changeable
- Variable intensity control
- Intense and focused shadow-free illumination
- 100,000 hours of life
- Power input: 100-240V, 50-60HZ, automatic switching
- Inside diameter of the ring light: 1.0" (27mm)
- Overall outside diameter: 1.77" (45mm)
- Working Distance: 27mm-45mm

Package Included:
- 1 x Set of Trinocular Microscope
