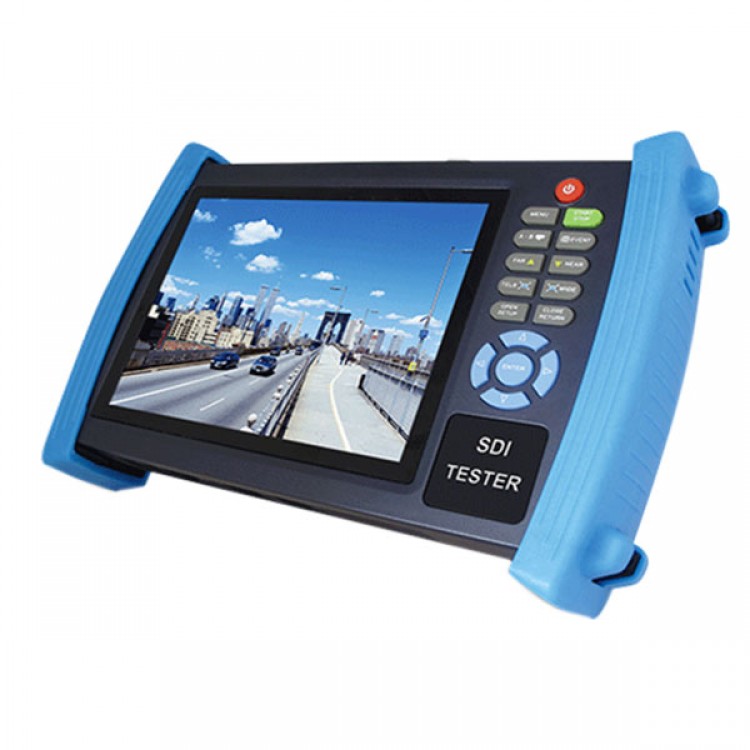

• 7" CCTV Security Camera Tester Monitor HD SDI Analog 12V2A VGA HVT-3600S

7" CCTV Security Camera Tester Monitor HD SDI Analog 12V2A VGA HVT-3600S

Availability: In stock, usually dispatched in 1 business day

  • Price:$243.97
  • Price in reward points: 2440 Reward Points: 24
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $239.09 $234.21 $226.89 $217.13 Contact US
Quantity:

7" CCTV Security Camera Tester Monitor HD SDI Analog 12V2A VGA HVT-3600S

Futures:

1.  English/Chinese and other languages optional
2. 7 inch LCD screen display,800*600 resolution  NEW
3. HD SDI digital camera image display and output  * NEW
4. VGA, convenient to DVR / NVR setting NEW
5. DC12V 2A power output for camera NEW
6. USB 5V 2A power out, as a power bank  NEW
7.  LED Lamp,easy to operate at night
8.  Micro SD card moveable
9.  User-defined shortcut keys(F1 and F2)
10 LCD screen brightness/contrast/color Saturation adjustable
11 Automatically adapts and displays the video format of NTSC/PA
12  Enhanced color bar generator, by receiving the video color bar to test the video channel whether transmit normally
13. Optical Power Meter, it can measure the optical power value*(Optional)
14. Digital Multi-meter, voltage, current, resistance and capacitance can be tested, continuity testing, diode testing (*(Optional)
15. 10xzoom,video image can be magnified to view the details, easy to use (only for analog video test)
16.   Video record and playback (only for analog video test)
17. Snapshot and save the current image as JPG file in the SD card(only for analog video test)
18. PING testing,test IP camera or other network devices’ Ethernet port whether work normally, and the IP address whether right
19. Video signal level test
20. PEAK video signal level, SYNC signal level, COLOR BURST chroma level measurement *NEW
21. Cable scan, Send the specific signal, easy to find the connected cable.*(Optional)
22. IP address scan, quickly search the IP address for the connected IP camera and other network devices
23. POE voltage measurement,test the PoE switch’s voltage to IP cameras, wireless AP device and other PD devices
24. Device Port flicker,easy to find the connected PoE switch port by sending special signals, the connected PoE port will flicker at special frequency.
25. Link monitor; check the setting IP address whether occupied.
26. TDR cable tester ,cable length and short – circuit measurement( BNC cable, network cable etc) * (Optional)
27. PTZ address scan, search up the ID of PTZ camera.
28. Network cable and Telephone cable testing, display the sequence of connection and the NO  of the LAN cable
29. Support RS232/RS485/RS422,Rate 600 ~ 115200bps adjustable
30. Multi-protocol. Supports more than thirty PTZ protocols. Such as PELCO-P, PELCO-D,
   SAMSUNG
31. PTZ protocol analysis, control protocol command displays to check RS485 transmission
   whether is normal, easy to find the fault device
32.PTZ control. Pan/tilts the P/T unit, zooms in/out the lens, adjusts the focus, aperture and  sets and the preset position
33. Audio input test, test the audio signal from pickup devices
34. Visual fault locator , to test fiber’s bending and breakage * (Optional)
35. Lithium Ion Polymer Battery .The device employs advanced power control and protection circuit.
The device is high power-efficient, energy saving and environmental protection. It can last 17 hours for normal use after charging for 7 -8 hours.
http://img03.taobaocdn.com/imgextra/i3/119219540/TB2B1PTapXXXXc3XXXXXXXXXXXX_!!119219540.jpg

Model

SDI-3600 / HVT-3600

SDI digital Video Signal *

Video IN/OUT

1 channel SDI IN BNC& 1 channel Output



digital Signal in

support 1080P,720P

Video Test

Signal mode

NTSC/PAL (Auto adapt)

Video Output Mode

1.0 Vp-p

Display

7inch TFT-LCD, 800(RGB)×600 resolution

LCD adjustment

Brightness, Contrast, Saturation adjustable

Video IN/OUT

1 channel BNC Input & 1 channel Output

VGA input display

VGA input display

Receive DVR、NVR VGA signal

Video Level test

Level test

Video signals measured in IRE or mV

Video Level meter (optional,Not standard function)*

Video Level meter

PEAK video signal level, SYNC signal level, COLOR BURST chroma level measurement

DC12V 2A power output

DC12V power output

Output DC12V/2A power for camera

5V power output

Power output

Output 5V power for phone as power bank

Audio input test

Audio input test

test the pickup and other audio equipments on the front-end

PTZ controller

Communication

Support RS232 and RS485

PTZ Protocol

Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc.

Baud Rate

600,1200,2400,4800,9600,19200,57600,115200bps

Video Signal Generation

Color bar generator

Output one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red, green ,blue, white and black color )

UTP Cable tester

UTP cable test

Test UTP cable connection status and display in the screen. Read the number of the test box.

RS485 /232data analysis

Data Monitor

Collects and analyzes the command data from controlling device

10x Zoom Image

 Image 10x zoom

10x zoom image display and video out

Photograph、Video record, Record playback

Photograph

snapshot and save the current image as JPG file

Video record

Video record and storage the file

Record playback

To view the storage file in the SD card

Port flicker

Port flicker

Find the connected POE port quickly.

IP scan、Link monitor、PING test

IP scan

Find out the connected IP camera or the other network equipment IP address quickly.

Link monitor

Check the IP address whether is occupied

PING testing

Test IP camera or Ethernet port of the other network equipment whether work normally, and check the IP address

Cable scan *

Cable scan

Search the cable by the audio signal

PoE test

PoE test

Display the power supply voltage and cable connection states

Digital Multimeter *(Optional,Not standard function)

AC/DC Voltage

0-660V auto/manual range, the min resolution is 0.1mV

AC/DC current

660.0uA , 6.600mA, 66.00mA , 660.0mA, 10.00A

Resistance

660.0Ω, 6.600kΩ, 66.00kΩ, 660.0kΩ, 6.600MΩ, 66.00MΩ

Capacitance

6.6nf~66000uF, the min resolution is 1pf

Diode

0~2V forward voltage, the min resolution is 1mV

Data hold

Hold and display the measured value

Relative measurement

Display the relative power value

Continuity testing

Built-in buzzer will sound, if resistance is lower than 30Ω

Testing speed

3 times/ seconds

Data range

-6600~+6600

Optical power meter **(Optional,Not standard function)

Calibrated Wavelength(nm)

850/1300/1310/1490/1550/1625nm

Power range(dBm)

-70~+10dBm

Sensitivity(nW)

0.001nW

Connector type

FC/PC

Data hold

Hold and display the measured value

Relative measurement

Display the relative power value

Visual fault locator **(Optional,Not standard function)

Visual fault locator

Test fiber’s bending and breakage ( SM and MM fiber)





TDR Test**(Optional,Not standard function)

TDR Test

Cable length and short circuit measurement(BNC cable, telephone cable)

POWER

Power Adapter

DC 5V(2A)

Battery

Built-in 7.4V Lithium polymer battery ,6500mAh

Rechargeable

After charging 6-8 hour, working time lasts 17 hours

Low Consumption

Energy saving technology, the battery icon real-time display

Parameter

Operation setting

English/Chinese and other languages OSD menu

Auto off

5-60 (mins)

Keytone

On/Off

General

WorkingTemperature

-10℃ ~+50℃

Working Humidity

30%~ 90%

Dimension/Weight

256mm x 173mm x 50mm / 1.2kg
