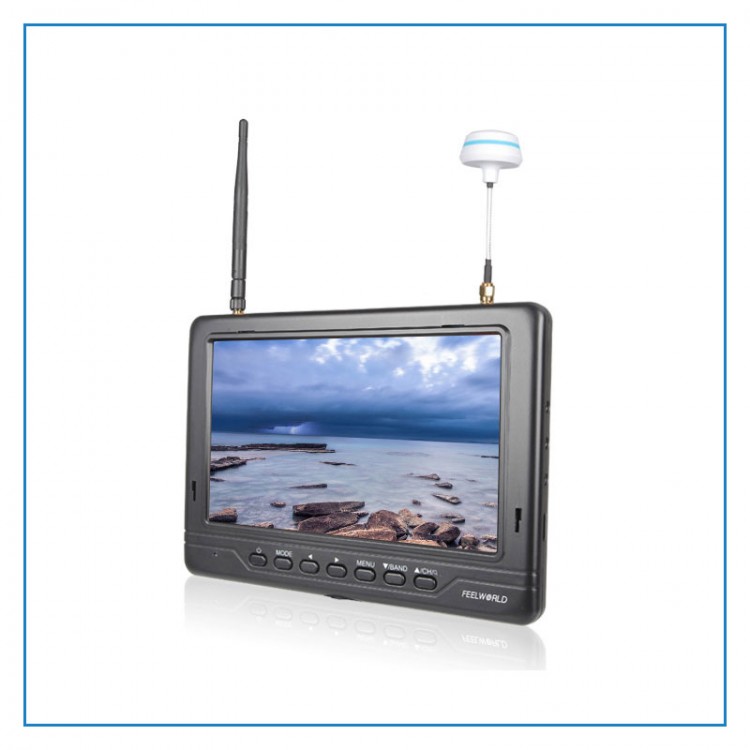

7'' FPV Monitor 1024x600 HDMI Wireless Monitor Dual 5.8 G 32CH Diversity Receivers FPV718B Super Slim

7'' FPV Monitor 1024x600 HDMI Wireless Monitor Dual 5.8 G 32CH Diversity Receivers FPV718B Super Slim


This FPV monitor has a very slim 7" screen with a super bright LCD, and 5.8GHz 32CH diversity receiver. This monitor is an excellent choice for your FPV monitor, or as a secondary backup screen for your friends to watch. The 600cd/m² is plenty bright for outdoor applications where you need a bright screen, and the included sun shade will help keep unwanted light off the screen, reducing glare. The integrated rechargeable battery keeps your FPV ground station compact and easy to use. The auto RF searching feature makes it easy to match your FPV transmitters frequency with the click of a button. This monitor will not go to a blue or black screen when video signal is lost or static. Perfect for an FPV application where you don't want your screen to go blank when the video signal is weak.

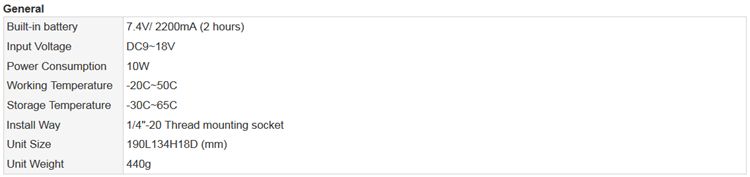

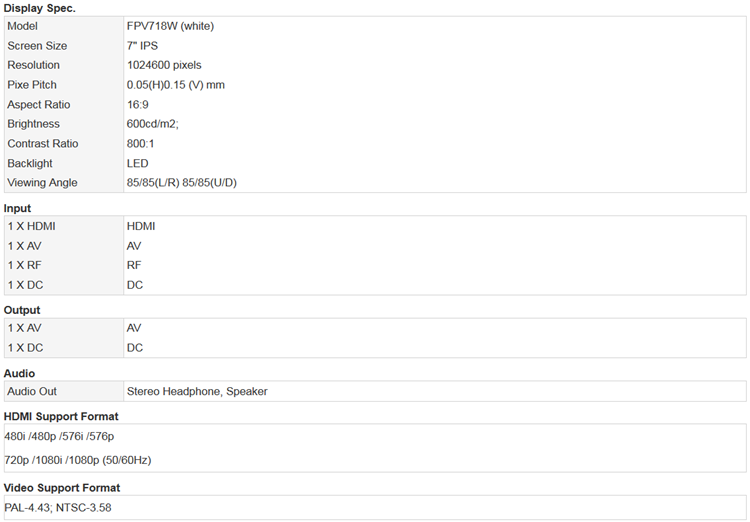

Specifications:

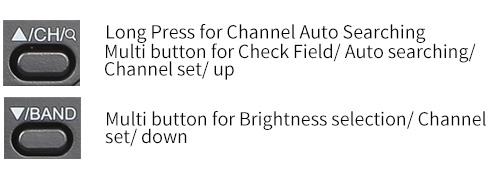

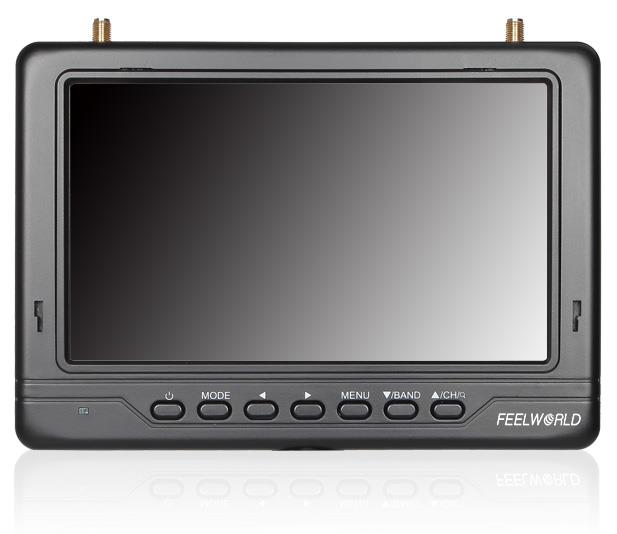

Function Button for Easy Operation

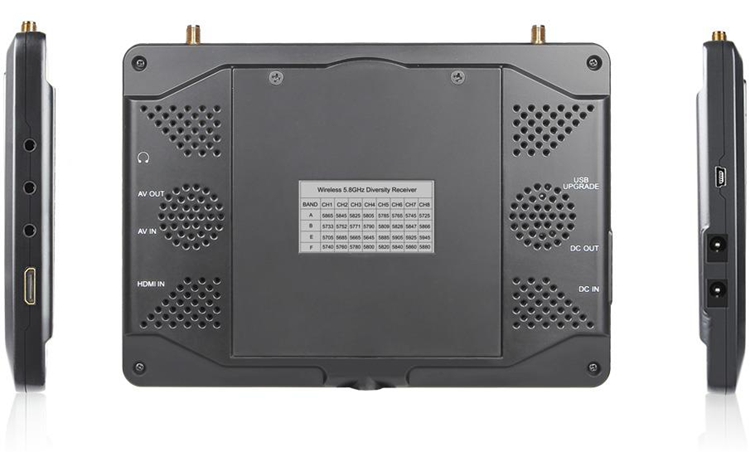

Multiple Inputs and Outputs
HDMI, AV, RF inputs, AV, 3.5mm Earphone Jack outputs. DC in and out, and with USB for upgrade.

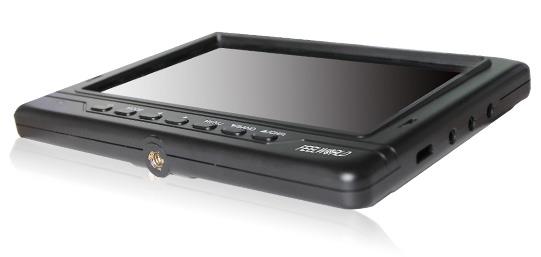

Slim Design 17mm Thickness

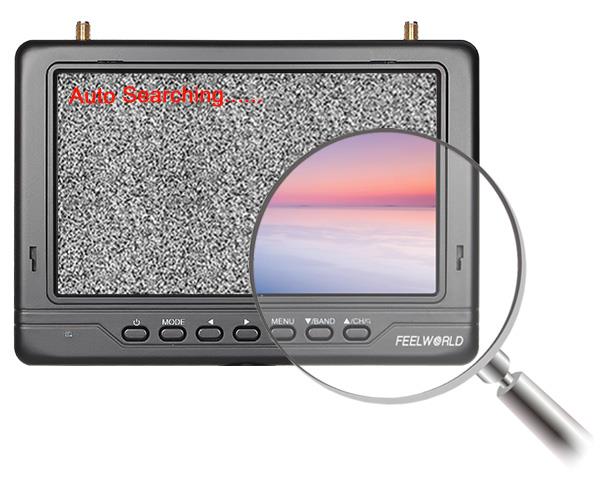

Channel Auto Searching
It supports 32-channels totally, Long press "Search" button to realize auto channel searching function when aerial photography. It's much more convenient than traditional methods.


5.8GHz Wireless AV Receiver
• Built-in AV receiver support PAL / NTSC
• Simulation of composite video AV inputs, aerial camera connection
• 5.8Ghz frequency 4 Bands and total 32 channels
• Snow screen, no more "blue" screen

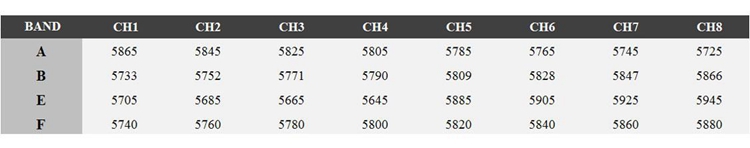

Wireless Receiver 32 Channel (Mhz)

Optional RaceBand

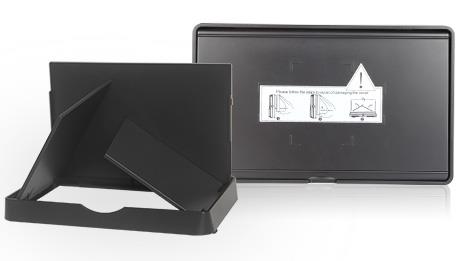

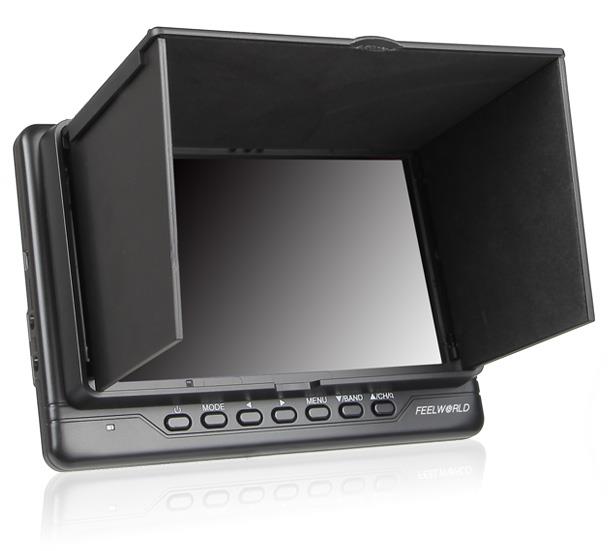

Collapsible Sunshade
New generation super deep sunhood allows you get ideal view effect in almost all the environment.

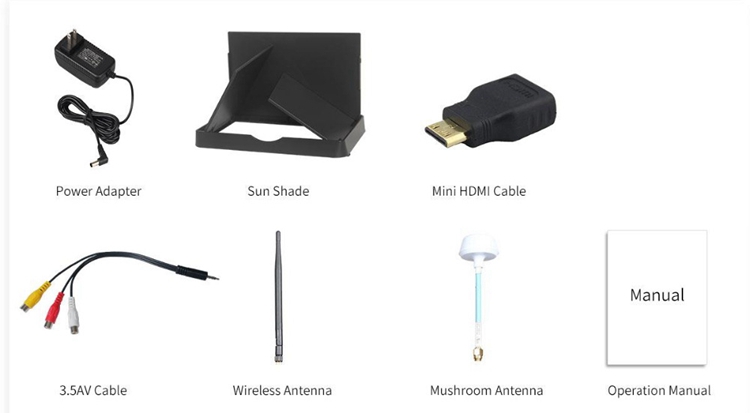

Standard Accessories:
- 1 x Power Adapter
- 1 x Sunshade
- 1 x HDMI Converter
- 1 x AV Cable
- 1 x Wireless Antenna
- 1 x Mushroom Antenna
- 1 x Operation Manual
