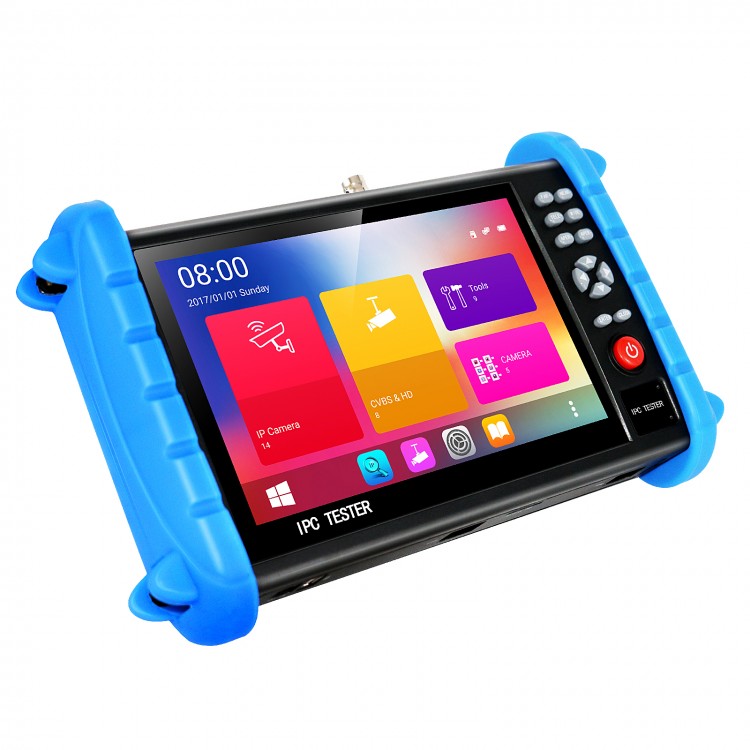

7 inch IPC X NATCHRVO 4K H265 IPC Coaxial HDMI Tester HD 1920x1200 Support Wifi Camera

7 inch IPC X NATCHRVO 4K H265 IPC Coaxial HDMI Tester HD 1920x1200 Support Wifi Camera

Specification:
- Model: IPC-X NATCHRVO
- Function: 4KIP+CVBS+Cable TDRTest
- Display resolution is upgraded to 1920x1200, more high-definition delicate.
- Battery upgrade, thickening 7000mA/7.4V polymer lithium battery, more durable.
- 4K H265, H264, MPEG4 network camera main stream test, clear and smooth, completely reduction high-definition picture quality 4K H265,H264,MPEG4.
- New Desktop design, convenient and beautiful, humanized design.
- Open source, can install Android software, such as QQ,WeChat,etc.
- Cable test，the sequence of Cable detection.
- Support wireless WIFI hotspots, easy connection test wireless WIFI camera.
- The new rapid IP detecte IP address, one key test camera IP camera.
- Screen projection, the instrument screen can be projected to mobile phones and other mobile devices, to facilitate the construction staff to share image information.
- Coaxial HD maximum support for the 5M, clear and delicate picture quality, not converted into CVBS.
- Add HDMI input, HDMI high-definition signal input, Test DVR / NVR recorder
- Add the cable TDR test, can test the network short circuit, length, attenuation, quality and other parameters.
- TDR cable breakpoint test, the maximum length can be measured to 1000 meters.
- Network cable TDR quality test, can test the line line on the state, length, attenuation, quality, reflectivity, impedance, delay deviation and other parameters.
- Support TVI3.0, maximum  5MP 2560*1944@12.5fps, support zoom、photo、video、 playback. Support coaxial view control menu call.
- Support CVI3.0, maximum  4MP 2560*1440@30fps, support zoom、photo、video、 playback. Support coaxial view control menu call.
- Support CVI3.0, maximum  5MP 2560*1944@20fps, support zoom、photo、video、 playback. Support coaxial view control menu call.

Features:
- Hunt Cable
- HDMI Input
- HD TVI3.0+CVI3.0+AHD3.0
- Length measurement up to 1000 meters
- Red light source
- Optical power meter

Package List:
- IPC X NATCHRVO 4K H265 IPC Coaxial HDMI Tester Full Function
