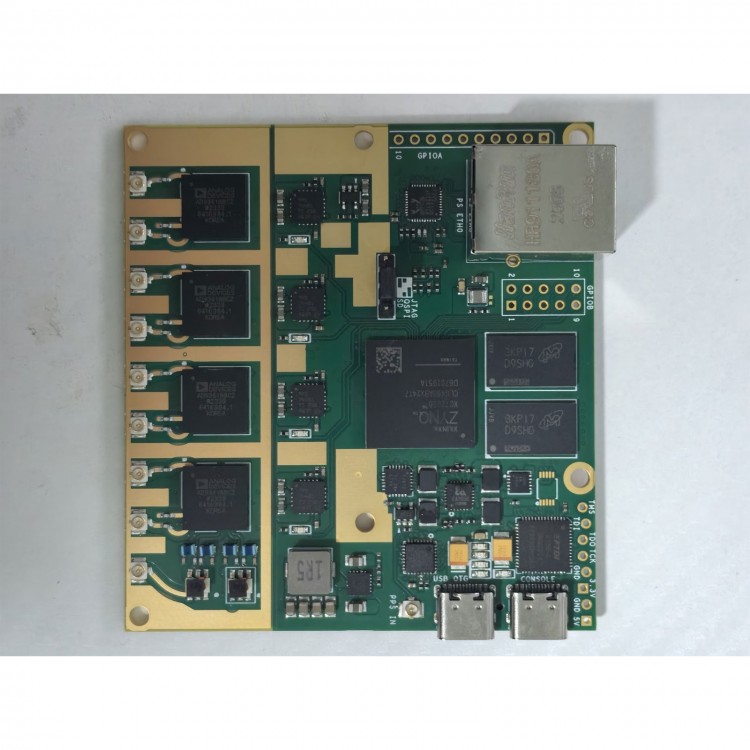

70MHz-6GHz 8-Channel Phase Synchronization Receiving SDR Development Board Based on XC7Z020-2CLG400I+4pcs AD936X
Description:
- 8-channel phase synchronized SDR reception, based on XC7Z020-2CLG400I+4pcs AD936X architecture. Suitable for applications such as incoming wave direction detection, spectrum detection, and drone interference detection.
- Board size: 8x7cm
Hardware Resources:
- 1 transmission channel. Using imported Balun TCM1-63AX+, the maximum transmission power at 5.8G is close to 0dBm.
- 8 receiving channels.
- Receiving phase synchronization calibration circuit, with a calibrated phase error of less than 1 degree within the range of 70M to 6G.
- 256Mbit QSPI flash.
- SD card interface.
- 1000M Ethernet interface.
- 1GBytes PS-side DDR3
- Onboard JTAG and UART 2-in-1 interface based on FT2232
- USB OTG
- PL-side GPO x 16
Package Included:
- 1 x Development Board
