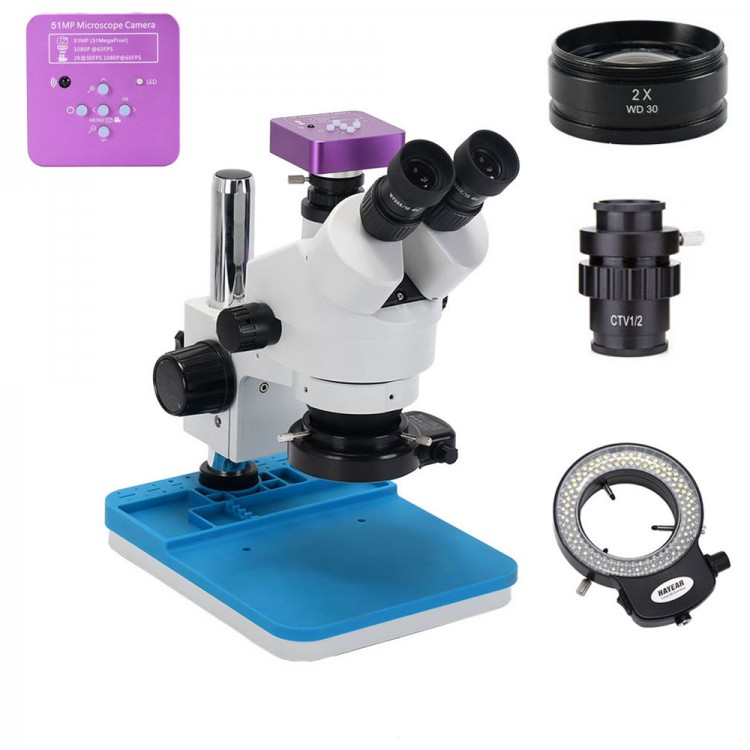

7X-90X Trinocular Stereo Microscope Kit w/ 51MP Microscope Camera For Soldering PCB Jewelry Repair

7X-90X Trinocular Stereo Microscope Kit w/ 51MP Microscope Camera For Soldering PCB Jewelry Repair

Description:
This stereo microscope has a 144-LED ring light that offers super widefield optics and 7X-90X zoom magnification power with a cool light illumination system. It is an ideal instrument for industrial inspection and/or biological lab applications. This microscope is perfect for gemologists, manufacturing engineers, dental lab technicians, and anyone in electronic and semiconductor industries.

Features:
- An excellent stereo inspection microscope with intensity-adjustable 144-LED ring light
- 7X-90X zoom magnification power
- Bright cool light 144-LED illumination system
- High resolution with great flatness and contrast, giving sharp and clear images
- Binocular head with 45 degree inclined 360 degree swiveling eye tubes
- Sharp stereo erect images with a wide field of view
- Crystal clear original true color microscope images
- Dual eye tubes with adjustable diopters
- Large working distance
- Sturdy all-metal table stand
- Accurate alignment reduces eye strain for longer periods of viewing
- Full optical glass elements
- Precise ground glass lenses
- Full metal chrome-plated mechanical components
- Adjustable interpupillary distance
- Rubber eye-guards included

- Head: 360 degree rotatable 45 degree inclined binocular
- Eyepieces: 30mm super widefield high-eyepoint WF10X/20MM
- Objective Zoom Range: 0.35X-9.0X, using the lenses for Barlow
- Working Distance: 4" (100mm)
- Diopter Adjustment: +/- 5dp
- Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
- Round Plate: 3-3/4" (95mm) in diameter
- Stand: 10" x 7-7/8" x 10.75" (254 x 200 x 275mm)
- Illumination: 56-LED Ring Light
- Power Supply Input: 110-240V, 50-60HZ, Automatic Switching
- Accessories: Paired eye-caps
- Weight: 5.5kg

Camera's Features:
- Sensor for Panasonic: 51 million pixels for CMOS
- Optical format: 1/2.3 inch
- Pixel size: 1.335μm x1.335μm
- Interface: HDMI (Type A). USB (Type B). TF Card
- HDMI Image resolution: 51MP
- Video record resolution: 2K at 30FPS; 1080p at 60FPS
- HDMI resolution: 1920*1080p, 60FPS
- Can output with USB at the same time
- HDMI scale:Support 4:3, 16:9, 16:10 screen
- USB2.0 (Drive free): 1920*1080 at 30FPS; 1280*720 at 30FPS; 640*480 at 30FPS
- TF card: MAX. 128GB
- AWB: WB color correction/Automatic/Manual
- R.G.B value setting independent
- Exposure: Automatic/Manual. AE value can set
- Cross lines: 8 lines. Can set color & width & position
- Scale mark lines: 2 lines
- Dotted lines: 2 lines. Can set color & width & position
- Sharpness Contrast Color gain: Support
- Mono Negative: Support
- Mirror: Horizontal vertical mirror
- Language: English/simplified Chinese
- Digital Zoom: Support
- IR remoter: Support
- Voltage in: DC 12V 55-21mm size
- Power consumption: MAX. 0.15W 12V, 0.12A
- Lens interface: C/CS
- Net weight: 180g
- Camera size: 70*70*35mm

Questions & Solutions:
LCD no video or flicker
1.Check power supply. Check red LED be onlight. Press Power Key to Up it
2.Check lens cover. Increase the lighting

LCD have black bar Image warp
1.Change resolution of LCD
2.Change resolution of camera

Have dirty spot
1.Check camera and lens, find the dust, then clean using absolute ethyl alcohol or cleanser

Package Included:
- 1 x Set of Industrial Microscope
