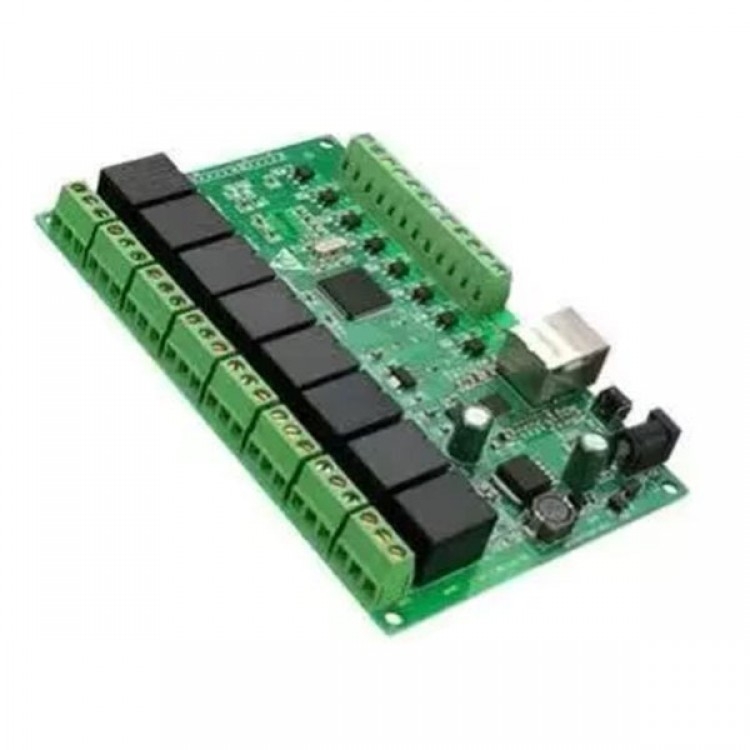

8 Channel 250V AC10A Relay Network IP Relay Web Relay Dual Control Ethernet RJ45 Interface Board Module

8 Channel 250V AC10A Relay Network IP Relay Web Relay Dual Control Ethernet RJ45 Interface Board Module

Feature:
- Ethernet RJ45 interface.
- Onboard WEB server, you can access and control through the web .

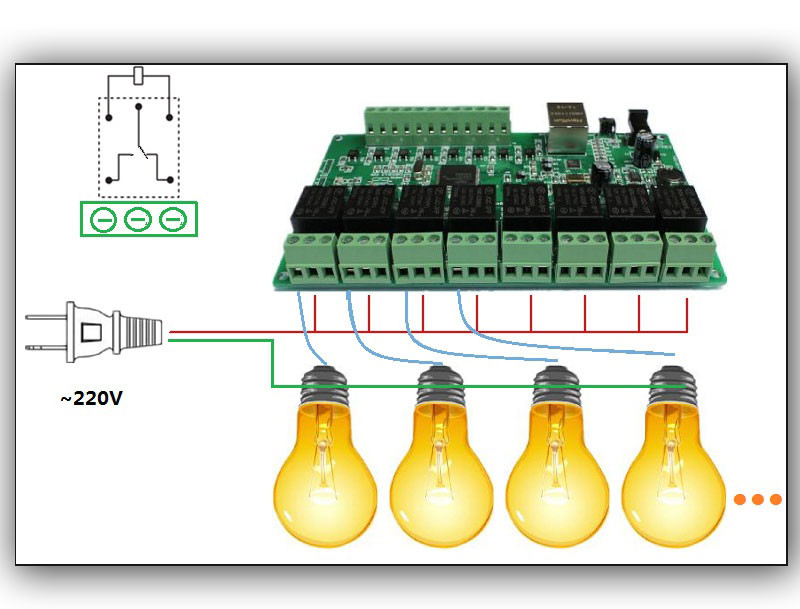

- 8 channel 250V / AC 10A independent output relay , relay output line tin layer thicker .
- 8 Road stem node ( passive / active ) input, you can directly control the relay output.
- 9-35V DC power supply, and with self- recovery fuse.

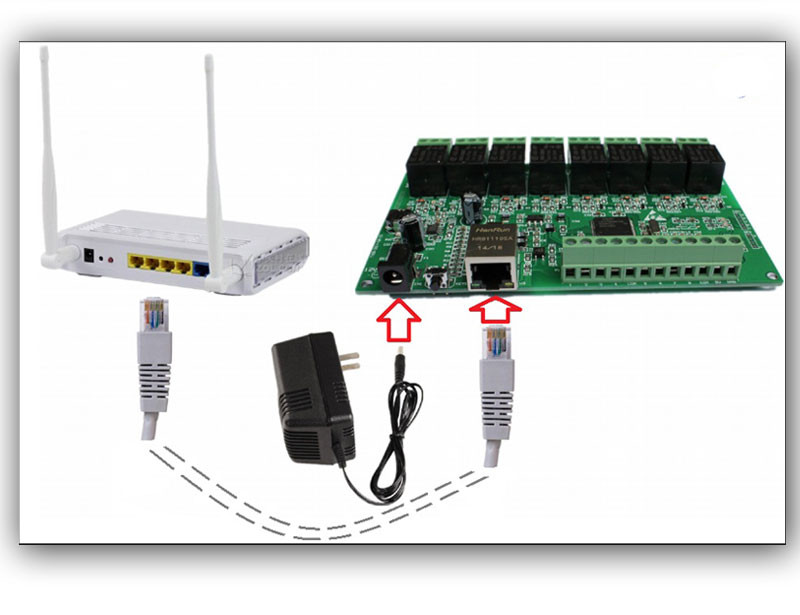

- Can pick a router, access control via Android , for Apple, tablet , windows system
For Apple systems , and can be controlled in the world can access any one place .
- Support state return , you can display the current status of the real-time relay
- A key parameter to restore the parameter setting error or forgotten password can not connect to the network, you can use a key parameter to restore.

Firmware V5.0.5 update:
- Modify web pages , more humane, add fully open, fully closed operation
- Optimized mobile access , mobile phone screen adaptation,big screen small screen are suitable ;
- Deepen memory pool , speed up response ;
- Repair IE, 360 and other browsers can not control and garbled bug, yet even UCweb browsers such agents can be used ;
- Adding touch capabilities, and you can set the time for touch 1-255s
- Add for mac modify , easy LAN networking ;
- Relay power-down state memory function, the function can be configured ;
- Inputs and outputs can be configured association ;
- Firmware V5.0.6 update :
- Secondary development can modify TCP port ;
- Can modify the HTTP port , port mapping easier to solve the 80 and 8080 ports are shielded telecommunications issues

V5.6 update:
- Optimize the power supply design, increase the input power range and improve the stability.
- Increase TCP Modbus Protocol
- Increase the touch input and switch the level mode input
- Support scenarios
- Support both Chinese and English

V5.7 update:
- Support 9-35V power input to optimize the previous power supply to meet the needs of more industry, reduce ripple
- Greatly improve the performance of Ethernet, put an end to the network crash
- Support UDP mode control, control instructions consistent with TCP
- Through the software restart, you can restart the operation of the device through the web (usually used to modify the parameters after the restart)

V5.7.3 update:
- Support 1-65536s touch point, web page can be configured, and commands can be configured
- Support command settings
- Support command restart device
- Support command input and output relationships

Package Contents:
- 1 x Relay module
- 1 x Power supply
