| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $356.69 | $349.41 | $338.49 | $323.93 | Contact US |
Description:

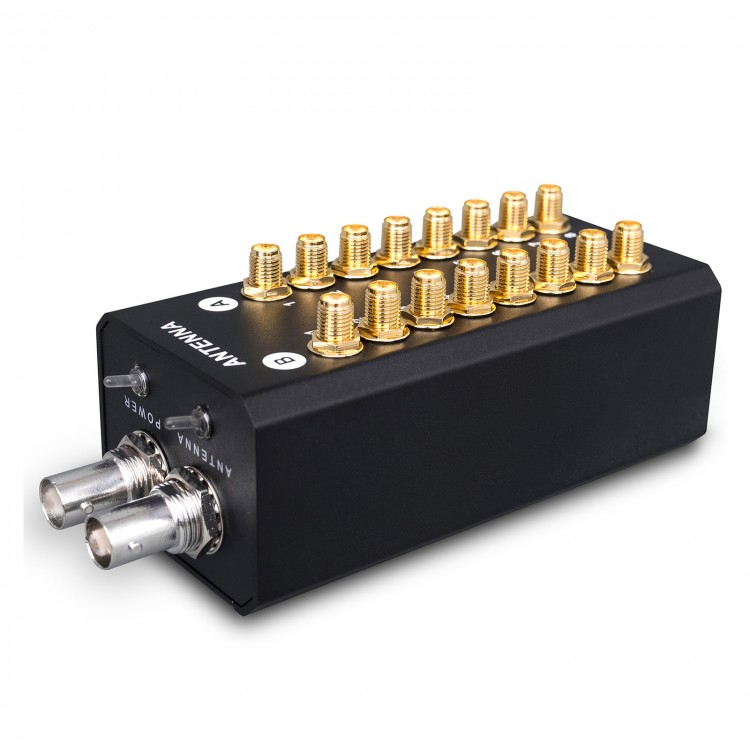

- RF Multi SMA is the antenna distributor which is very convenient to operate.
- Two BNC input socket can connect two 500-950MHz active antenna ,and every BNC socket can distribute eight SMA output socket to connect the antenna socket of the wireless receiver. So two BNC input socket can distribute total 16SMA output socket , two group1X8 RF distributor.
-- There are two power switch on the RF Multi SMA , one is the power main switch of the distributor , the other is the power supply switch of the active antenna,In additional to this ,there is also a 4 Pin Hirose power socket of the RF Multi SMA , can use with the power supply which in 10V -15VDC range . (Notice : Be used with caution the 14.4V lithium battery cause the output voltage will be slightly high when starting up with the lithium battery , it is possible to cause damage to the equipment.
Specification:
- Carrier frequency band: 500-950MHz
- Connector Type of the antenna input: BNC
- Connector Type of the antenna output: SMA
- Impedence: 50Ω
- Maximum input signal: +13dB
- Output external power supply: DC 12V 120mA
- Antenna Type:directional antenna
- Receiver support:8 Sets
- Gain:6db typical
- Direction:Oval 180 degree typical
- Direction Polarity:Vertical
- Connecting terminal: Fixed right-angle BNC pcb jack
- Structure:glass copper and copper film coating
