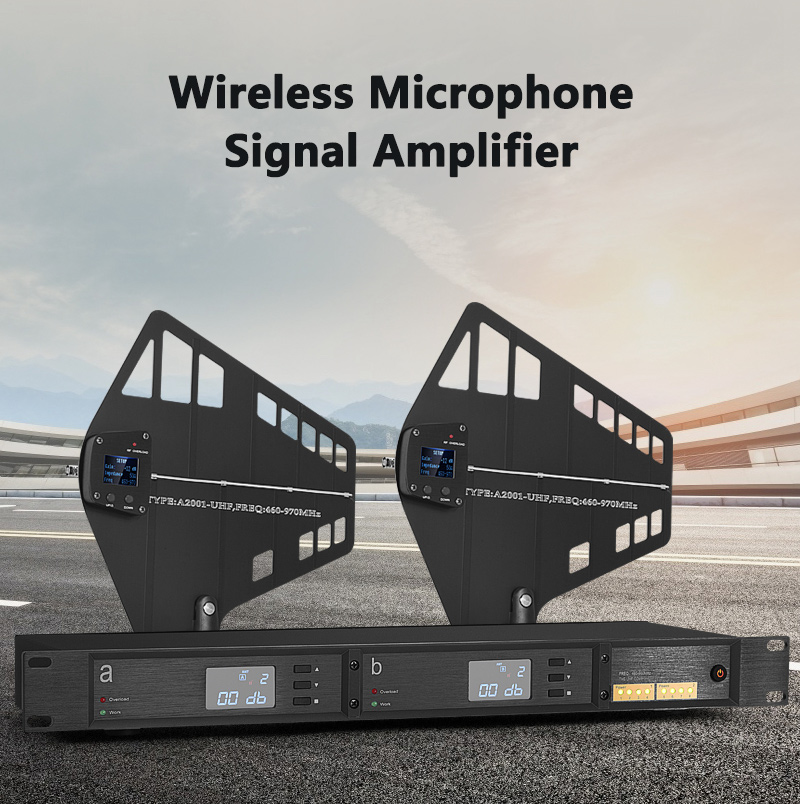

16-Channel 500M/1640.4FT UHF Antenna Distribution System Microphone Signal Amplifier for Performance

16-Channel 500M/1640.4FT UHF Antenna Distribution System Microphone Signal Amplifier for Performance

Features:
- Wireless microphone signal amplifier: The signal receiving distance can be extended to 500m/1640.4ft, making the signal more stable and uninterrupted.

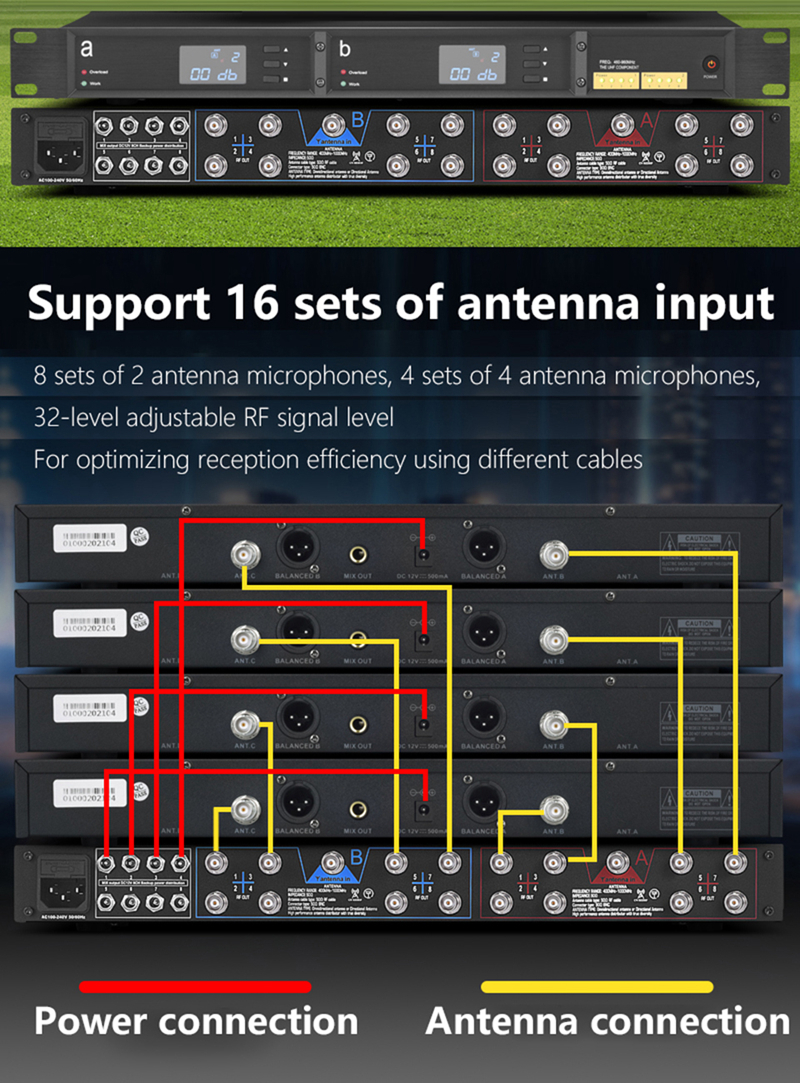

- Supports 16 sets of antennas: Supports eight dual-antenna microphones or four quad-antenna microphones. 32-level adjustable RF signal levels. Optimize reception efficiency when using different cables.

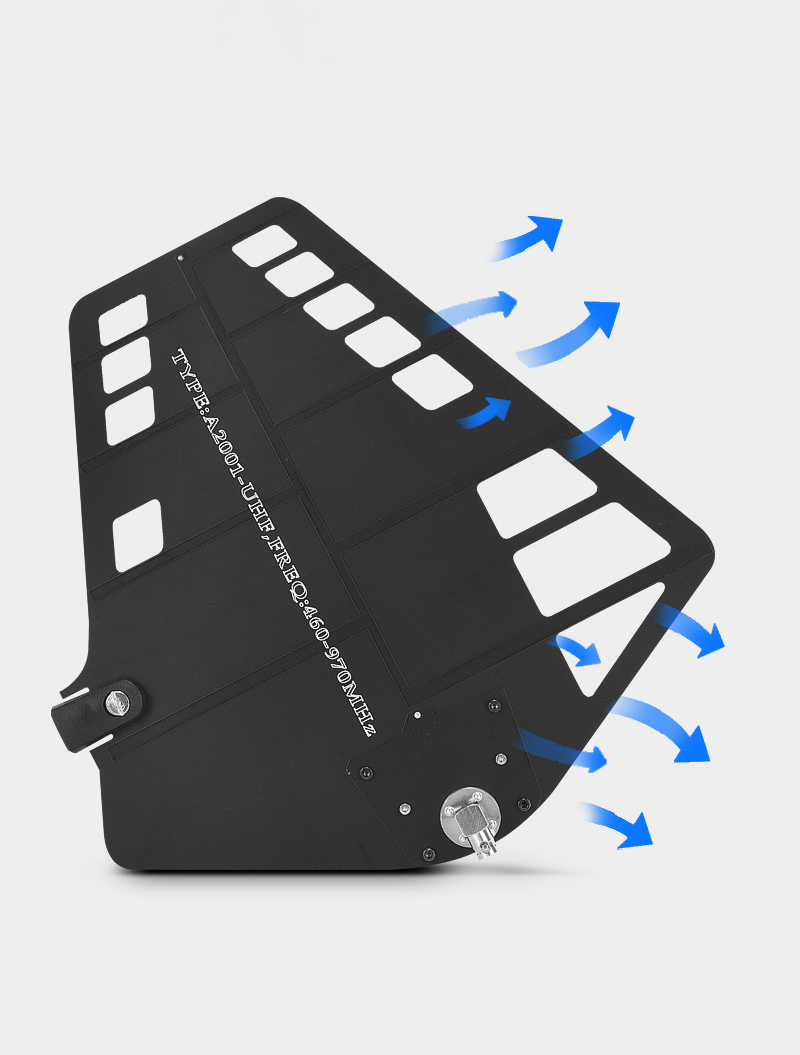

- 360-degree signal reception: The signal reception range is enhanced to 500m/1640.4ft, and the signal transmission of the microphone is more stable and less prone to frequency interruption. It can provides better reception when targeting the desired coverage area.

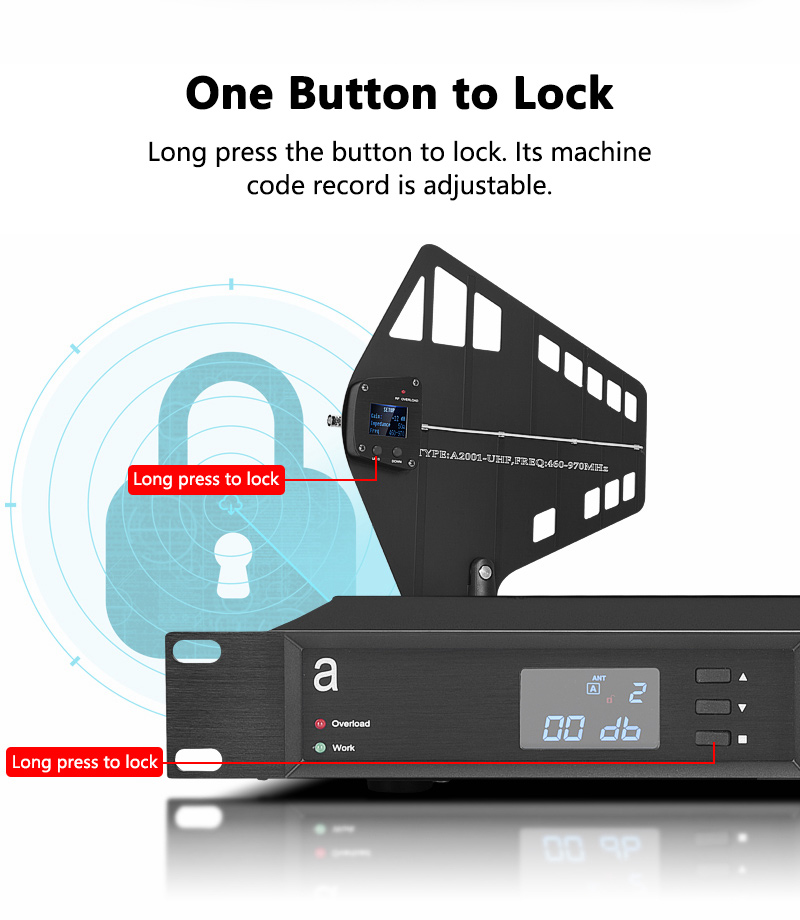

- Lock function: It can be locked by the square button on the panel: just press and hold the square button. Its machine code recording is adjustable.
- Antenna with enlarged fan-span design: The wingspan is durable, corrosion-resistant, UV-resistant, shock-resistant and lightweight, and remains stable for a long time in different environments.

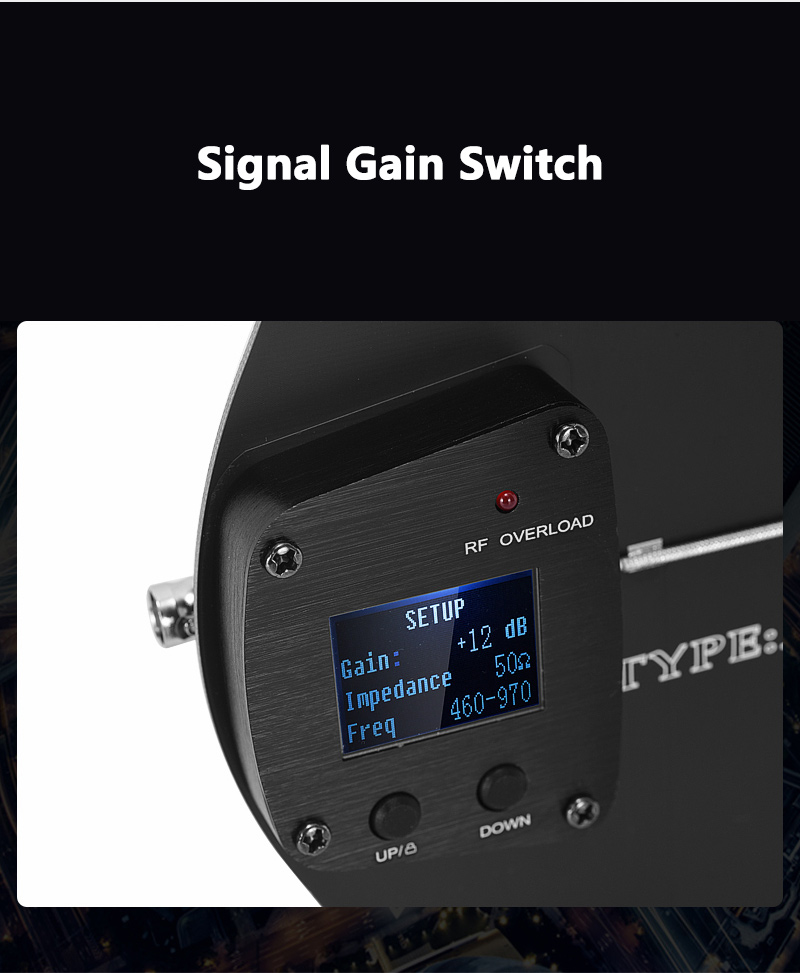

- Signal gain: The integrated amplifier has two gain switches to compensate for different levels of coaxial cable signal loss.
- Industrial grade standard material: Constructed of industrial-grade glass copper and copper coating, the antennas are shockproof, durable and UV-resistant. Therefore, they can work stably for a long time in different environments.
- Strong compatibility: The receiving frequency band is UHF 450-950MHz and is compatible with all types of wireless microphones.

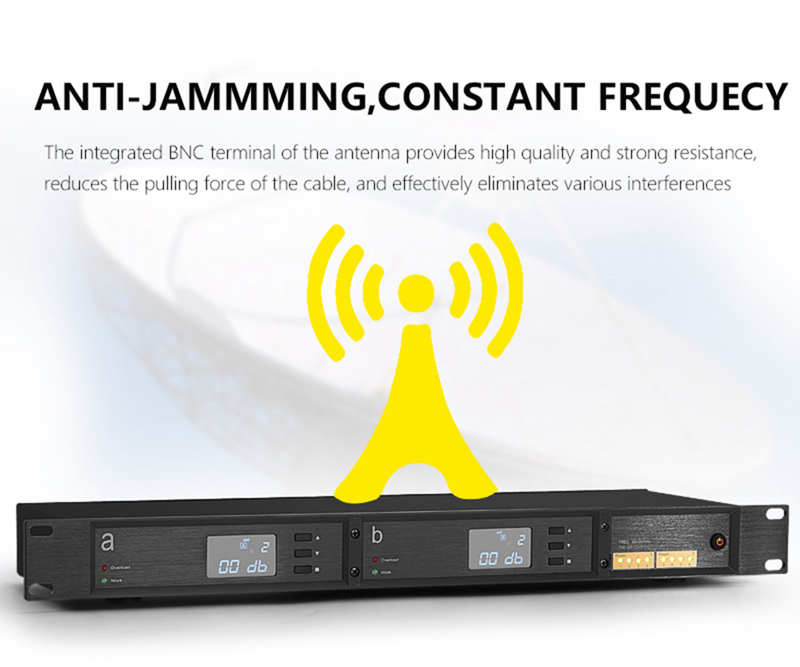

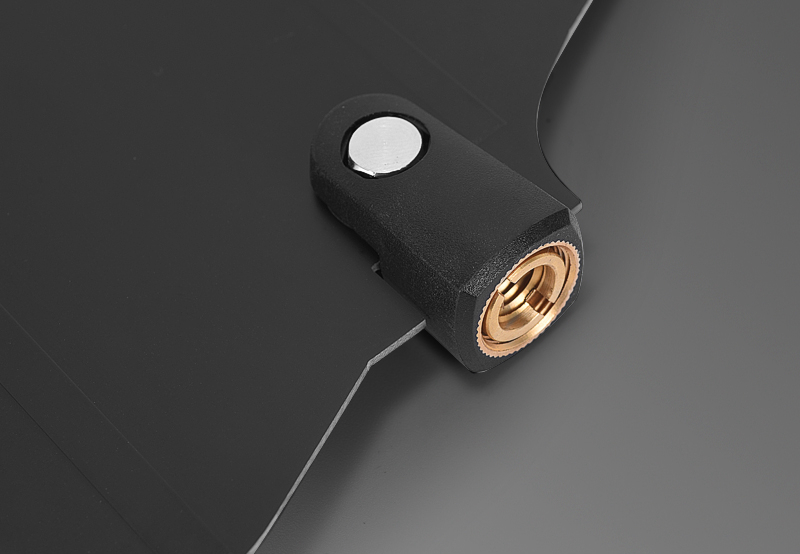

- Anti-interference, with frequency disruption: The antenna integrated BNC terminal is high quality. It provides strong resistance, reduces the tension of the connecting wire, and effectively eliminates all kinds of interference.
- Application scenarios: Widely used in award ceremonies, indoor and outdoor performances, and distant broadcasts.

Specifications:

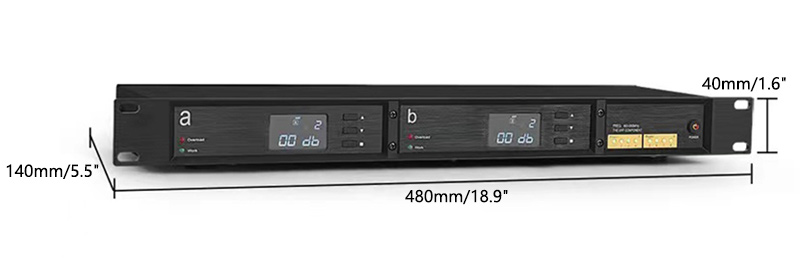

Antenna Amplifier:
- Frequency: UHF 450-1000MHz

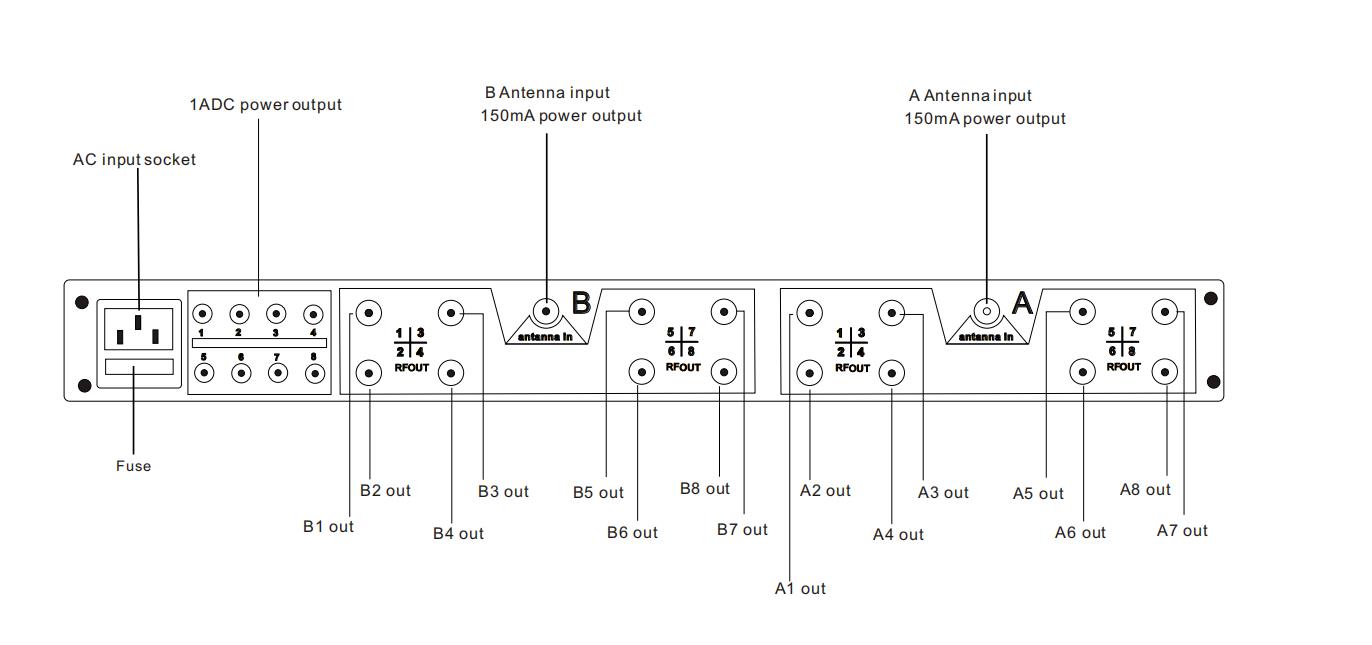

- Channel: 2*8 (16 channels) output
- Interface: B-type female
- 3rd Order Intermodulation Intercept Point: +38dBm (typical)
- Power output: DC8*1A
- Input/output impedance: 50 ohms

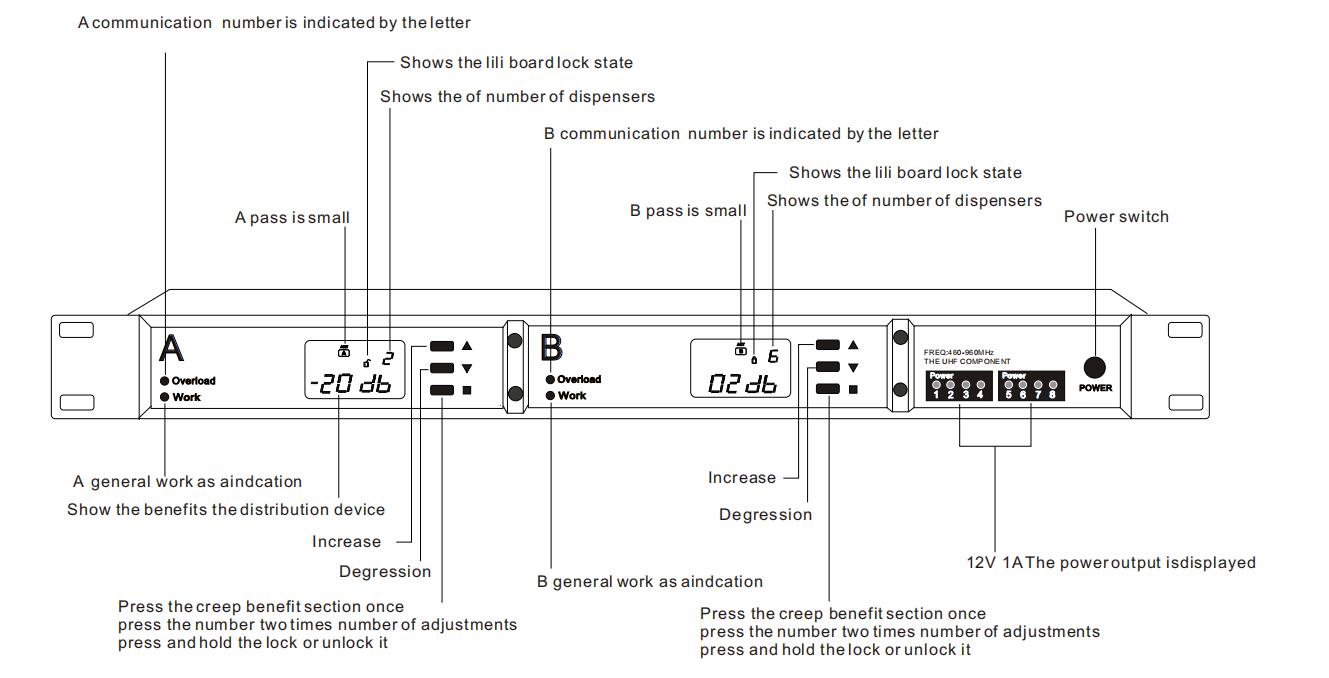

- Display mode: high-definition LCD display
- Gain (32 adjustable steps): -24dB to +6dB in 1dB steps
- Gain flatness: ±1dB
- Input power: AC 100-260VAC/T2A 47-63Hz

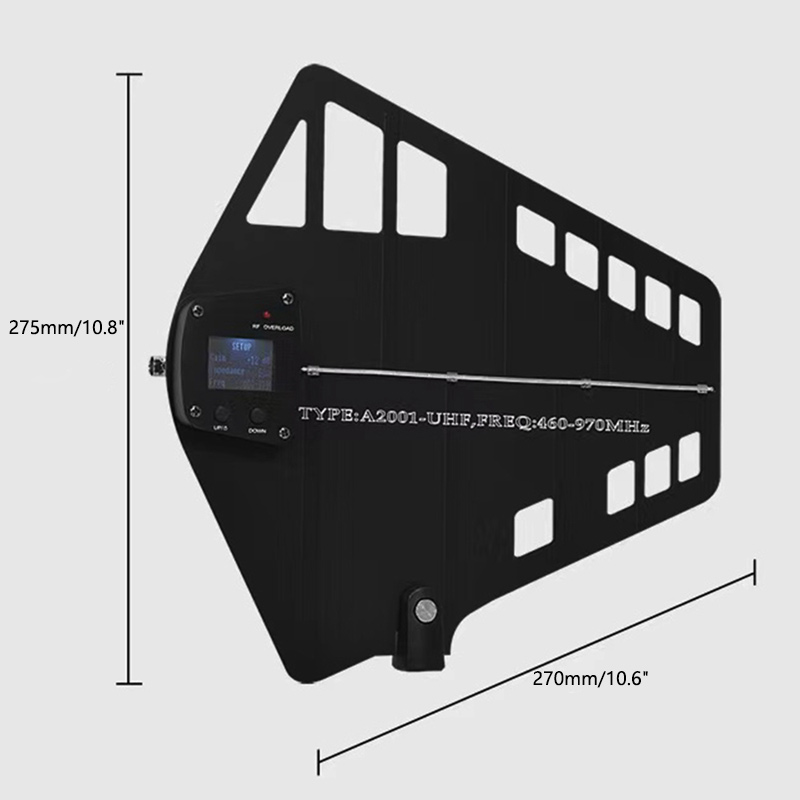

Antenna Parameters:
- Frequency: UHF 460-970MHz
- Display mode: high-definition array LCD screen
- Control switch: Touch a button
- Interface: B-type female
- Output impedance: 50 ohms (SWR<=1:1.5)
- Gain (max): 12dB
- Radiation angle: 90 degrees
- Integrated NC adjustable: -6 to 12dB
- 3rd Order Intermodulation Intercept Point: +45dBm (typical)
- Gain flatness: ±1dB
- Power supply: +9V to 12V (typical), 150mA

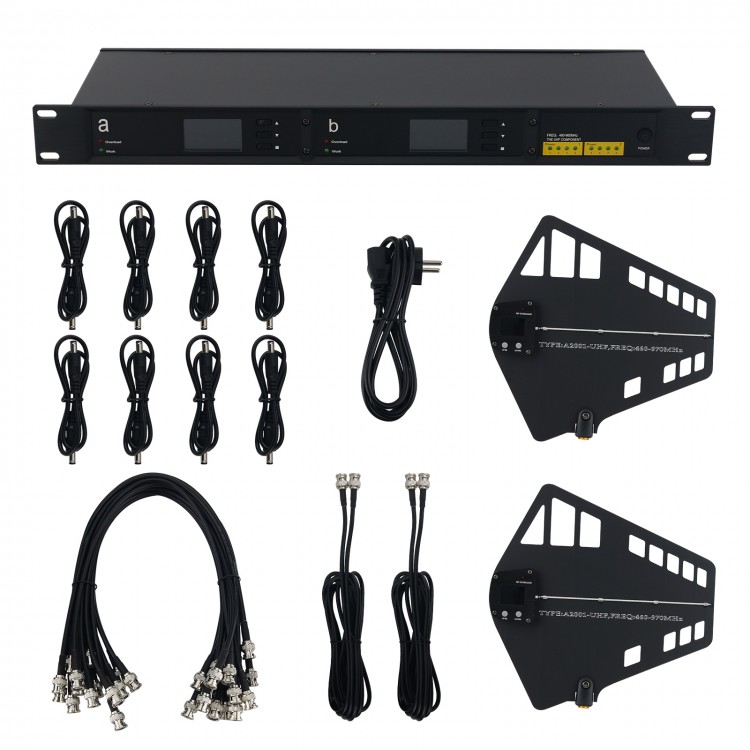

Package Included:
- 1 x Antenna Amplifier
- 2 x Antennas
- 1 x Power Cable
- 4 x 12V Power Cords
- 8 x TNC Connecting Cables
- 2 x Antenna Connecting Cables
