SHURE UA844 UHF Antenna Distribution System + UA874 Antenna Supporting Four Wireless Microphones

SHURE UA844 UHF Antenna Distribution System + UA874 Antenna Supporting Four Wireless Microphones

Features:
- Wireless microphone signal amplifiers can effectively extend the reception distance of microphones
- It strengthens signals and stabilizes the frequency without frequency interruption. The devices can be used for large shows
- Signal stability: anti-interference without noise
- Signal boosting: The coverage area can reach 1000m/3280.8ft
- Gain effect: It can receive and transmit signals in 360°, rejecting signal blind spots
- Fan-like antenna: make the signal receiving area larger
- 5CH wideband: Suitable for all kinds of 470-952MHz UHF microphones. It can at least enhance the receiving distance by over 500m/1640.4ft, so that you no longer have to worry about frequency interruption. Remotely mounted antennas have no device restrictions. The antennas can be placed anywhere within the recommended extension length to establish a wider radio reception range
- Brushed metal panel and metal body. Simple operation with one switch
- Signal gain: Based on the data displayed on the receiver's RF indicator or level meter, the user can adjust the optimal gain in the current environment
- Industrial standard material: Antennas are constructed of industrial-grade glass copper and copper coating. The antennas are shockproof, durable and UV resistant. Therefore, in different environments, the antennas can work stably for a long time

Antenna Distribution System:
- Carrier frequency range: 500-950MHZ
- Antenna input connector: BNC
- Antenna output connector: SMA
- Input/output impedance: 50Ω
- Maximum input signal: +13dB
- External power supply: DC12V 120mA
- Overall size: 48 x 32 x 5cm/18.9 x 12.6 x 2"

Active Directional Antenna:
- Antenna type: Log-periodic dipole oscillator array
- RF frequency range: 470-960MHZ
- Working voltage: 10V DC
- Output impedance: 50Ω
- Output connector: BNC
- Antenna gain: 75dBi
- Size: 36 x 34 x 3cm/14.2 x 13.4 x 1.2" (LxWxT)

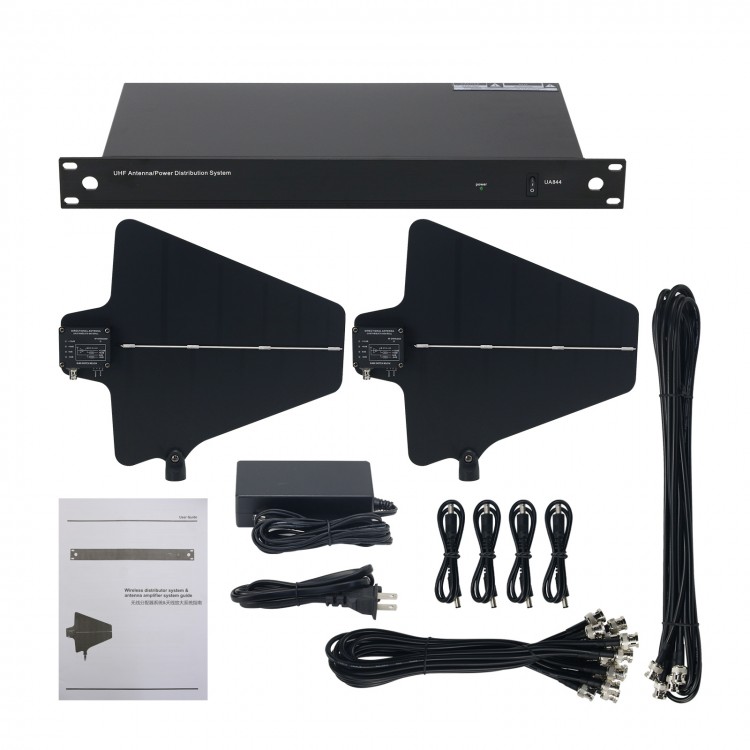

Package Included:
- 1 x UHF Antenna Distribution System
- 2 x Antennas
- 1 x Power Cable
- 2 x Cables for Antennas
- 10 x Cables for Main Unit of Wireless Mic
- 4 x DC Power Cables
- 1 x User Manual
