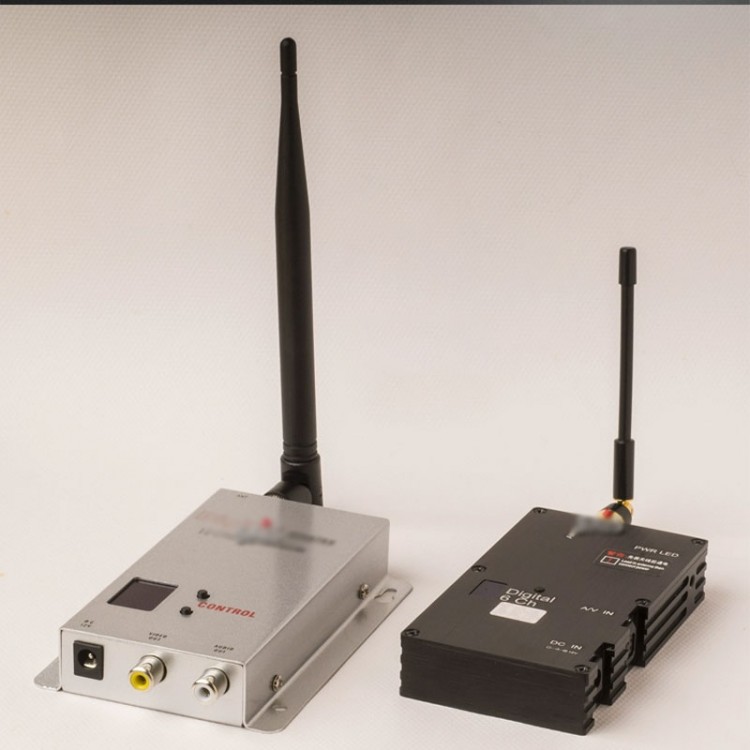

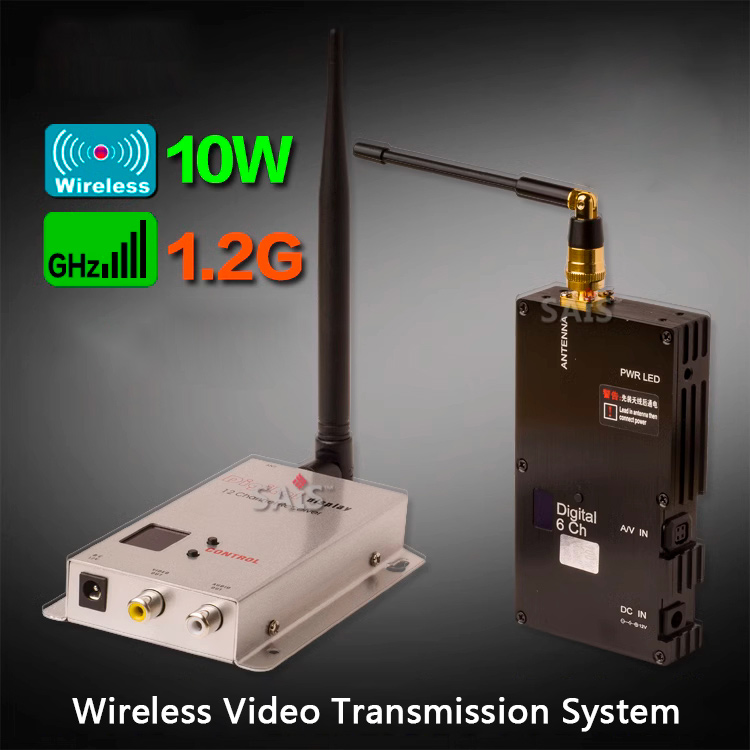

SS-1.2G-10W Wireless Video Transmitter Receiver Long Range FPV Transmitter Receiver TX RX Modules

SS-1.2G-10W Wireless Video Transmitter Receiver Long Range FPV Transmitter Receiver TX RX Modules

Features:
- 10W 1.2G long range FPV transmitter receiver
- Components imported from Taiwan
- Convenient to carry the wireless video transmission system
- 1000mW transmission power
- 1.2GHz wireless audio and video transmitter and receiver with digital display
- Transmitter and receiver can be used in pairs on the same channel, which is convenient for making videos
- Strong anti-interference and penetration, small image and sound distortion without delay, no wiring
- Compatible with audio and video output devices such as DVD, DVR, camera, IPTV, satellite set-top box, and digital TV set-top box; for monitoring and home audio and video transmission
- The image received wirelessly is clear and stable, the colors are gorgeous, and the sound quality is clear and noise-free
- Supports PAL/NTSC video and audio transmission
- Full hardware design and no need to install software. Just plug and play. Simple and convenient
- Transmission distance: 300-5000m/984.3-16404.2ft (depending on the specific use environment)
- High-power, long-distance and enhanced signal transmission
- 8 TX channels and 12 RX channels

Tips:
1. The larger the transmission power, the larger the relative volume of the product, the farther the signal transmission distance, and the higher the temperature of the product.
2. Due to the large power of the transmitter, the heat is higher, which is common sense and is normal! Buyers can install cooling fans or install aluminum shells and other ways to cool down, or wrap thin wooden boards, heat insulation bags and others to insulate to prevent burns!

Functional Characteristics:
The wireless audio and video transmission equipment is a product with excellent performance in all aspects, with large power margin and low current consumption. With small size and long transmission distance, it is more suitable for various complex practical environments. When using a 5dB omnidirectional antenna (i.e., Taiwan's original small antenna), it can transmit about 5000m/16404.2ft in the open space. If it is connected to a high-gain directional antenna, the distance can be increased by more than 2Km, and it can also transmit about 600-800m/1968.5-2624.7ft in the case of general urban blocking, and it can also reach a distance of 200-500m/656.2-1640.4ft in an environment with more complex buildings and walls.

Performance Characteristics:
1. Due to wireless transmission mode, there is no need to erect communication cables
2. Synchronous transmission of images and sounds. Compatible with color and black and white
3. Miniaturization and light weight makes it easy to carry and to install
4. Rapid and timely response and real-time transmission of sending and receiving without delay
5. Frequency modulation mode, strong anti-interference ability, and good image quality
6. High integration, stable and reliable work and long transmission distance
7. There is no need for complex wiring. Simple to operate and easy to use

Basic Parameters:

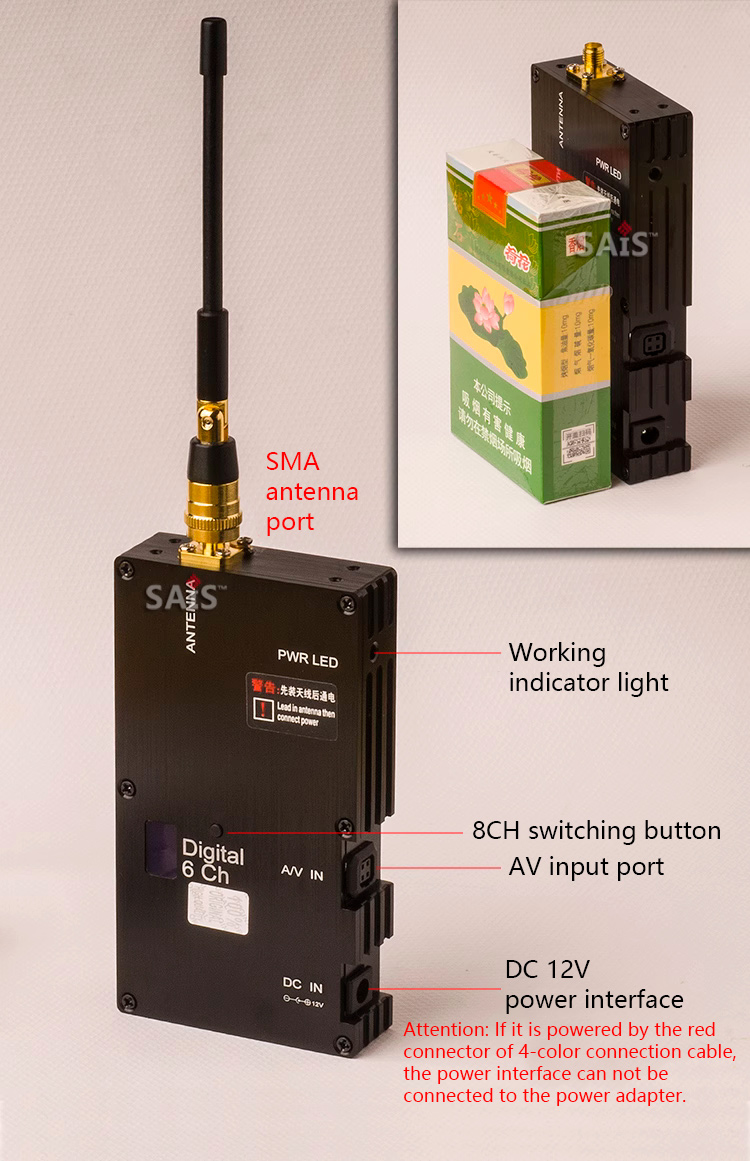

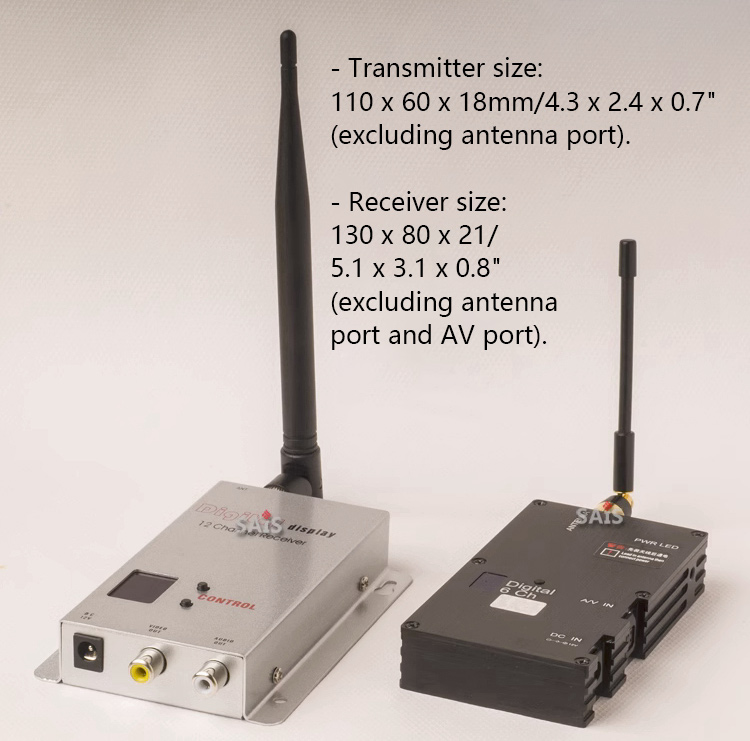

- Transmitter size (HxWxThickness): 110 x 60 x 18mm/4.3 x 2.4 x 0.7" (excluding antenna port)
- Transmitter weight: 0.22g/0.5lb

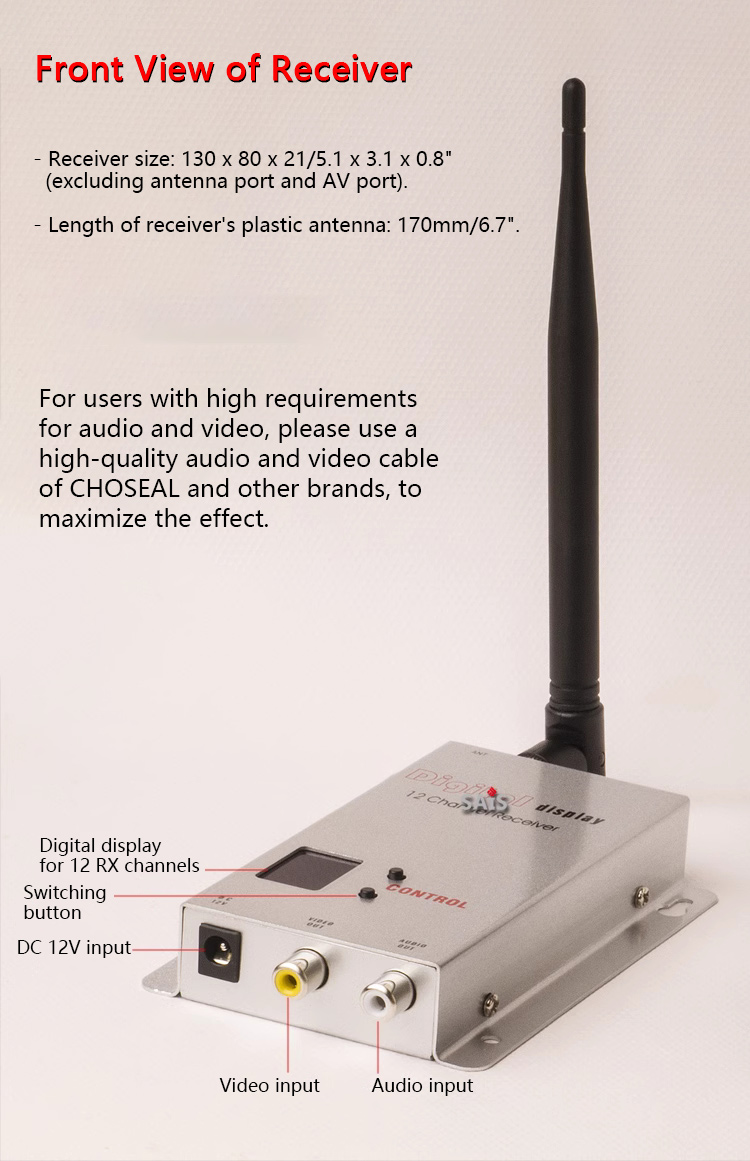

- Receiver size: 130 x 80 x 21/5.1 x 3.1 x 0.8" (excluding antenna port and AV port)
- Length of receiver's plastic antenna: 170mm/6.7"
- Receiver weight: 0.13g/0.3lb

Attention:
- The transmitter uses a DC 12V 2A power adapter, and the receiver uses a DC12V 1A power adapter. Pay attention to the labels on the back of the power adapters!

Technical Parameters:
- Band: L-Band (Shortwave)
- 1.2G frequency: 1080-1280 MHZ
- Number of TX channels: 8CH (4: 1080MHZ, 5: 1120MHZ, 6: 1160MHZ, 7: 1200MHZ, 8: 1240MHZ, 9: 1280MHZ, H: 1320MHZ, C: 1360MHZ) (Tips: According to the customer's own specific usage environment and interference situation, please choose to switch the appropriate channel until the test effect reaches the ideal)
- Antenna input impedance: 50Ω
- Dual sound sub-carrier frequency: dual sound 6.0MHz/6.5MHz
- Video input impedance: 75Ω
- Audio input impedance: 600Ω
- Working voltage: DC12V
- Operating current: 1200mA
- Output power: 10W
- Working frequency: 1.2G
- Transmission distance: 5-6KM (outdoor high-power and high-gain antennas need to be added, and the transmission distance will vary depending on the obstacle blocking and interference)

Installation Method:
1. The working channel of the receiver and the working channel of the transmitter should be the same.
2. Use an AV cable to connect a TV or a monitor to the audio and video output port of the receiver.
3. Install antennas before powering on the transmitter and receiver!
4. Connect the corresponding power adapters. The indicator lights of the power adapters will turn on. After the transmitter and receiver are installed, observe the image output of the receiver by adjusting the antenna angle of the transmitter or receiver until the sound and image are good.
5. Before powering on, please be sure to install the antennas dedicated to the machine, and try to keep the antenna upright when using it to achieve better transmission effect.
6. Be sure to use the power adapters provided by us to avoid damage to the device.
7. This product adopts L-band frequency and four channels. It transmits audio and video signals and has good anti-interference performance, which is completely solved for the black screen phenomenon caused by high-power walkie-talkies and other voice communication equipment interfering with traditional video transmission equipment.
8. Its circuit is optimized and upgraded, using a new encryption chip circuit.

Note:
- This system includes 1 transmitter and 1 receiver, and the receiver with the "RECEIVER" logo is the receiver. Please use the original antennas for transmission and reception, and do not use your own antennas, otherwise the transmitter will not work normally.

Package Included:
- 1 x Transmitter
- 1 x Receiver
- 1 x 12V 1A power adapter for receiver
- 1 x 12V 2A power adapter for transmitter
- 2 x Antennas
- 1 x AV cable

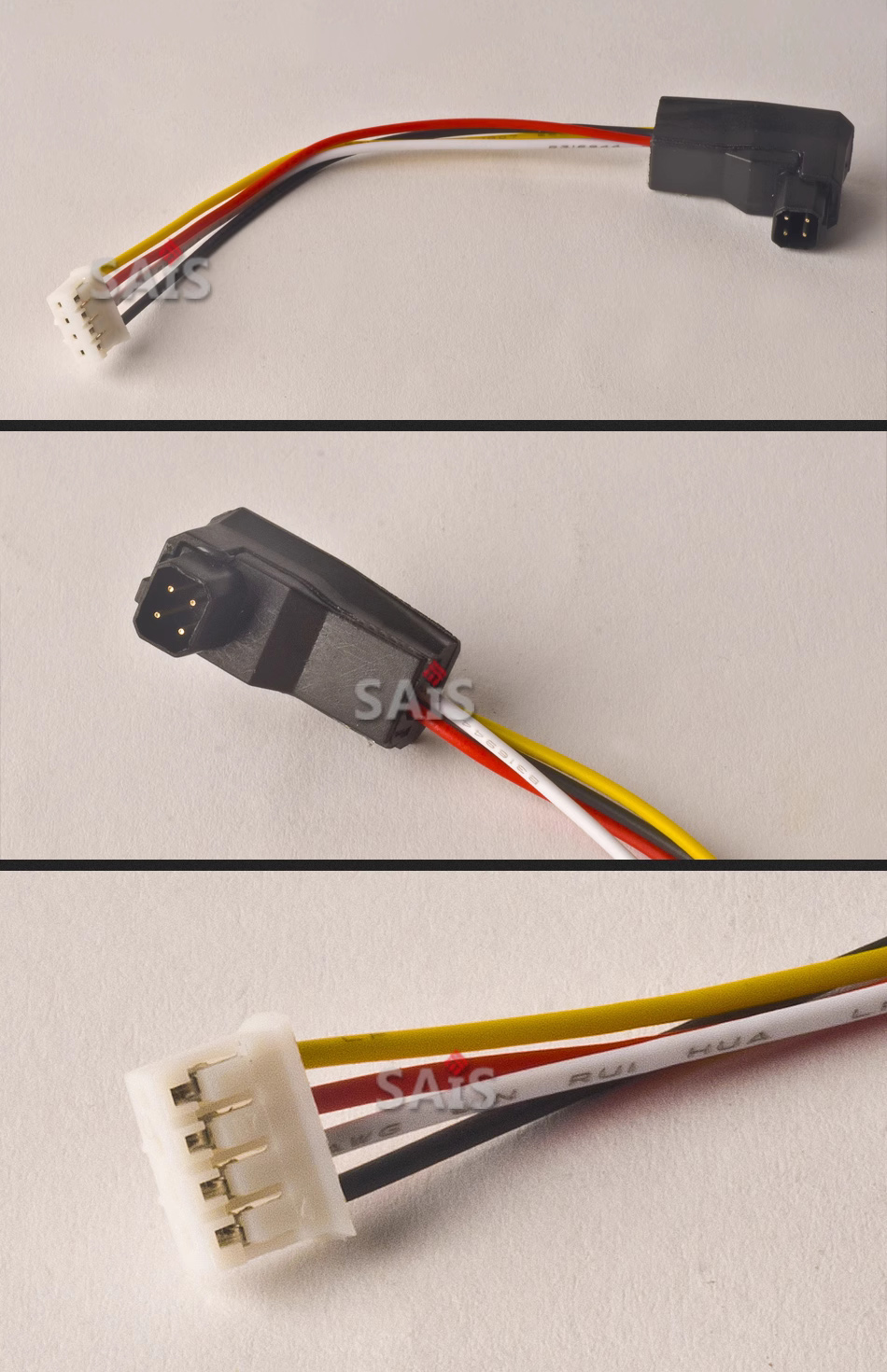

- 2 x Adapter cables
- 1 x Back clip
- 1 x User manual

Packaging Details:
- G.W.: 1.6kg
