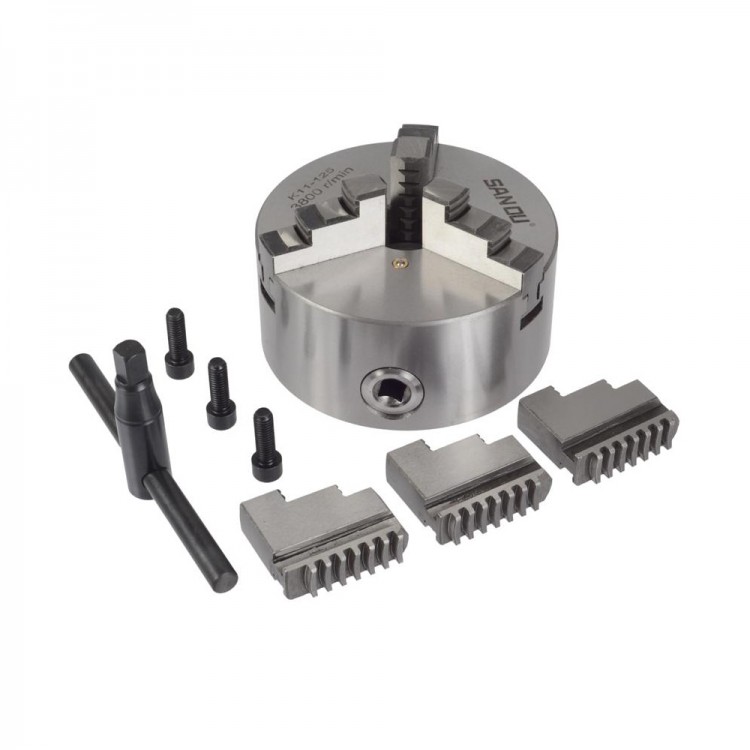

80mm 3-jaw Lathe Chuck Self-centering for Machinery

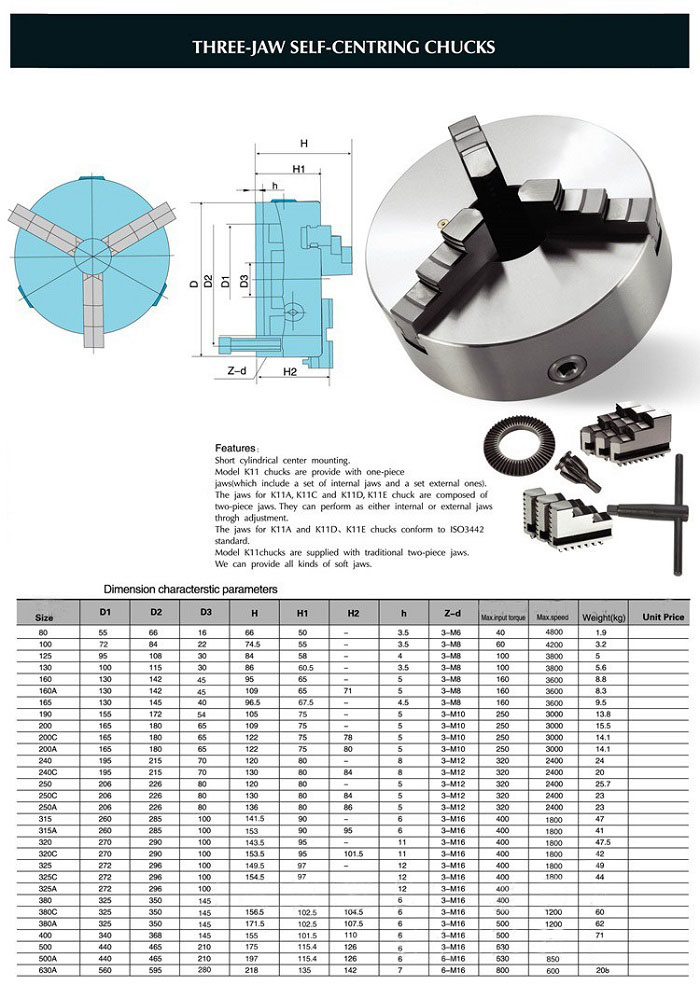

Product details:
- Short cylindrical center mounting
- Model K11 chucks are provided with one-piece jaws (which include a set of internal jaws and a set of external ones).
- The jaws for K11A, K11C, K11D and K11E chucks are composed of two-piece jaws. They can be used as either internal jaw through adjustment.
- The jaws for K11A and K11D, K11E chucks conform to ISO03442 standard.
- Model K11 chucks are supplied with traditional two-piece jaws.
Specifications:
- Item Name: 3-jaw Lathe Chuck
- Material: Harden Steel for Jaw + Cast Iron for Chuck
- Max RPM: 4800 r/ min
- Quantity of Jaw: 3
- High Precision: ≤0.05mm
- Net Weight: 1.7kg
- Application: for CNC Drilling Milling Machine
Lathe Chuck:
- Diameter: 80mm
- Thickness: 50mm
- Center Hole: 16mm
- Bolt Circle Diameter: 66mm
- Centering Precision: 0.08mm

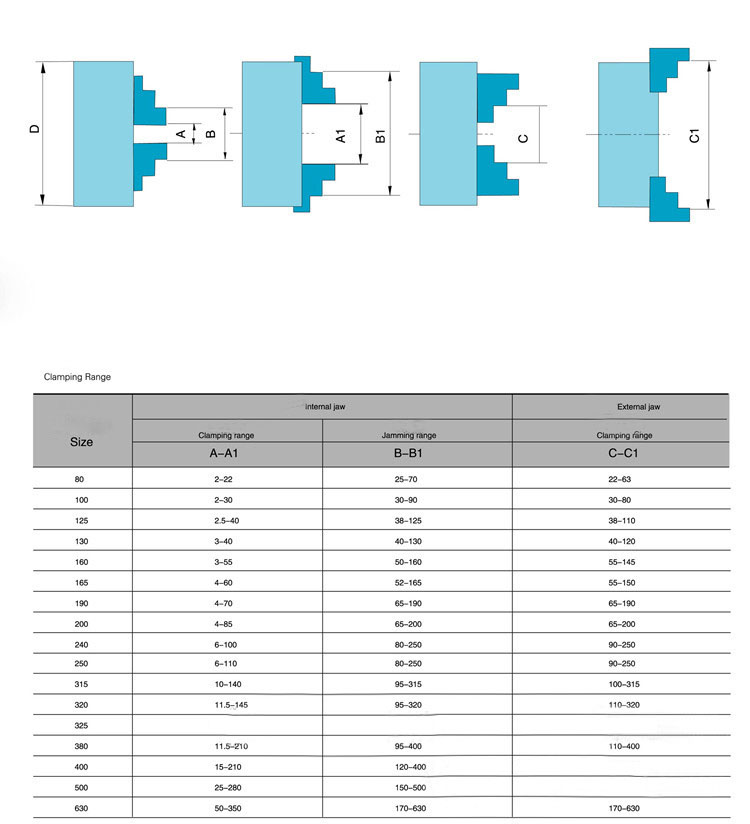

Internal Jaw:
- Clamping Range : 2-22 (mm)
- Jamming Range : 25-70 (mm)
External Jaw:
- Clamping Range: 22-63 (mm)
Package Included:

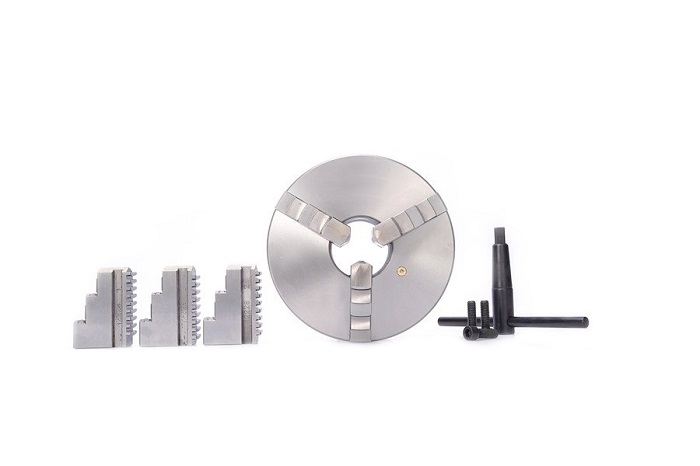

- 1 x 3-jaw Lathe Chuck with Accessories
- 1 x Package Box
