K11-100 3 Jaw Lathe Chuck 100mm Self Centering Hardened w/ Reversible Jaw

Availability: In stock, usually dispatched in 1 business day

  • Price:$78.99
  • Price in reward points: 790 Reward Points: 8
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $77.41 $75.83 $73.46 $70.30 Contact US
Quantity:

K11-100 3 Jaw Lathe Chuck 100mm Self Centering Hardened w/ Reversible Jaw


Features:
1. Short cylindrical center mounting
2. Model K11 chucks are provided with jaws(which include a set of internal jaws and a set of external ones ).
3. The jaws for K11A, K11C,K11D and K11E chucks are composed of two-piece jaws. They can perfrom as either internal jaws through adjustment
4. The jaws for K11A and K11D,K11E chucks conform to is 03442 standard.
5 .Model K11 chucks are supplied with traditional two-piece jaws.

Applicable machine tools and accessories:
General lathe, economical CNC lathes, grinding machines, milling machines, drilling and machine accessories etc..

Specifications
:
- Material:Hardened Steel
- Model: K11-100
- Max RPM: 4500 r/min
- Jaw: 3 Jaw
- High precision: ≤0.05mm
- Application: for CNC Drilling Milling Machine
- Color: Silver

Lathe Chuck:

- Diameter: 100mm(3.937")
- Thickness: 55mm(2.165")
- Center Hole: 22mm(0.866")
- Bolt Circle Diameter: 84mm(3.307")
- Runout: 0.07mm(0.003")

Internal Jaw:
- Clamping Range A-A1: 2- 30mm(0.079- 1.181")
- Jamming Range B-B1: 30- 90mm(1.181- 3.543")
- External Jaw
- Clamping Range C-C1: 30- 80mm(1.181- 3.150")

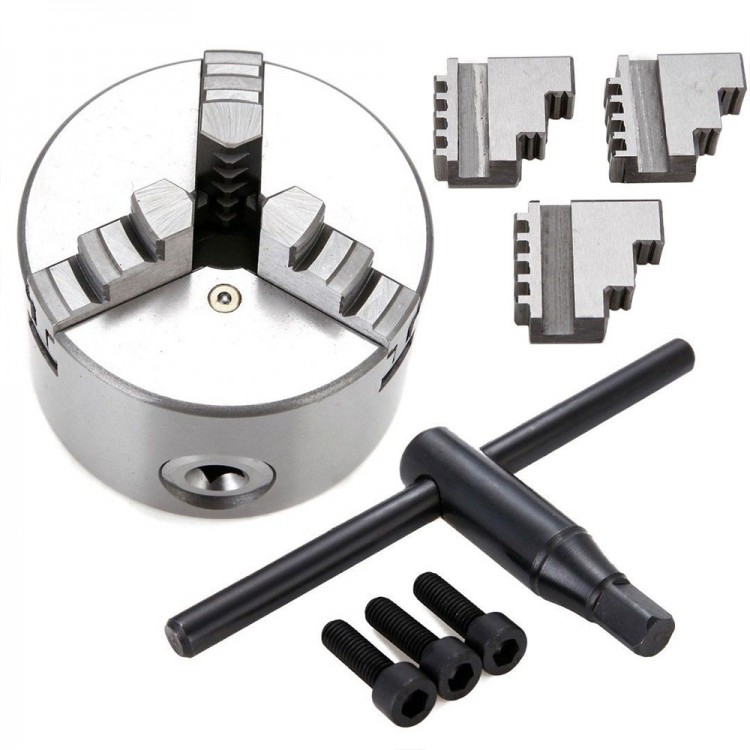

Packaged included:
- 1 x Self-Centering Jaw
- 3 x Inside jaws
- 3 x Outside jaws large
- 1 x Safety chuck key
- 3 x Mounting bolts
