Description:
SANOU K12-160 160mm 4 Jaw Lathe Chuck Self Centering with Key
Specification:
| Material | Hardened Steel |
| Model | K12-160 |
| Max Rpm | 3600 r/min |
| Jaw | 4 Jaw |
| High Precision | ≤0.05mm |
| Application | for CNC Drilling Milling Machine |
| Color | Silver |
| Lathe Chuck | |
| Diameter | 160mm(6.299") |
| Thickness | 65mm(2.559") |
| Center Hole | 45mm(1.772") |
| Bolt Circle Diameter | 142mm(5.591") |
| Runout | 0.07mm(0.003") |
| Internal Jaw | |
| Clamping Range A-A1 | 3- 55mm(0.118- 2.165") |
| Jamming Range B-B1 | 50- 160mm(1.969- 6.299") |
| External Jaw | |
| Clamping Range C-C1 | 55-145mm(2.165-5.709") |
Features:
1. Short cylindrical center mounting
2. Model K12 chucks are provided with one-piece jaws(which include a set of internal jaws and a set of external ones ).
3. the jaws for K12A, K12C and K12D chucks are composed of two-piece jaws. They can perfrom as either internal jaws through adjustment
4. The jaws for K12A and K12D chucks conform to is 03442 standard
5 .Model K12 chucks are supplied with traditional two-piece jaws.

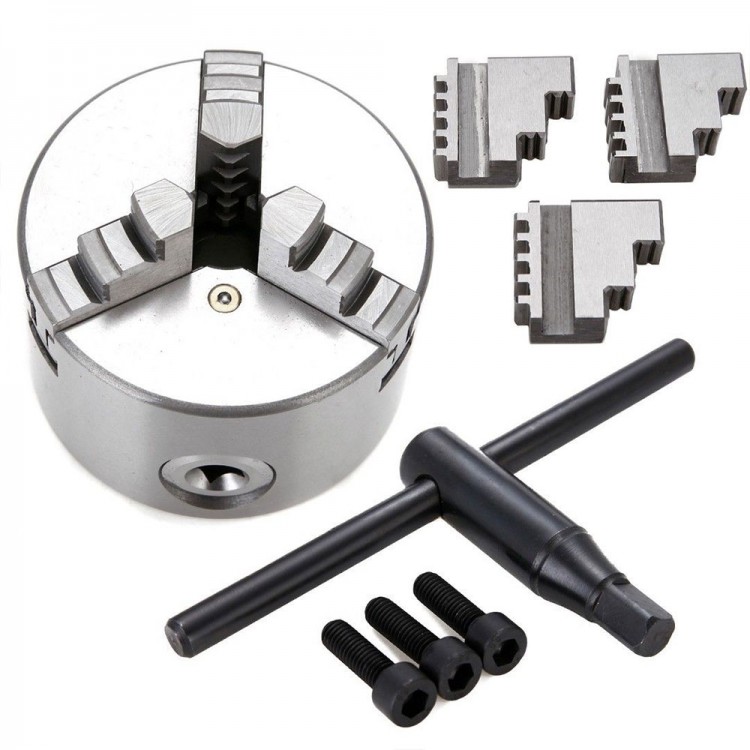

Package Included:
1 x Self-Centering Jaw
3 x Inside jaws
3 x outside jawslarge
1 x safety chuck key
3 x mounting bolts
