8CH HDMI Encoder H264 Encoder Video Card for RTMP/RTSP/HTTP TS/HTTP FLV/HLS/UDP/RTP/ONVIF

8CH HDMI Encoder H264 Encoder Video Card for RTMP/RTSP/HTTP TS/HTTP FLV/HLS/UDP/RTP/ONVIF

Description:
In growing demand for live and local coverage presents new challenges for today's broadcasters, to get low latency live video from remote locations to broadcast centers for production is a trend, it need to deliver multiple broadcast channels and other internal streams to screens anywhere, anytime, while also reducing complexity and driving efficiency across all platforms.

Video Streaming multi-screen multi-protocol Encoder are designed to meet the increasing demand for high quality video delivery to Internet and all kinds of terminal devices. Our HD H.264 eight channel IPTV Streaming Encoder supports HD/SD audio and video collecting by using 8 Channel HD HDMI-Compatible input. For signal source, each channel of HDMI-Compatible input supports output 2 groups IP streaming with two different resolution (up to 1080p/60fps) and two different bit rates to meet different size screen and different bandwidth condition. Each groups of IP stream supports kinds of main protocols output (SRT/HTTP, HLS, RTMP, RTSP, UDP), there multi-view broadcast streams to deliver more impactful and unique content to viewers.

Besides that, it also supports for pushing streaming to Facebook Server, YouTube Server, Ustream Server, Windows Media Server, Adobe Flash Server, Wowza Media Server and other servers based on standard SRT/UDP/HLS/RTSP/RTMP/HTTP/ONVIF protocols. Further more, to provide username, password matching function that required from destination server, to make the system working efficiently.

With it's powerful program processing capabilities and leading technology advantages, the 8 Channel Streaming Encoder meets the market demands such as broadcasting, VOD, education, medical care, health center, live broadcast and so on, help to save bandwidth resources for operators, and while also providing users with a better viewing experience.

Features:
- Support image parameter settings
- Input signal: 8 Channel HDMI-Compatible work simultaneously
- Supports high-definition video input of up to1080P at 60fps
- Video format: HD H.264/MPEG-4 AVC, up to 1080P at 60fps
- Audio format: for AAC, AAC+, AAC++, MP3, MP2, Dolby Digital AC-3
- Supports the GOP frame rate setting
- Main bit stream and sub bit stream can be transmitted using different network protocols
- Support output 2 groups TS over IP streams with 2 different resolutions and 2 different bit rates by each HDMI channel input
- Audio input: support 8*HDMI-Compatible embedded audio
- Support RTMP User name and Pass word for authentication of IPTV Server
- Capable of OSD settings for logo, text and Scroll Caption; Adjustable of audio gain
- Support H.264 Baseline Profile/Main Profile/High Profile and MP3 & AAC audio compression
- Bit rate mode: CBR/VBR
- Capable of image parameter settings
- Configurable of Multi-Screen, Multi-Protocol SRT, HLS, HTTP, RTSP, UDP and RTMP, Low bit rate with high quality image
- Any browsers for iOS (for iPhone, iPad, MacBook etc.) can have streams from IPTV Streaming Encoder in Anytime, Anywhere by HLS protocol without install any software players
- Any terminal devices/decoders can have streams from IPTV Streaming Encoder directly by RTMP protocol with software players (such as VLC)
- Supports the HDCP protocol and supports Blu ray HD
- Support for ONVIF Network Video Protocol
- Support multiple equipment display at the same time on a computer
- System supports for WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX
- WEB interface authority management
- Network interface adopts 100/1000M adaptive/full duplex mode

Technical Specifications:
Video Codes:
- Video format: H.264/AVC High/Main/Baseline Profile Level 4.0
- Frame rate: Up to 60fps. Recommended to be setup under the maximum capability of 8CH at 30fps OR 4CH at 60fps + 4CH at 30fps OR 2CH 4K30fps + 6CH at 30fps
- Video input: 8*HDMI-Compatible (HDCP compatible)

Resolution:
- Main Stream: 1920x1080,1680x1056,1280x720,1024x576, 850x480, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, automatic
- Second Stream: 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x300, 352X288, 320X240, 320X180 automatic. Bit-rate: 16kbps~12Mbps, CBR/VBR. Video pre-processing: Noise reduction, Sharpen, Filtering

Audio Codes:
- Audio compression: for AAC, AAC+, AAC++, MP3, MP2, Dolby Digital AC-3
- Audio input: 8 HDMI embedded
- Sampling accuracy: 24-bit
- Bit rate: 48kbps~320kbps
- Sample-rate: 44.1KHz, 48KHz

IP Streaming Output:
- Transport protocol: TS over IP output, SRT, HLS, RTSP, HTTP, UDP and RTMP protocol
- For each HDMI-Compatible to IP output: Supporting output 2 groups TS over IP streams (for each group the HLS, HTTP, RTSP, UDP and RTMP protocol all enabled). With 2 different resolutions (up to 1080p) and 2 different bit rates to meet different size screen and different bandwidth condition
- Connector: RJ45, 1000M

Working Environment:
- Power Supply: DC 12V
- Operation temperature: 0-50°C
- Storage temperature: -20 to 60°C
- Dimensions: 236 x 112 x 60mm/9.3 x 4.4 x 2.4"
- Net weight: 0.9Kg/1.98 lb

Applications:
- HD video via private IP networks
- Remote live Rebroadcasts and real-time transmission
- Hotel, Campus, Enterprise IPTV & OTT system
- Head-end system of Digital TV branch network
- Digital TV Broadcasting System
- CATV Broadcasting system
- Edge side of Digital TV backbone network
- Digital Signage Project
- Remote Video Conference
- Video Monitoring
- Digital TV Programs Transmission
- Live Streaming
- Internet TV

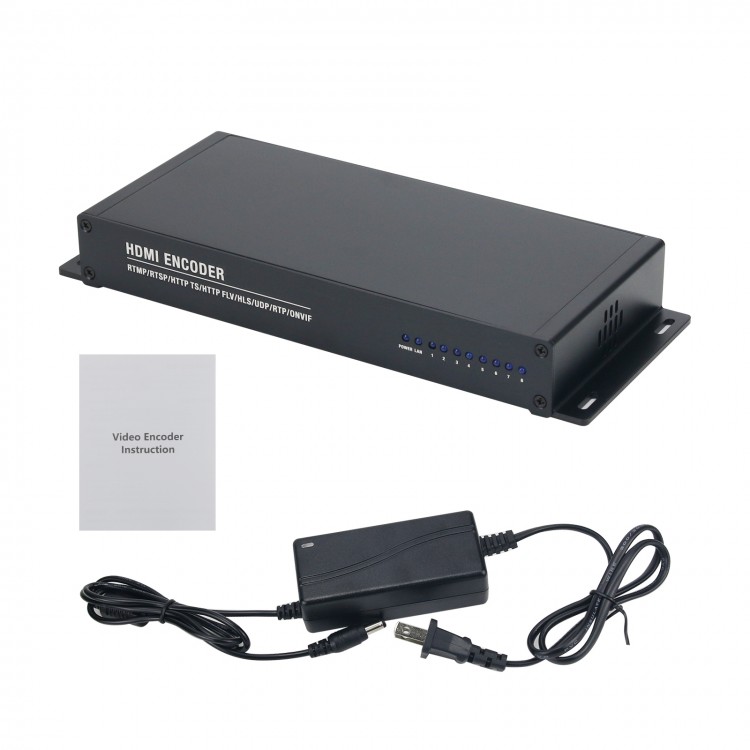

Package Included:
- 1 x HDMI Encoder
- 1 x Power Adapter
- 1 x User Manual

Note:
- It only supports H.264.

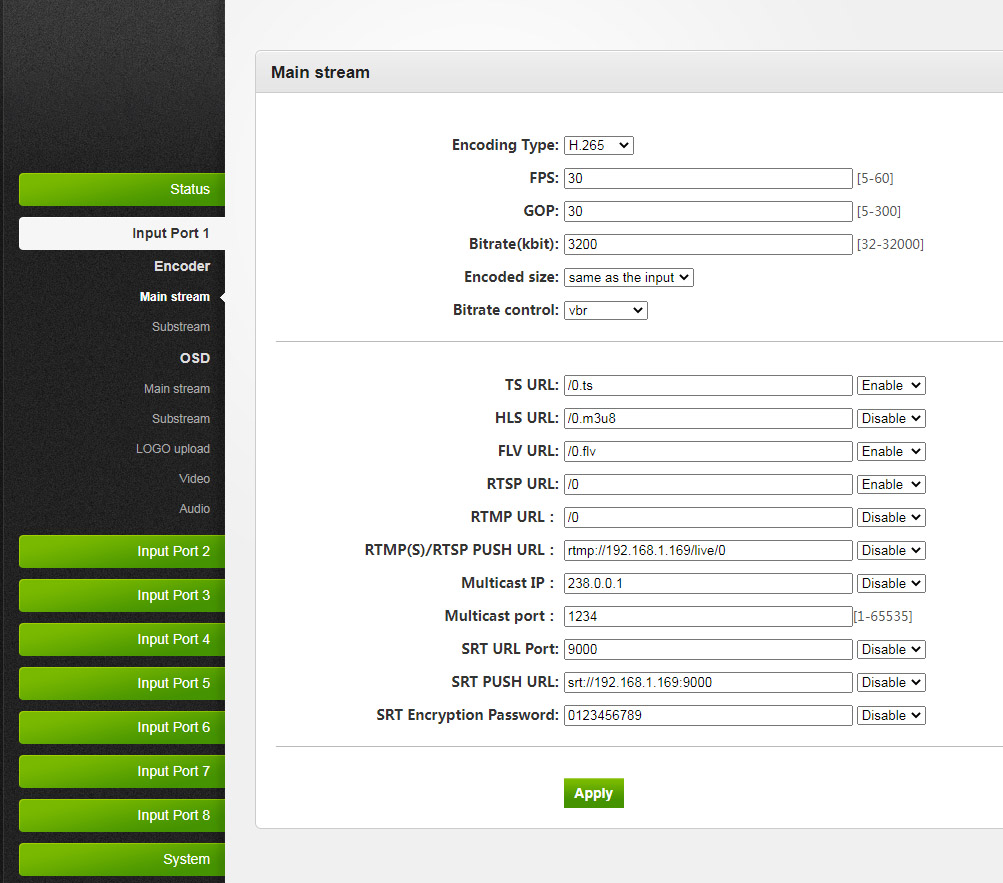

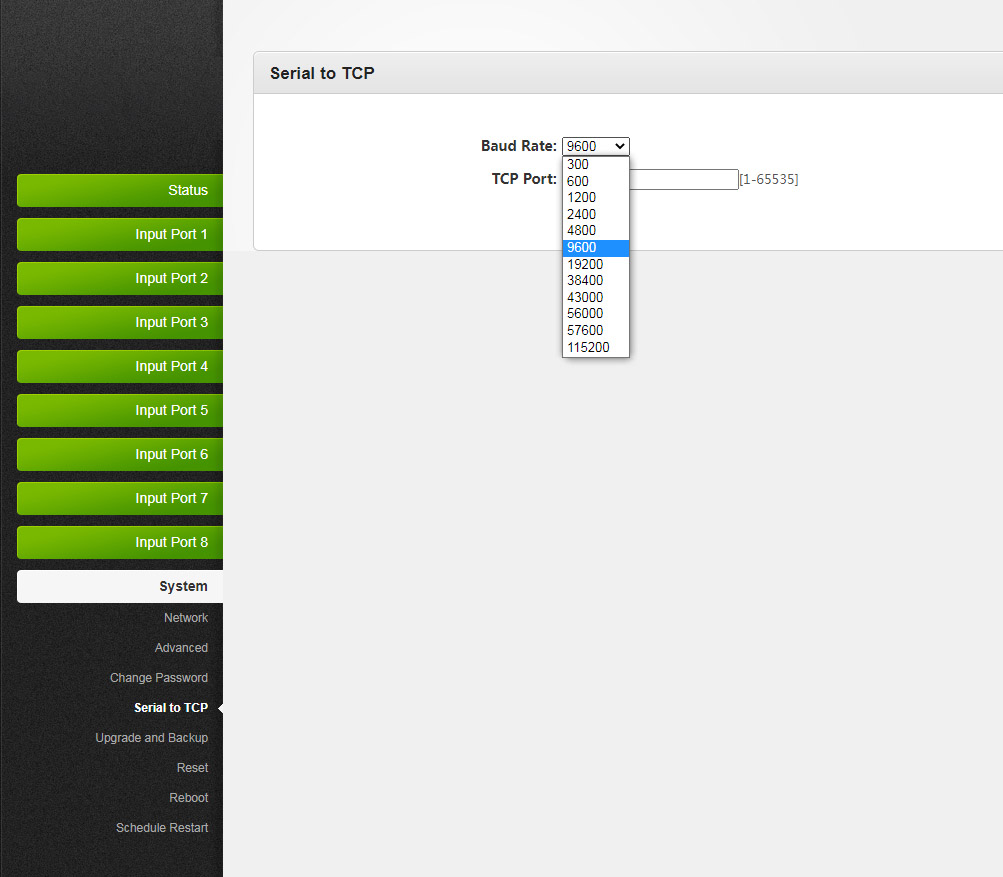

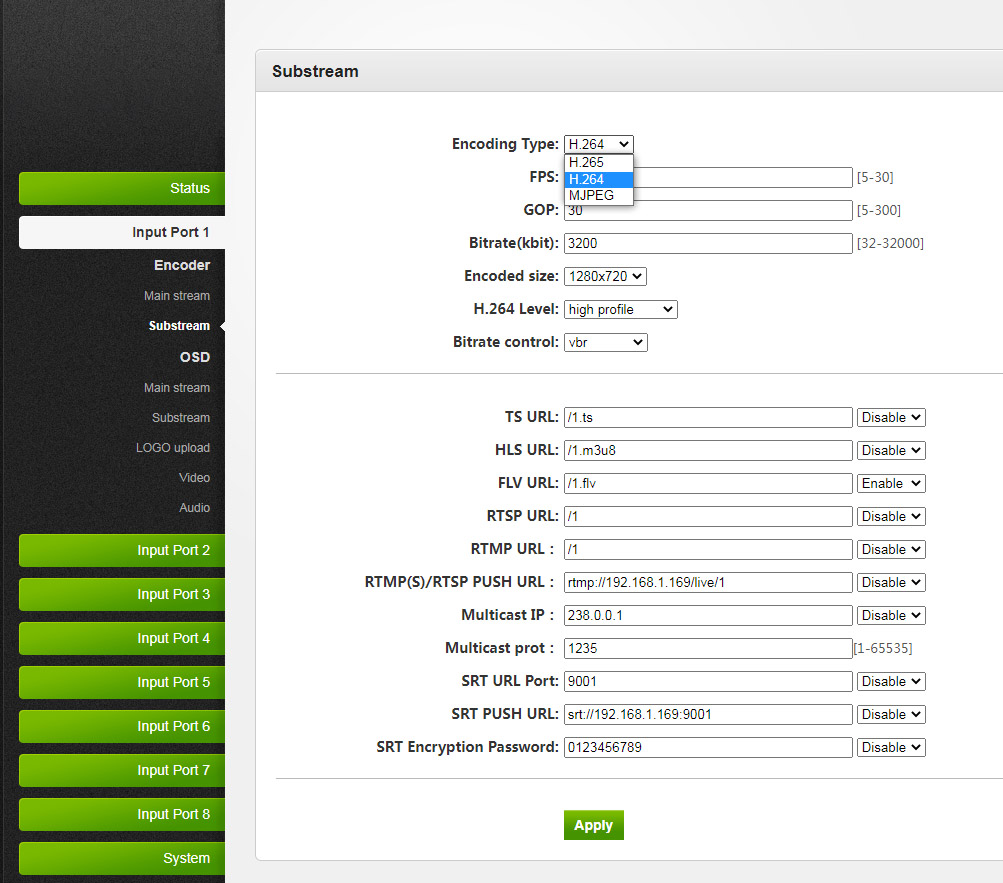

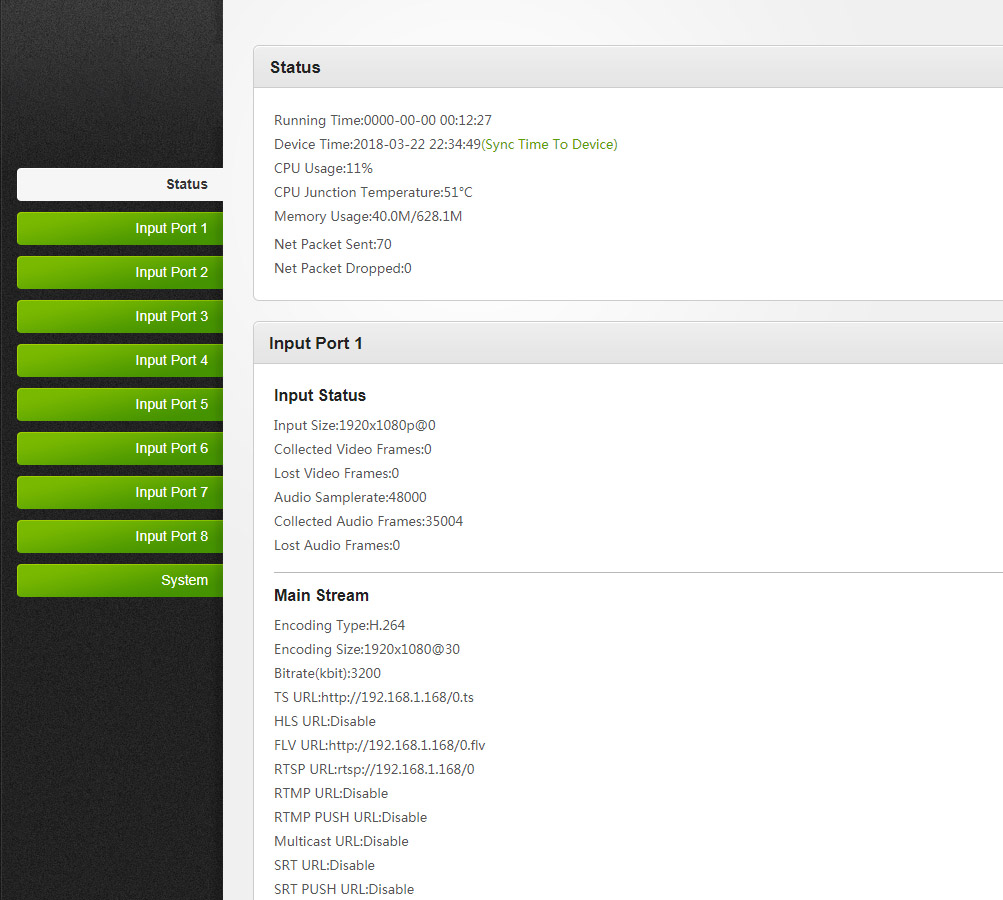

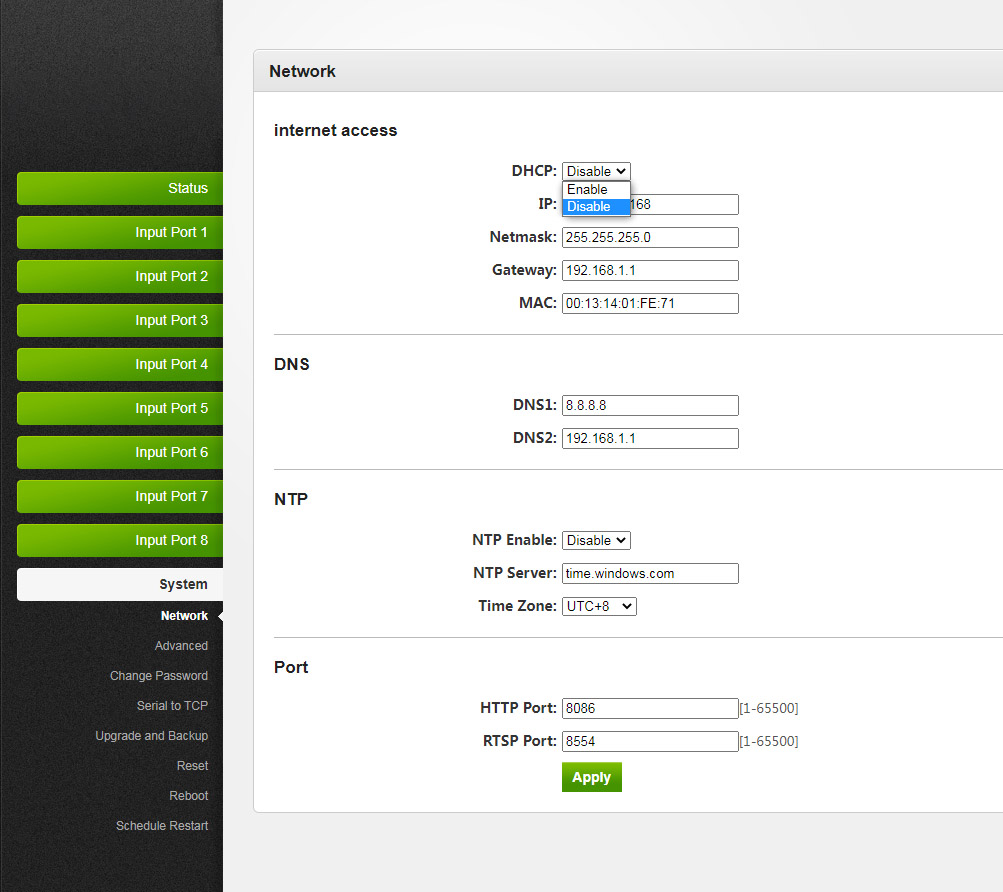

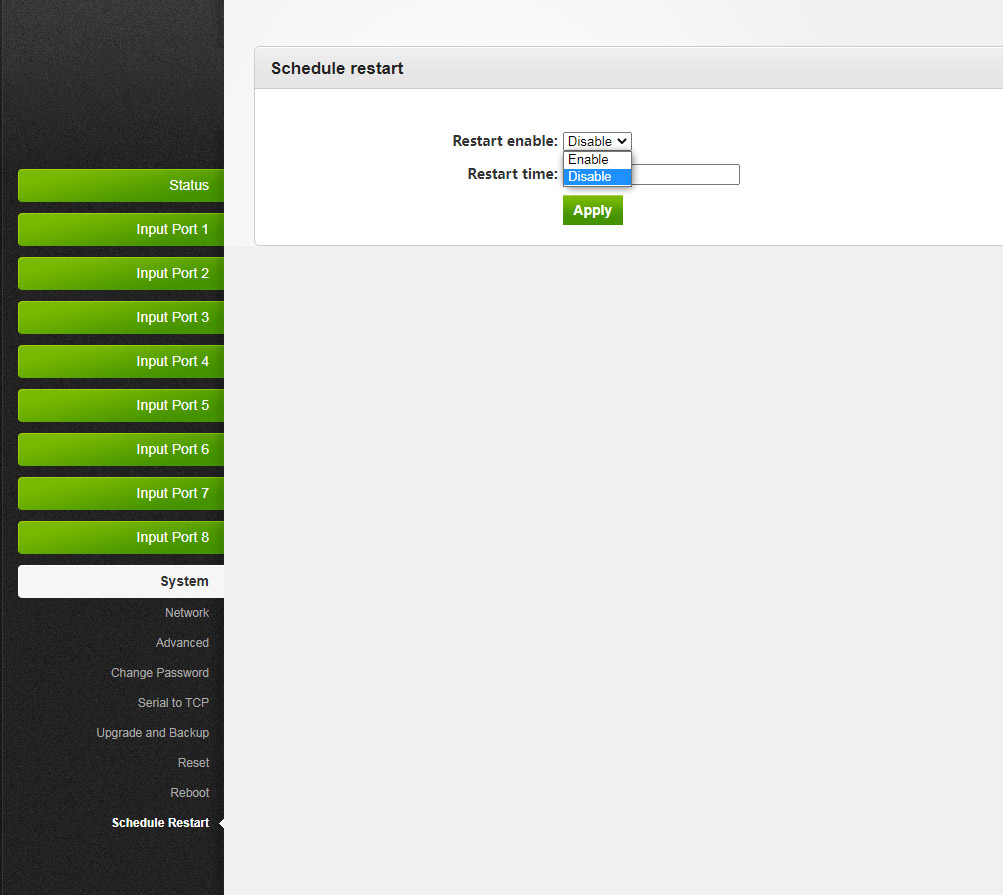

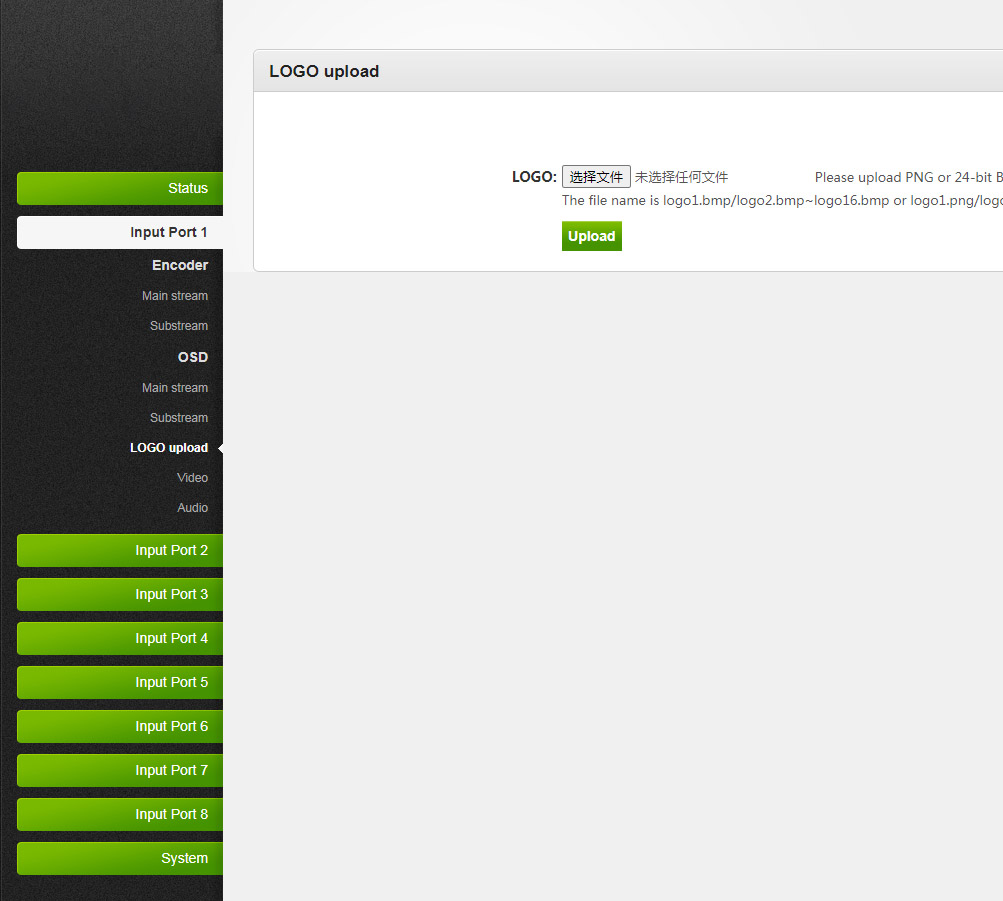

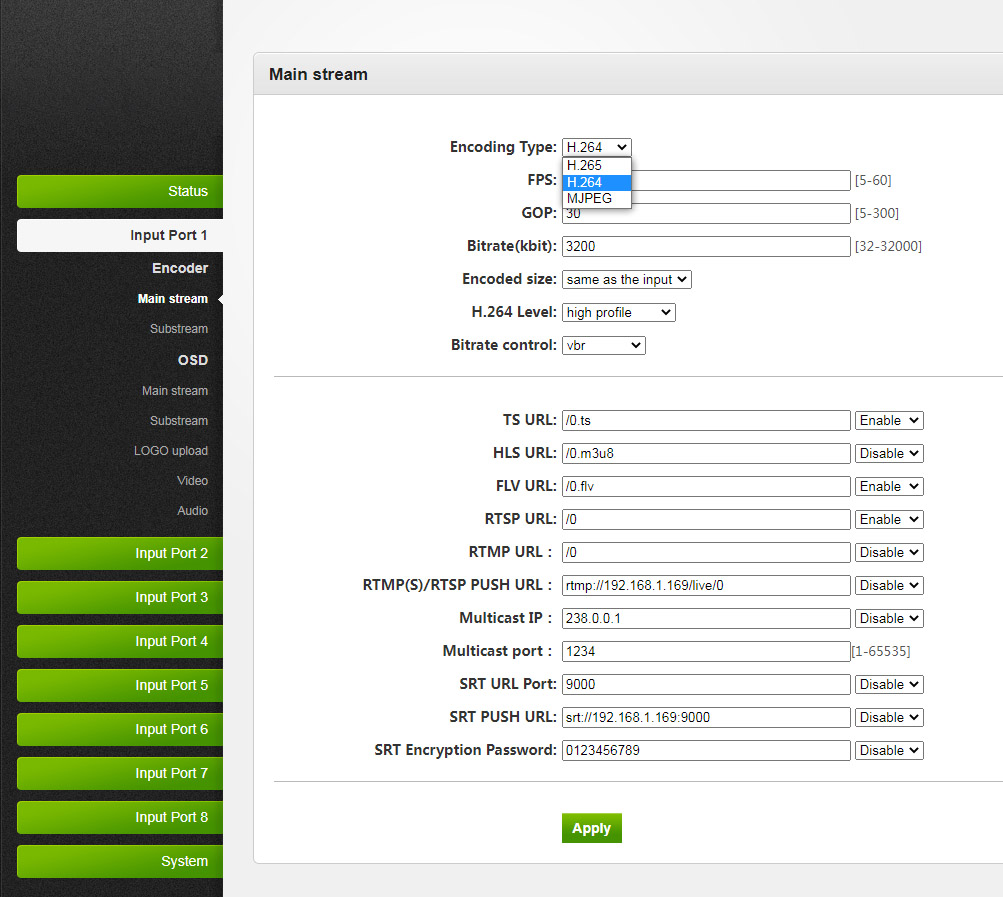

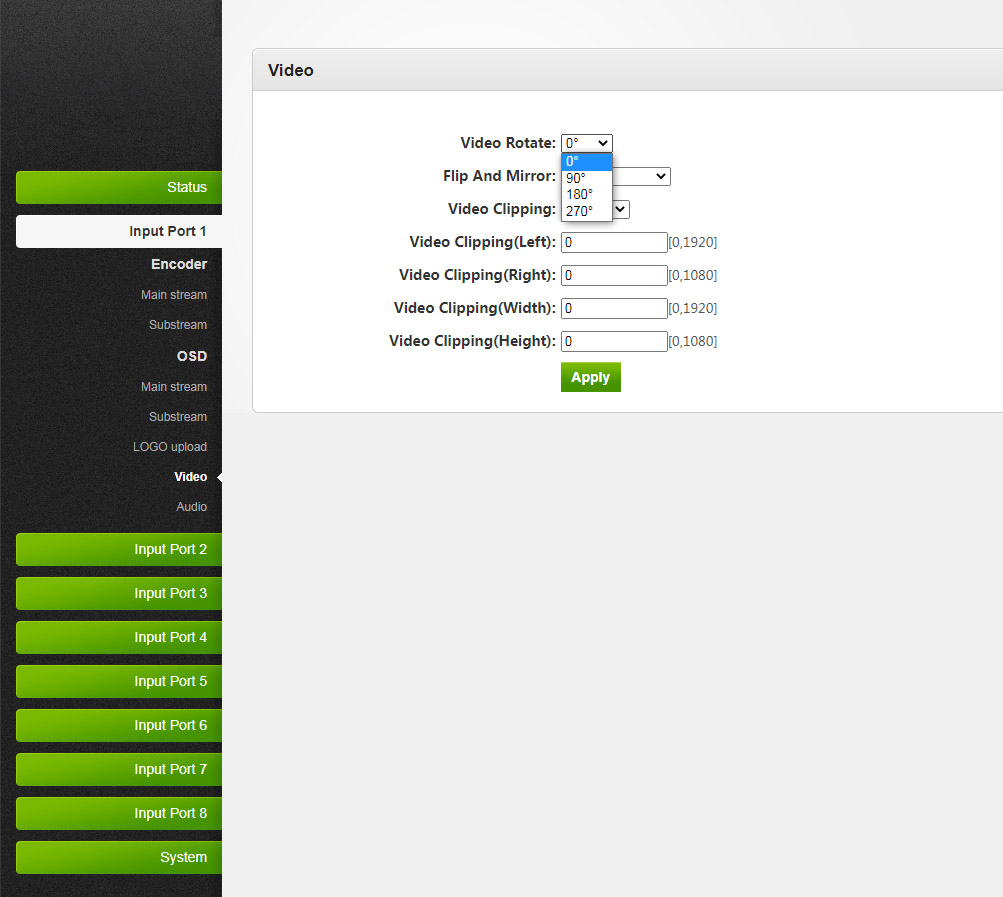

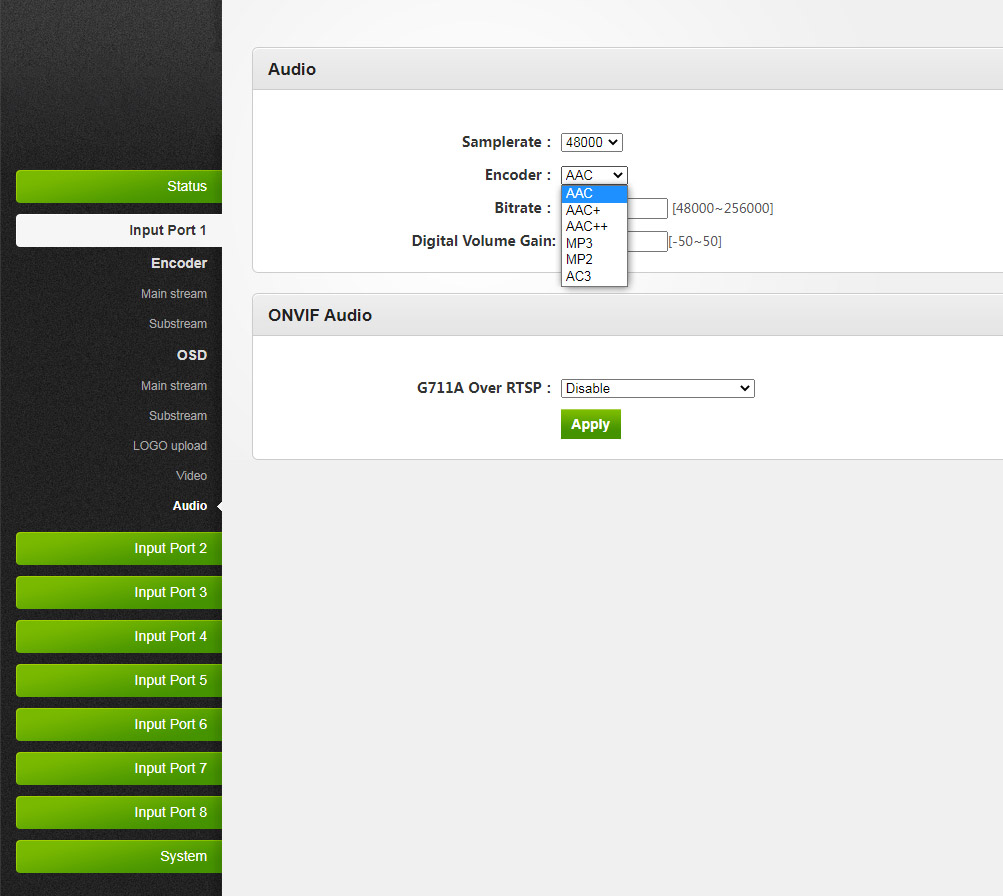

The WEB GUI:
