Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $147.20 | $144.19 | $139.69 | $133.68 | Contact US |
BM3370B-CU3-H FHD Video Encoder 1080P HDMI Encoder H.265 H.264 Encoder for Live Streaming
Features:
* EDID Switchable
* Up to 1080p60 Output
* SRT/RTSP/RTMPS/UDP/NVR, etc.
* Private Low Latency Protocol UTP
* Video Rotate, Flip, Mirror, and Clip
* Separate Audio or Video Stream
* Play Stream on Browser
* Customizable
Specifications:
Video:
* Input: 1x HDMI (1.4) HDCP
* Resolution: 1920x1080 at 60P/50p,1920x1080 at 60i/50i/1280x720 at 60p/50p, and 720x576i/720x480i
* Encoding: H.265 HEVC/H.264/AVC/Mjpeg
* Output: 1080P60 (only input 1080P60)
* Bit rate: 0.16Mbps~32Mbps
* Bit rate Control: Bandwidth Priority (CBR)/Image Quantity Priority (VBR)
* GOP: 5-300
* Advanced: De-interlacing, Image Enhancement, Noise Reduction, Sharpening, Video Rotate, Flip, Mirror, and Clip
* Latency Time: 100ms
* EDID: Switchable
Audio:
* Input: 1xHDMI Embeded/1x3.5mm
* Encoding: AAC/AAC+/AAC++/MP3/MP2/AC3/G711A/U/Opus
* Resample: 44100/48000 Hz
* Bit rate: 32K/48K/64K/96K/128K/160K/192K/384K
* Sampling precision: 24 bit
System:
* Ethernet: 1000M/2.4G 5.8G WIFI
* Protocol: UTP SRT HTTP RTSP RTMP (s) HLS FLV UDP unicast/multicast Onvif
* NTP: Support
* OSD: Time/TXT/Scroll/PNG
* Manager: Website or CGI Command
General:
* Dimension (WxLxH): 98 x 101 x 33mm/3.9 x 4 x 1.3"
* Net Weight: 0.3kg/0.7lb
* Temperature: 0-45℃ (working); -20 to 80℃ (storage)
* Power: 12V DC 1A or Battery F550/F750/F970
* Consumption: < 5w

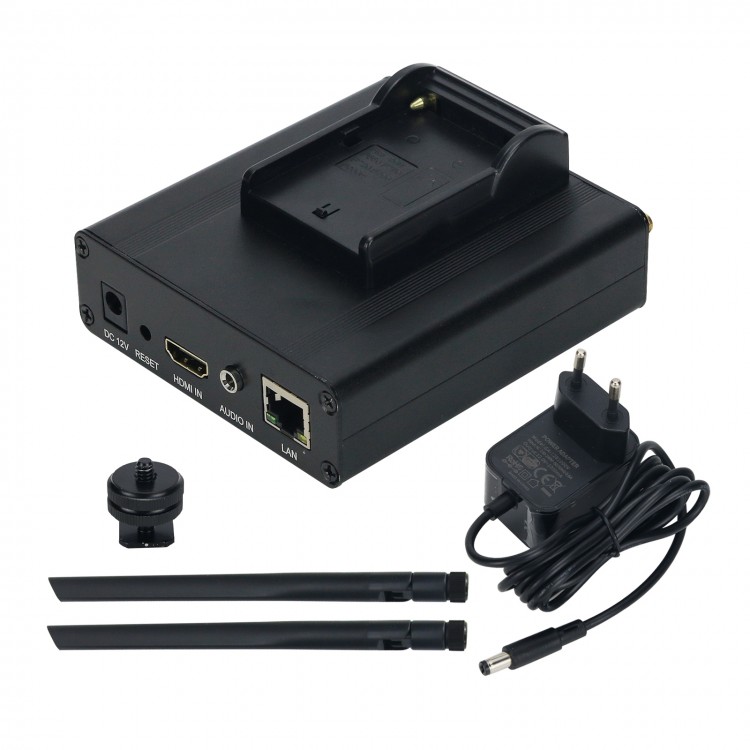

Package Included:
* 1 x FHD Video Encoder
* 2 x Antennas
* 1 x Hot Shoe
* 1 x Power Adapter
Note:
* Battery is not included.
