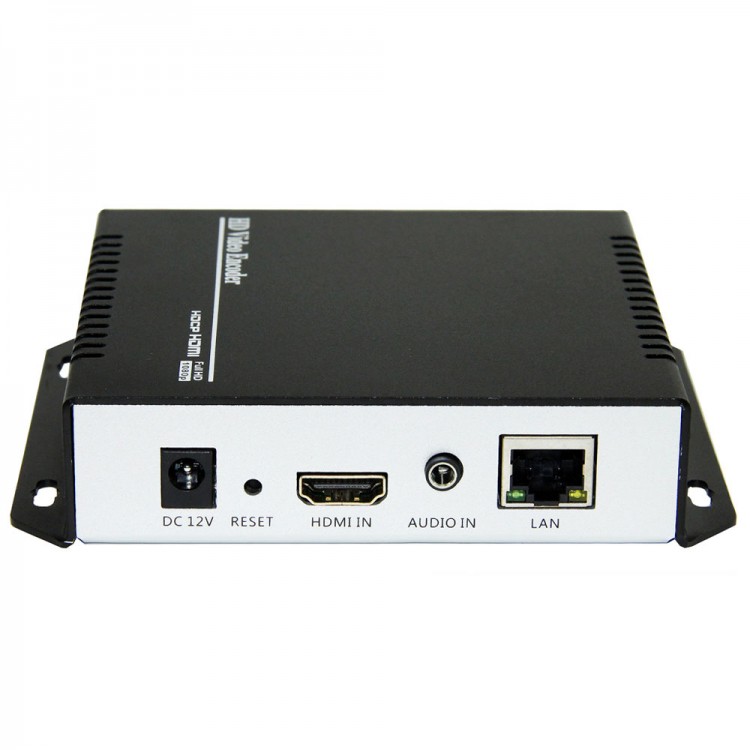

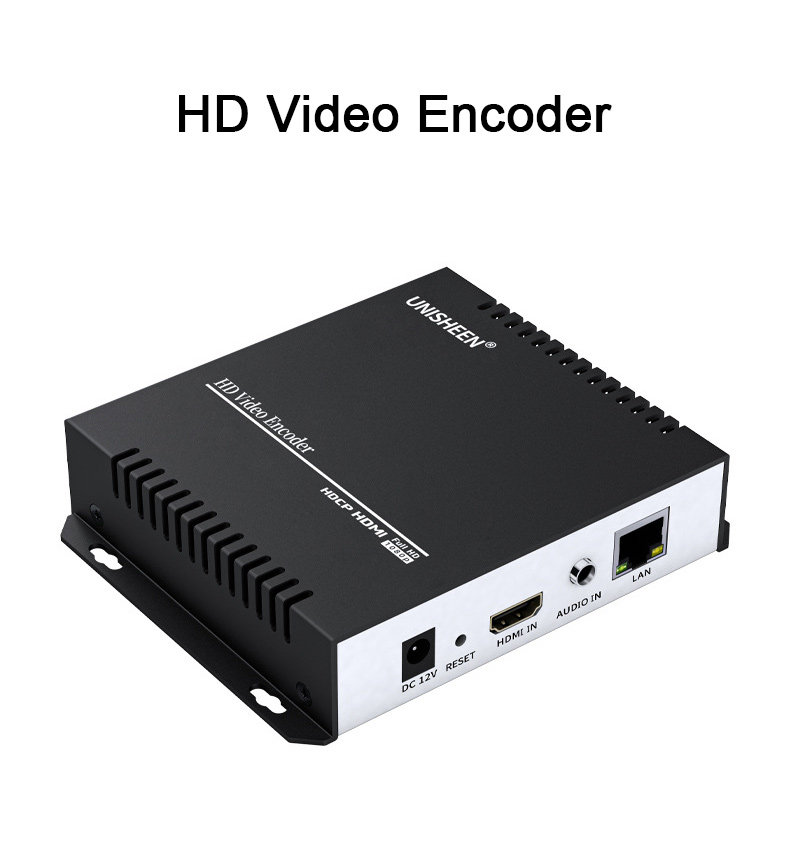

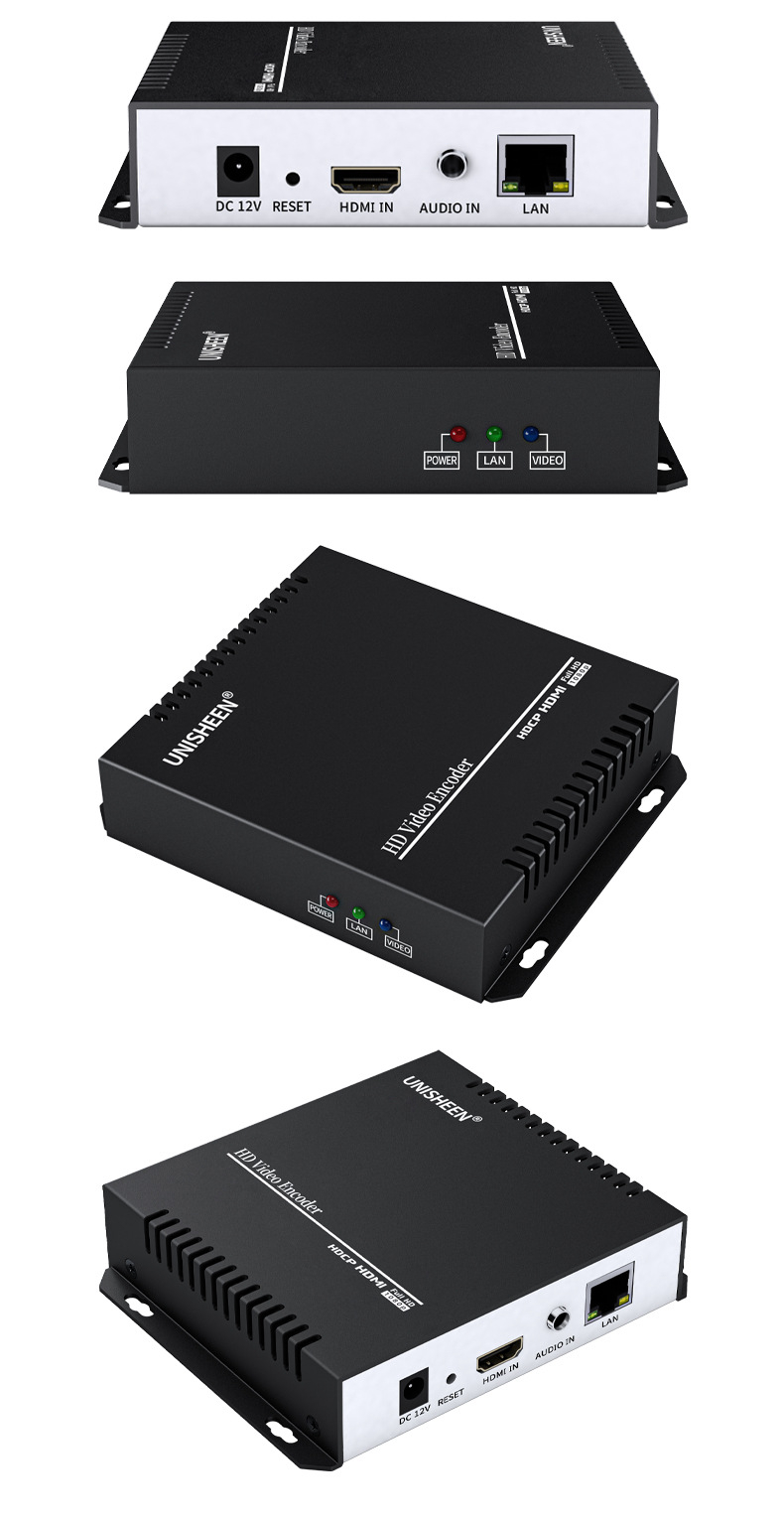

UNISHEEN BM3370H-A FHD 1080P HDMI Video Encoder H.264 H.265 Encoder for Livestreaming Conference

UNISHEEN BM3370H-A FHD 1080P HDMI Video Encoder H.264 H.265 Encoder for Livestreaming Conference

Features:
* H.265 video encoder for livestreaming.
* It supports UTP private protocol.
* Support web page to play video directly.
* Independent audio input.
* HD 1080P: It supports Full HD 1920*1080P60 video live streaming and supports resolution customization. With software, it can record video and support live streaming.

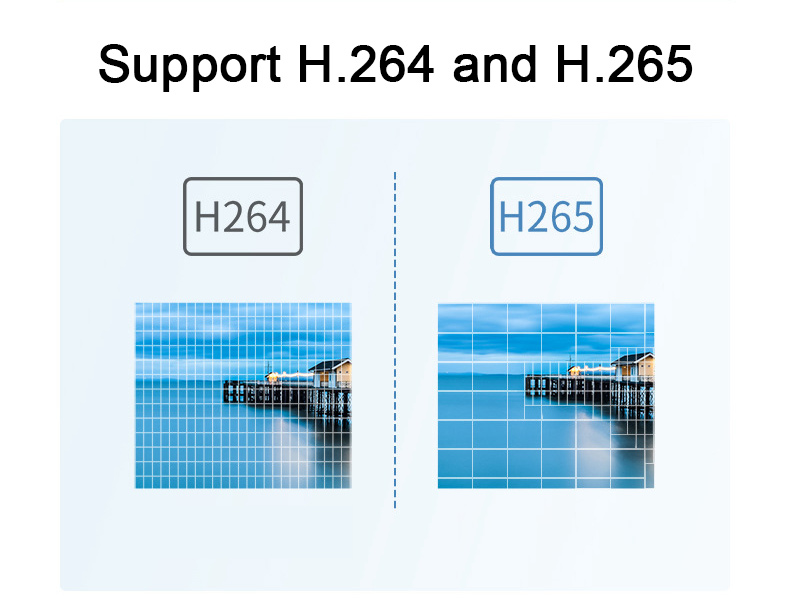

* Support H.264 and H.265 encoding: Using H.264/H.265 HD video compression technology, the efficiency of H.265 encoding is increased by 40% compared with that of H.264, bandwidth occupation is reduced by 50%, and image quality is clearer.

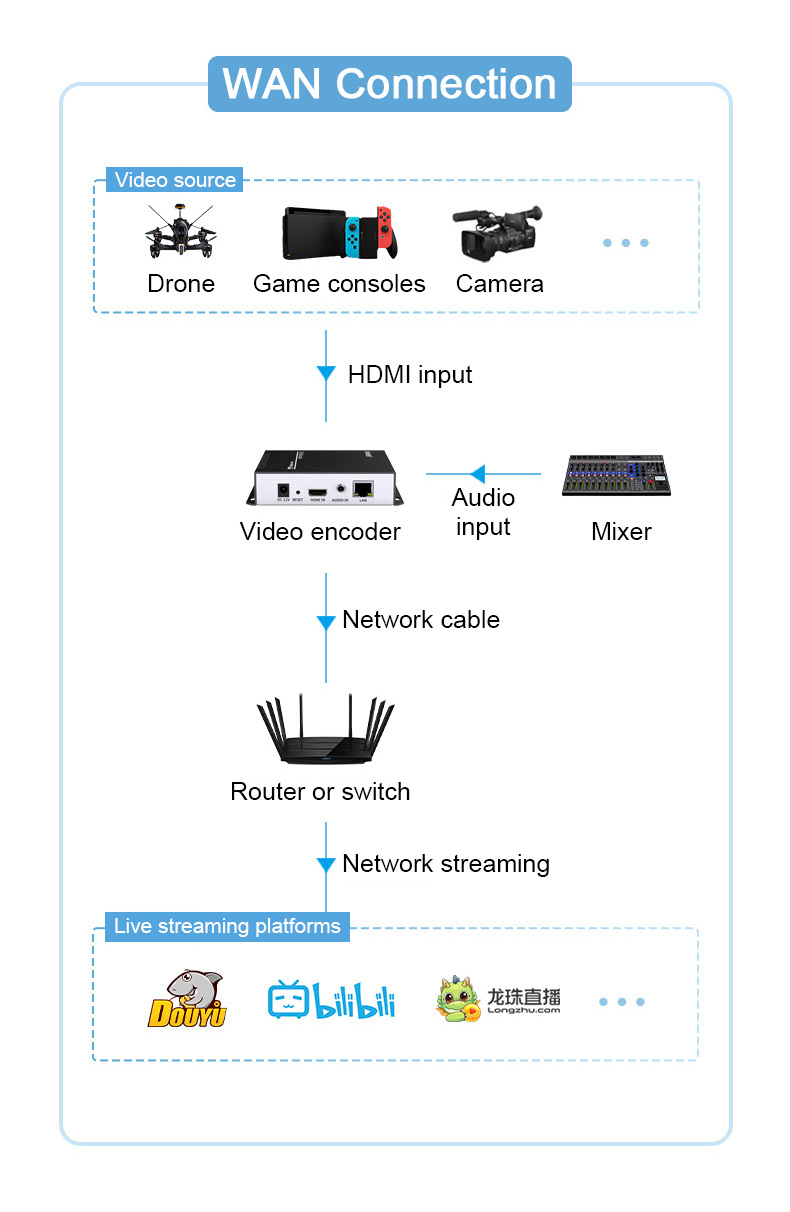

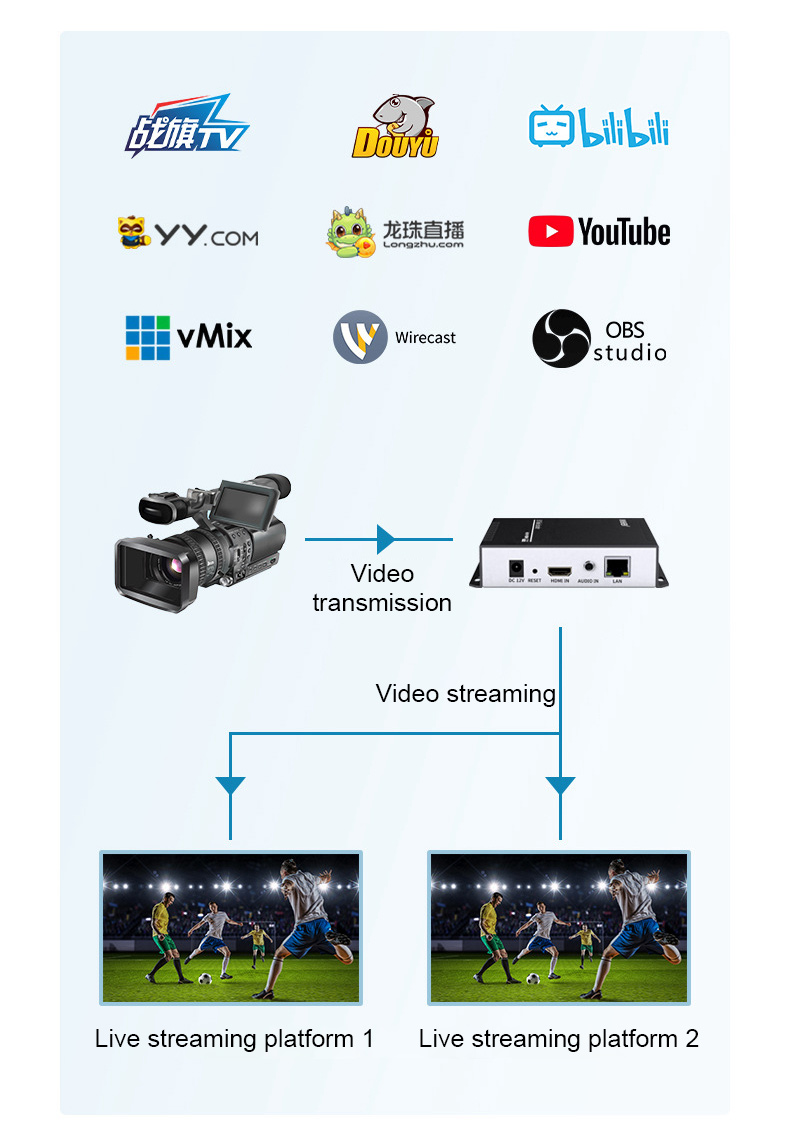

* Support multi-protocol and dual-stream live streaming: Support UTP/SRT/RTSP/RTMP/RTMPS/UDP/NVR and other protocol transmission. Compatible with major live streaming platforms. Supports dual streaming, which can push streams to two platforms at the same time for livestreaming.
* Web page management and free settings: After the encoder connection is successful, users can log in to the setting page to set parameters.
* Support for individual videos and individual audio. Switchable EDID.
* Widely used: for outdoor video transmission, surgical video transmission, online livestreaming and security monitoring.

Specifications:
Video interface:
* 1xHDMI (1.4)

Bitrate:
* 0.16Mbps~32Mbps

Bitrate mode:
* Bandwidth priority CBR
* Image quality priority VBR

Key frame interval:
* 5-300

Advanced settings:
* Screen mirroring/screen flipping
* Screen rotation/screen cropping
* EDID switchable
* Noise reduction/sharpening

Resolution:
* 1920x1080 at 60P/50p
* 1920x1080 at 60i/50i
* 1280x720 at 60p/50p
* 720x576i/720x480i

Output resolution:
* Up to 1080P60

Video encoding:
* H.265 HEVC
* H.264/AVC/Mjpeg

Chip coding delay:
* Less than 100ms

OSD:
* Time/TXT
* Scroll/PNG

Audio interface:
* 1xHDMI embedded
* 1x3.5mm

Resampling:
* 44100/48000Hz

Sampling accuracy:
* 24bit

Audio coding:
* AAC/AAC+/AAC++
* MP3/MP2/AC3
* G711A/U/Opus

Bit rate:
* 32K/48K/64K
* 96K/128K/160K
* 192K/384K

Network interface:
* 1000M

Management method:
* Web management
* CGI commands

Net weight:
* 0.3kg/0.7lb

Power supply specifications:
* 12V DC 1A

Power:
* <5w

Supported protocols:
* UTP/SRT/NVR/UDP
* RTSP//RTMP/RTMPS
* HTTP/HLS/Multicast

Product size:
* 115 x 104 x 30mm/4.5 x 4.1 x 1.2"

Temperature range:
* 0-45°C (operating)
* -20 to 80°C (storage)

Package Included:
* 1 x Video Encoder
* 1 x Power Adapter
