MZB01 Video Encoder 4KP30 H.265 NDI SRT RTMP NDI Encoder for IP Camera Live Streaming

MZB01 Video Encoder 4KP30 H.265 NDI SRT RTMP NDI Encoder for IP Camera Live Streaming

Features:
- 4KP30 HD input

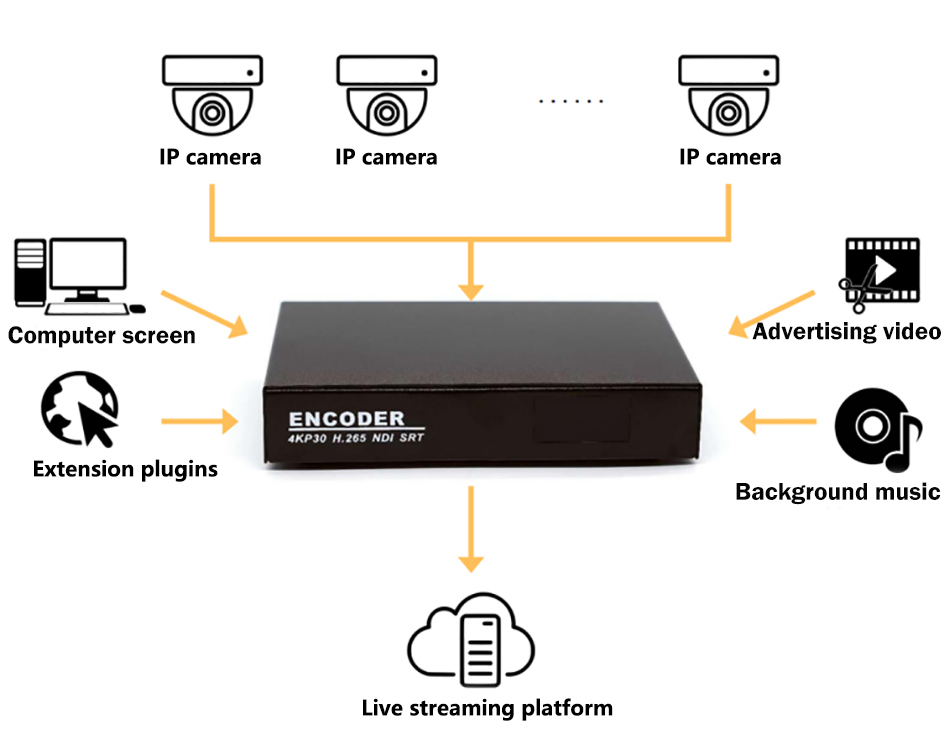

- Multi-protocol livestreaming: RTSP/RTMP/HTTP/HLS
- Support multiple livestreaming platforms: Support landscape and portrait screen
- High compression ratio: H.265 and smartP
- Advanced features: Plugin overlays and free carousels

Specifications:
Core Performance:
- Main chip: Hi3521DV100
- CPU: For ARM Cortex-A7 at 1.3GHz; 32KBI-Cache and 32KBD-Cache
- Memory: 1GB DDR3
- FLASH: 256MB SPI Nand Flash

Video Parameters:
- HDMI input: HDMI 1.4 supports up to 4K at 30fps
- HDMI output: up to 4K60
- Resolution: 4K30, 1080P, 720P, 1080i, 720i, 1600x1200, 1440x900, 1366x768, 1280x1024, 1024x768, 800x600, and 640x480
- Encoding format: H.264 Baseline profile; H.264 Main profile; H.264 High profile; H.265 Main profile; MJPEG/JPEG Baseline
- Decoding formats: H264, H264, and MJPEG
- Coding resolution: Main: 4K, 1080P, 720P, and 360P; Sub: 720P and 360P
- Frame rate: 1~60 adjustable
- Multi-reference frame: Support SmartP, and DualP
- Maximum bit rate: 40Mbps
- Bit rate control: CBR/VBR/AVBR/FIXQP/QPMAP

Audio and Video Parameters:

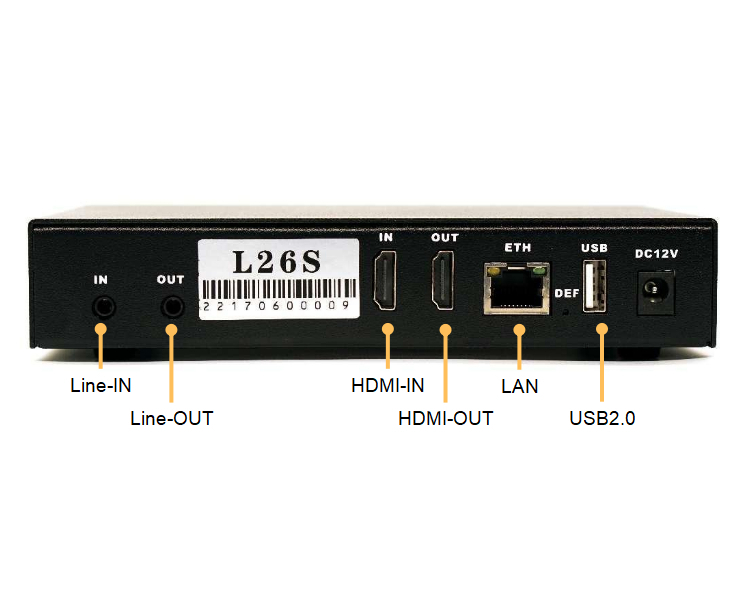

- Input interface: HDMI, 3.5mm Line-In, and audio can be used at the same time
- Output interface: HDMI, 3.5mm Line-Out, and audio can be used at the same time
- Sample rate: 48K, 44.1K, 32K, 16K, 8K
- Encoding formats: AAC, MP3, MPEG2, PMCA, PMCU

Network Parameters:
- Wired interface: 10/100/1000M RJ45 network port
- WIFI: Optional
- 4G: Optional
- Transport protocols: RTSP, RTMP, HTTP, HLS, UDP, unicast, and multicast
- For ONVIF: Yes
- SRT: Yes

Basic Parameters:
- Power supply: DC-12V2A
- Power: < 8W
- Working temperature: 0~70°C
- Size: 170 x 110 x 30mm/6.7 x 4.3 x 1.2" (LxWxH)

Package Included:
- 1 x Encoder
- 1 x Power Adapter

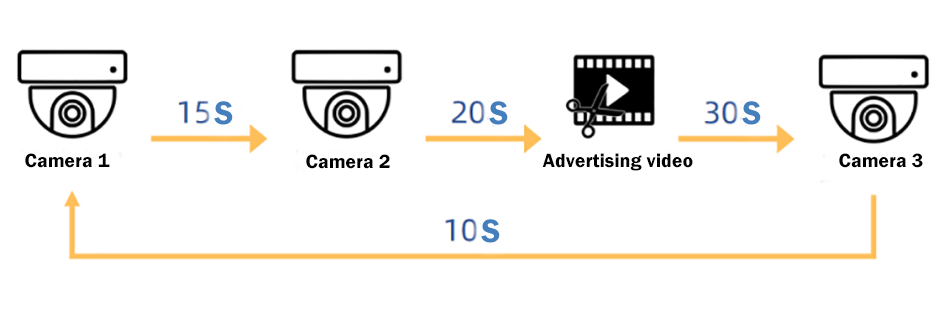

Custom Carousel
Users can freely arrange the playing order and switching interval of signal sources. The signal source will not appear black field, stuttering and other phenomena during the switching process



Portrait Live Streaming
By cropping, rotating, etc., the landscape screen can be converted into a vertical screen screen, making the final picture more suitable for mobile viewing



Extensions
On the basis of the basic video overlay functions such as pictures, text, and time, we also provide an extended plug-in overlay function based on H5 technology, which can realize functions such as weather information and calendar. User-defined development interfaces can be opened to allow users to achieve more and richer functions.



Remote Maintenance
Remote unified management can be carried out using the built-in FRP function of the device

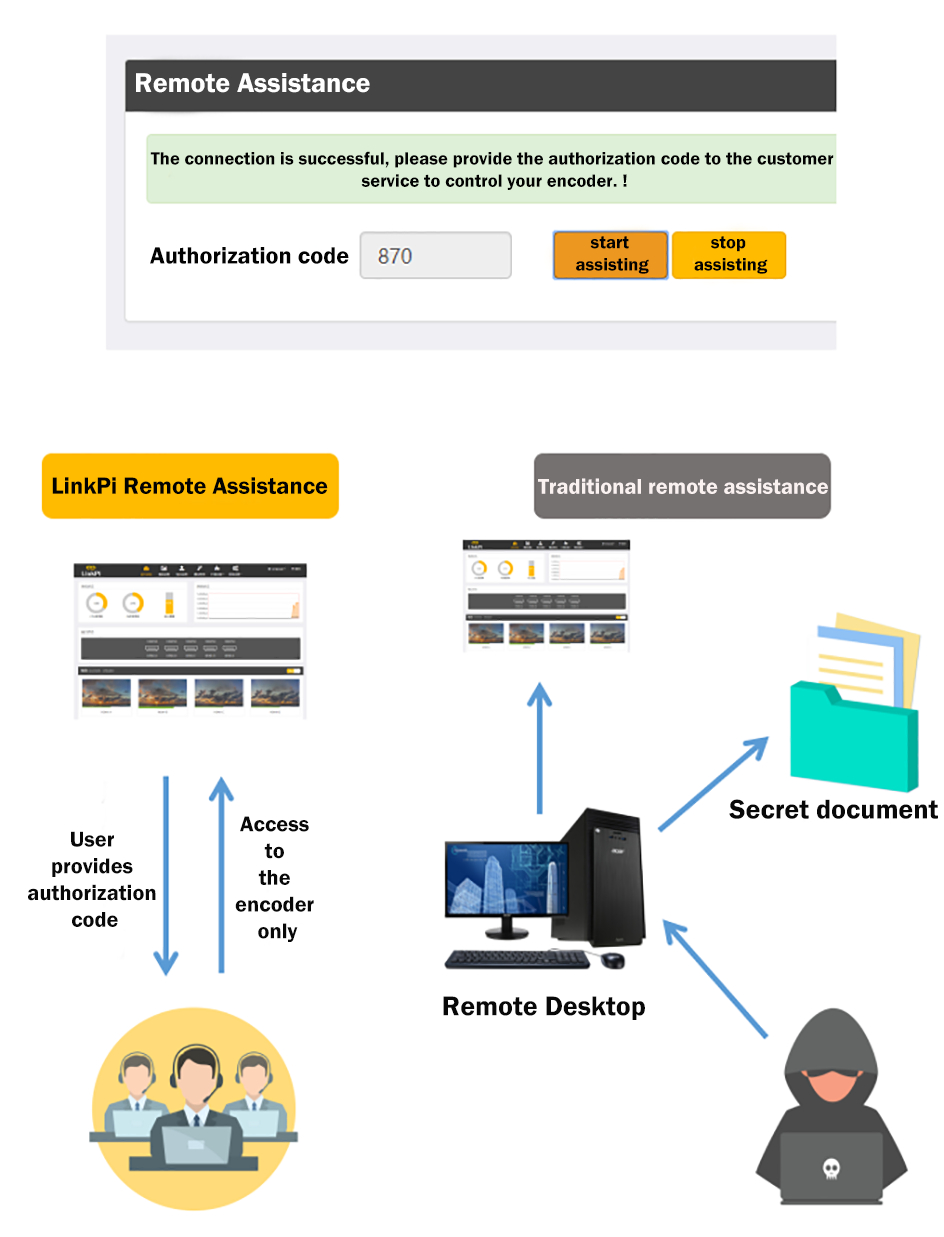

Remote Assistance
One-click remote assistance, no need to log in to your PC. On-demand use, convenient and fast, to protect the privacy of users
