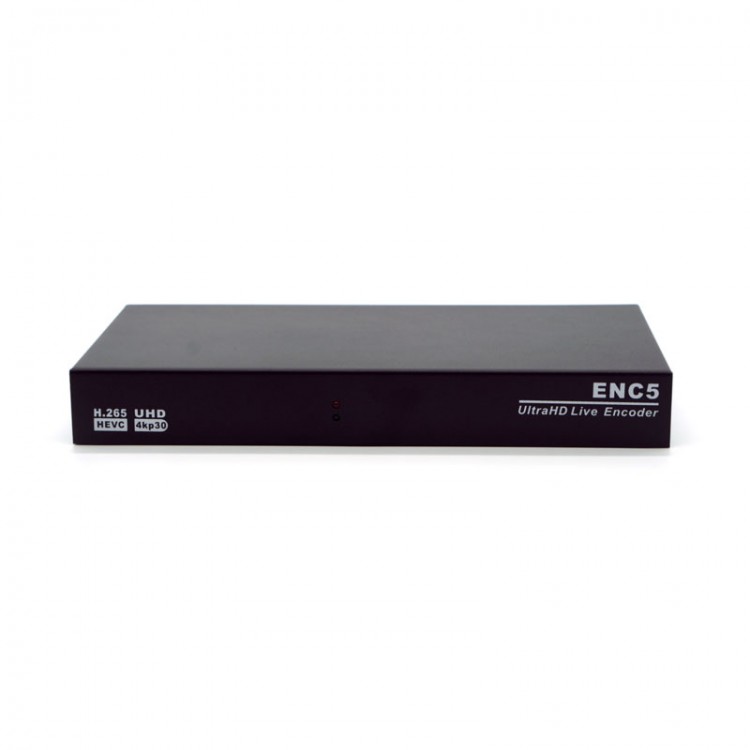

ENC5 UltraHD Live Encoder Live Streaming Encoder 5-Way 4K Video Encoder HDMI H.265 HEVC UHD 4KP30

ENC5 UltraHD Live Encoder Live Streaming Encoder 5-Way 4K Video Encoder HDMI H.265 HEVC UHD 4KP30

Manual:
https://gitee.com/LinkPi/Encoder/wikis/pages

Advantages:
- UltraHD input 4K30x5
- Multi-protocol live streaming RTSP/RTMP/HTTP/HLS
- Open system, open-source code
- High compression rate, H.265+smartP
- Advanced features: Watermark subtitles, image optimization

Features:
- It is not only a decoder, but also supports functions such as decoding, directing, and mixing. It can realize image transmission based on for NDI, SRT, RTSP and other protocol groups to encode and decode, and the whole process of encoding and decoding delays about 60~80ms
- Support a variety of peripherals: TV set-top boxes, laptops, cameras, SLR cameras, network surveillance, USB cameras, mobile phones, game consoles
- Most encoder models already support HDCP, allowing connection for PS4, Blu-ray players and other devices, please contact customer service for details (Mobile access requires additional purchase of MHL adapters or special adapters for iPhone, wireless screen projectors, etc.)
- Special agreement support. One device supports any ways for NDI outputs, supports authorization code import, and anti-copy (you need to purchase full functions for NDI separately. According to authorization regulations for NewTek, users who have not purchased authorization for can only use 30 minutes each time)
- SRT: By enabling the SRT protocol, users can connect any channel of the encoder to software for OBS, vMix, etc., for secondary editing and publishing, suitable for live broadcast, direct broadcast and other scenarios
- Support mobile phone control: no installation, mobile phone scan code (see manual), open mini programs. Most of the functions of the Web terminal can be operated through the mini programs, and automatically discover all encoders in the local area network
- Multi-platform live streaming: only one encoder is needed to push live streaming to multiple platforms at the same time
- Full frame rate de-interlacing: support 1080i60/50 to 1080P60/50 and 720i60/50 to 720P60/50
- Multi-screen guide: In addition to the input video of each HDMI, USB, network and other channels, the system also supports the arrangement and mixing of the pictures of multiple channels, which can be switched in real time
- Group management: When there are multiple encoding devices in the network, the devices will be automatically networked, and all encoders can be managed by visiting any one, and a unified program list can be generated

Performance Parameters:
Core performance:
- Main chip: HI3531DV100
- CPU: For ARM Cortex A9 dual-core at 1.4GHz
- Memory: 2GB DDR3
- FLASH: For 256MB Nand Flash

Video Parameters:
- Input interface: 5-way HDMI 1.4 supports up to 4K30
- Resolution: 4K, 1080P, 720P, 1600x1200, 1440x900, 1366x768, 1280x1024, 1024x768, 800x600, 640x480
- Encoding format: H.264 Baseline profile, H.264 Main profile, H.264 High profile, H.265 Main profile, MJPEG/JPEG Baseline
- Encoding resolution: 4K, 1080P, 720P, 360P
- Frame rate: 1~60 adjustable
- Multiple reference frames: support for SmartP, DualP
- Maximum bit rate: 40Mbps
- Rate control: CBR, VBR, AVBR

Audio Parameters:
- Input interface: HDMI
- Sampling rate: 48K, 44.1K, 32K, 16K, 8K
- Coding format: AAC, MP3, MPEG2, PMCA, PMCU

Network Parameters:
- Wired interface: 10M/100M/1000M RJ45 network port
- WIFI: optional dual-frequency Wifi module
- Transmission protocol: RTSP, RTMP, HTTP, HLS, UDP, unicast, multicast
- ONVIF: Support

Basic Parameters:
- Power supply: DC 12V 5A
- Power: <15W
- Working temperature: 0~70℃
- Size: 250x130x30mm (LxWxH)

Software Function:
- Basic functions: WEB configuration, parameter hot update, firmware upgrade, network setting, password management
- Special effects overlay: Logo, watermark, subtitles, rolling subtitles, mosaic, time stamp
- Resource management: custom fonts, upload watermark logo images

Package Included:
- 1 x Encoder Host
- 1 x Power Adapter

Note:
- It supports for NDI encoding and NDI decoding functions. Users who need to use full functions for NDI, please purchase a license separately. Users who don't need full function can do without purchasing, and it will not affect the use of other features.
