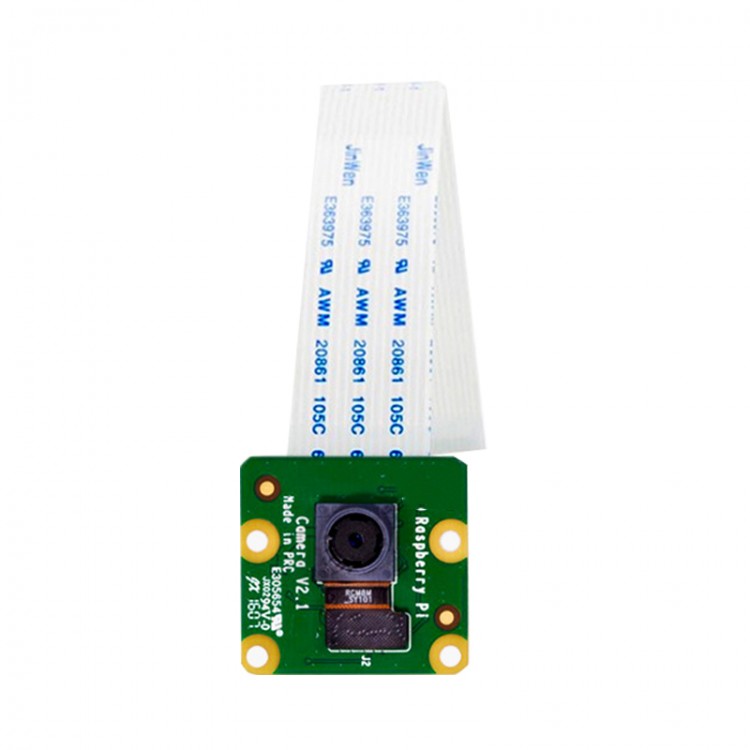

8MP Camera Module Camera V2 Expansion Board Camera Module Board 1080P for Raspberry Pi
Description:
The Raspberry Pi Camera Module v2 is specially customized for Raspberry Pi with a high-quality 8-megapixel Sony IMX219 sensor expansion board. It has a fixed-focus lens, which can reach 3280 x 2464 pixel static images, and also supports 1080p30, 720p60 and 640 x 480p60 /90 camera function. The expansion board is suitable for Raspberry Pi through the small slot on the surface of the board, and uses a special CSI interface which is specially designed for the camera.
Specification:
Pixel: 8 million physical pixels, can reach 3280 x 2464 pixel static pictures
Size: 25mm x 23mm x 9mm
Weight: about 3g
Compatible range: compatible with all versions of Raspberry Pi
Cable: 15-pin ribbon cable
Sensor: Sony IMX2 19PQ CMOS image sensor
Filter: None
Support video: 1080p30, 720p60 and 640 x 480p60/90 video
Support system: the latest version of Raspbian system supports Raspberry Pi Camera v2
Provided: connect to the Raspberry Pi board via a short ribbon cable
Manual focus: support manual focus
Connection Steps:
(The position of the connector: a 90° vertical connector, the contact side of the HDMI port is facing the HDMI port when connected)
Step 1: RPi firmware and rasp-config have been updated for the camera, please execute apt-get update; apt-get upgrade。
Step 2: Select camera in rasp-config, start the camera driver in RPi firmware, and restart。
Step 3: Use command line programs raspivideo and raspistill to operate the camera and capture video clips or images。
Step 4: The captured video clip needs mplayer to play。
Package List:
-1 x Camera Module
-1 x Ribbon Cable
Note:
-When assembling the shell, first tear off the acrylic protective film.
-The screw holes on the acrylic board may have residue or blockages, please remove them.
-Not include the camera.
