Specifications:
- Working voltage: 9V ~ 24V
- Input current: (4.00MA ~ 20.00MA/0.00mA ~ 20.00mA)
- Output voltage: (0.00V ~ 5.00V/0.00V ~ 10.00V).
- Control mode: 4.00MA (mA) ~ 20.00MA (mA) input is converted into the corresponding (0.00V ~ 5.00V/0.00V ~ 10.00V).
- Scope of application: current signal to voltage signal; remote data acquisition and control equipment;
- Dimensions: (length) 26mm * (width) 23mm * (height) 10mm
Output method:
1. J1 pad on the circuit board: open circuit (input 4.00mA, ~ 20.00mA); short circuit (input 0.00mA ~ 20.00mA), the default is open circuit
2. J2 pad on the circuit board: open circuit (output 0.00V ~ 5.00V); short circuit (output 0.00V ~ 10.00V), the default is open circuit.

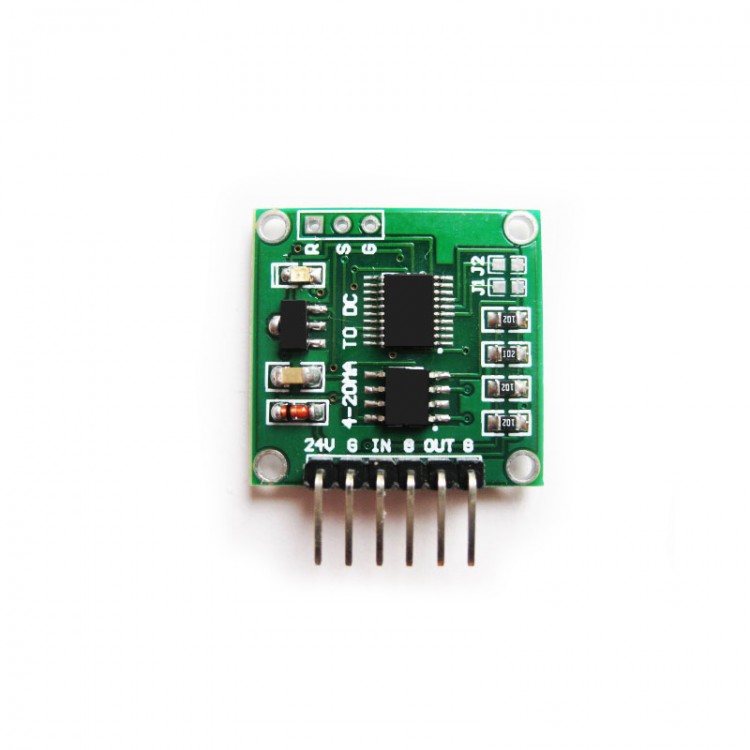

Module interface:
24V: Positive port of power supply (9V ~ 24V).
G: Power ground interface.
IN: Signal input interface (4.00MA ~ 20.00MA/0.00MA ~ 20.00MA).
G: Power ground interface.
OUT: Signal output interface (0.00V ~ 5.00V/0.00V ~ 10.00V).
G: Power ground interface.
Note: When outputting 0.00V ~ 10.00V, the power supply voltage should be 15V.
