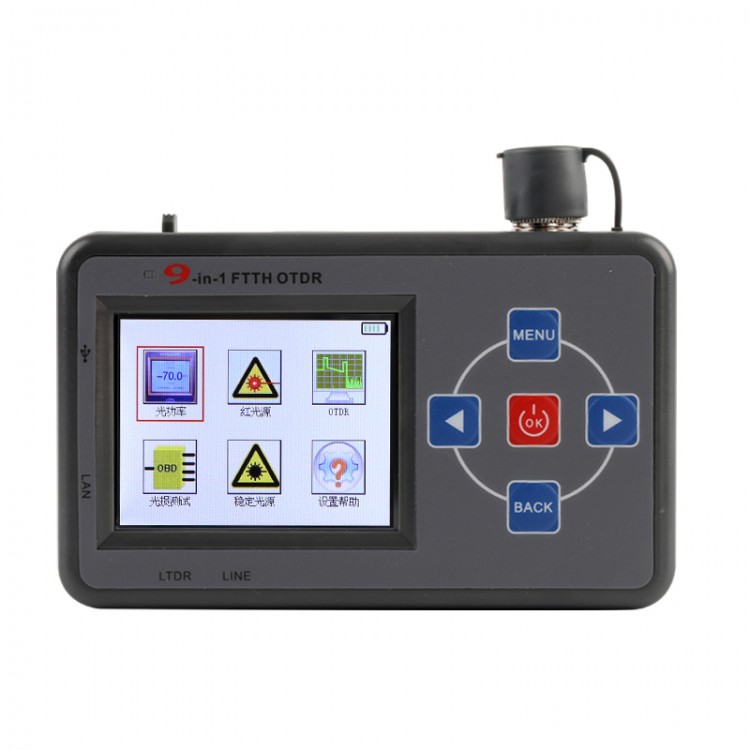

9 in 1 mini Optical Time Domain Reflectometer 1550nm OTDR Cable Test Homing Line-to-Line Fault Location SC Fiber Optic Connector

Availability: In stock, usually dispatched in 1 business day

  • Price:$293.09
  • Price in reward points: 2931 Reward Points: 29
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $287.23 $281.37 $272.57 $260.85 Contact US
Quantity:

9 in 1 mini Optical Time Domain Reflectometer 1550nm OTDR Cable Test Homing Line-to-Line Fault Location SC Fiber Optic Connector


Language: Chinese Only,  english for button


Specifications:

Fonction Setting
Standard Light meter Wavelength range (nm) 800~1625mm
  InGaAs
The type of probe(dBm) (-70~+ 6 (-50~+ 25 diffusion)
Measurement accuracy 5%
Display resolution 0.1dBm
Fiber optic category Mode unitaire
Fiber optic interface SC
Red light Operating wavelength (nm) 650nm
Light emitting device FP-LD
Output power (mw) 5 mw
Modulation 0 HZ,1 HZ,2 HZ
Fiber optic category Singlemode
Fiber optic interface SC
Light source stability Operating wavelength (nm) 1550nm
Light emitting device FP-LD
Output power (dbm) /-10dbm
Modulation 270HZ , 1K , 2K
Fiber optic category singlemode
Loss test light Fiber optic interface SC
Test range 0-40db
Measurement accuracy 5%
OTDR Laser tube LD
Diode detector Avalanche APD
Satellite resolution 0.6 meters
Blind zone events 10 meters
Xuan district mitigation 20 meters
Pulse width test 10 , 30 , 100 , 300ns , 1.3us
The depth of the dispersion
Test length (event) 18db (6us)
Test length (attenuation) 50 km
Longueur d'essai (atténuation) 30 km

Other Feeding mode Electric lithium / 4000 MAH
AC adapter MicroUSb5V / 1000mA
Single maximum current ≤200mA
Mechanical and electrical flow ≤10uA
Battery life ≥10 H
Automatic stop time (Min) Adjustable
Operating temperature (℃) -10 ~ + 50
Storage temperature (℃) -25 ~ + 70
Instrument size (cm) 12.5*9*3.3

Packing list
The host 1Pcs
Aluminum alloy tool box 1Pcs
The charger 1Pcs
USBcharging line 1the root
Q-tips 1 package
Manual 1 CE
