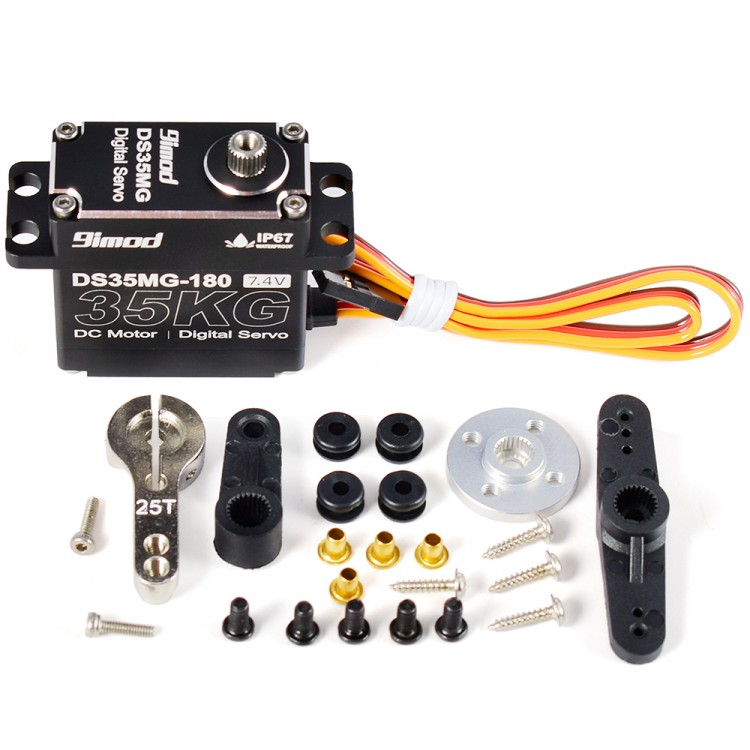

9imod 35KG 180° DC Motor Digital Servo IP67 Waterproof Servo DS35MG-180 Featuring Iron Core Motor
Features:
* High-voltage and high-performance digital servo
* Waterproof performance: IP67. Controllable angle range from 0 to 180 /270 degrees, excellent linearity, and precision control
* Widely used digital servo of high torque: This 35kg Waterpoof Servo's maximum torque is up to 35 kg/cm at 7.4V. Compatible with 1/5, 1/8, 1/10, 1/12 Scale Clawer Truck, Traxxas, scx10, RC Car / Robot / Boat and other remote control models
* Metal gear servo: Equipped with stainless steel gears, full CNC aluminium shell, featuring less noise, light weight, and dual ball bearings
Specifications:
* Brand: 9imod
* Control Angle: 180°/ 270°optional
* Gear Material: Metal Gear
* Case Material: Full Aluminum Case
* Control System: PWM Control (1500usec in the central point)
* Operation Voltage Range: 4.8V-7.4V
* Storage Temperature Range: -30℃ to 80℃
* Operation Temperature Range:-20C° to +60C°
* Circle:＞80000 times without load
* Operation Travel: 60°±1
* Limit angle: optional 180°±1/270°±1
* Direction: Re-clock wise/ Pulse Travel 500→2500 μsec
* Diver type: MOSFET Drive
* Motor Type: DC motor
* Potentiometer Type: Direct Drive
* Amplifier Type: Digital Control
* Waterproof performance: IP67
* Weight: 80g (without servo horn)
* Test Voltage: 5V / 6V / 7.4V
* Idle current (at stopped): 270mA at 5V / 320mA at 6V / 360mA at 7.4V
* Operating speed (at no load): 0.37 sec/60° at 5V; 0.3sec/60° at 6V; 0.25sec/60° at 7.4V
* Stall torque (at locked): 24.9kg-cm at 5V; 30kg-cm at 6V; 35.1kg-cm at 7.4V
* Running Current: 1.9A at 5V; 2.3A at 6V; 2.8A at 7.4V
* Dead band width: 2µsec
* Ball Bearing: 2BB
* Connector Wire Length: 300MM JR Plug
* Connector Wire Gauge: 22AWG
* Wire Info (Brown): Negative
* Wire Info (Red): Positive
* Wire Info (Black): Negative
* Wire Info (Yellow): S Sinqle
Package Included:
* 1 x Servo
* 1 x Set of Servo Accessories
Note:
* Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
