9imod 25KG 180° DC Motor Digital Servo IP67 Waterproof Servo DS25MG-180 Featuring Iron Core Motor

Availability: In stock, usually dispatched in 1 business day

  • Price:$24.31
  • Price in reward points: 243 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $23.82 $23.34 $22.61 $21.64 Contact US
Quantity:

9imod 25KG 180° DC Motor Digital Servo IP67 Waterproof Servo DS25MG-180 Featuring Iron Core Motor

Features:

* 4.8V-7.4V high-voltage and high-performance digital servo
* Waterproof performance: IP67. Controllable angle range from 0 to 180 /270 degrees, excellent linearity, and precision control
* Widely used digital servo: This 25kg Waterpoof Servo's maximum torque is up to 25 kg/cm at 7.4V. Compatible with 1/8, 1/10, 1/12 Scale Clawer Truck, trx4 defender, trx 4 sport, and gen8, Traxxas, scx10, RC Car / Robot / Boat and other remote control models
* Metal gear servo: Equipped with stainless steel gears and full CNC aluminium shell, featuring less noise, light weight, and dual ball bearings

Specifications:
* Brand: 9imod
* Control Angle: optional 180°/ 270°
* Gear Material: Metal Gear
* Case Material: Full Aluminum Case
* Control System: PWM Control (1500usec in the central point)
* Operation Voltage Range: 4.8V-7.4V
* Storage Temperature Range: -30℃ to 80℃
* Operation Temperature Range: -20C° to +60C°
* Circle: >80000 times without load
* Operation Travel: 60°±1
* Limit angle: optional 180°±1 / 270°±1
* Direction: Re-clock wise/ Pulse Travel 500→2500μsec
* Diver type: MOSFET Drive
* Motor Type: DC motor
* Potentiometer Type: Direct Drive
* Amplifier Type: Digital Control
* Waterproof performance: IP67
* Test Voltage: 5V / 6V / 7.4V
* Idle current(at stopped): 270mA at 5V / 320mA at 6V / 360mA at 7.4V
* Operating speed (at no load): 0.24 sec/60° at 5V; 0.2sec/60° at 6V; 0.16sec/60° at 7.4V
* Stall torque (at locked): 18.6kg-cm at 5V; 22.4kg-cm at 6V; 25.9kg-cm at 7.4V
* Running Current: 1.9A at 5V; 2.3A at 6V; 2.8A at 7.4V
* Dead band width: 2µsec
* Ball Bearing: 2BB
* Connector Wire Length: 300MM JR Plug
* Connector Wire Gauge: 22AWG
* Wire Info (Brown): Negative
* Wire Info (Red): Positive
* Wire Info (Black): Negative
* Wire Info (Yellow): S Sinqle

Package Included:

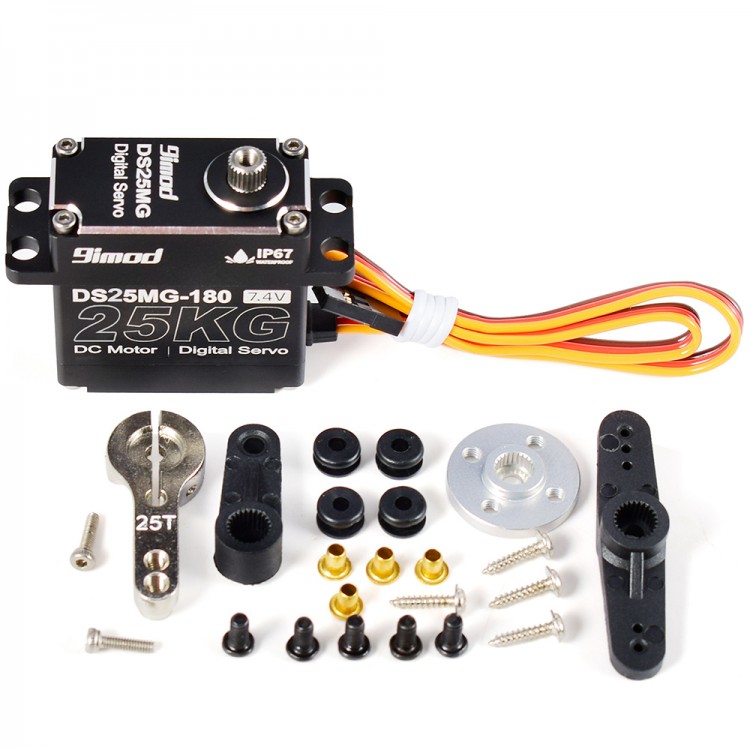

* 1 x Servo
* 1 x Set of Servo Accessories

Note:
* Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
