• MOZA R12 V2 12Nm Direct Drive Wheel Base + 280mm FSR2 Formula Steering Wheel + SR-P 3-Pedal Set

MOZA R12 V2 12Nm Direct Drive Wheel Base + 280mm FSR2 Formula Steering Wheel + SR-P 3-Pedal Set

Availability: In stock, usually dispatched in 1 business day

  • Price:$1,540.84
  • Price in reward points: 15408 Reward Points: 154
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $1,510.02 $1,479.21 $1,432.98 $1,371.35 Contact US
Quantity:

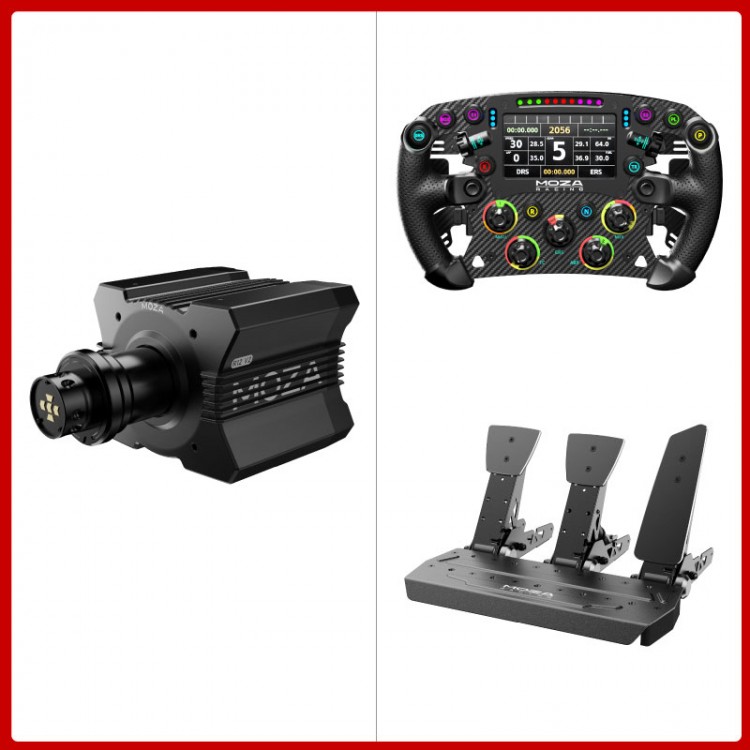

MOZA R12 V2 12Nm Direct Drive Wheel Base + 280mm FSR2 Formula Steering Wheel + SR-P 3-Pedal Set

Description:

Experience the ultimate in racing simulation with our premium bundle, combining the powerful R12 Wheel Base, the luxurious FSR2 Formula Steering Wheel, and the versatile MOZA Universal Hub Kit. The R12 Wheel Base delivers an impressive 12 N·m of torque, a lightweight design, and precise force feedback—ensuring a dynamic and immersive racing experience. Crafted from aviation-grade aluminum, it offers exceptional durability and smooth operation, enhanced by intelligent temperature control and seamless mobile app integration. Pair it with the FSR2 Formula Wheel for lightning-fast gear shifts, real-time racing data on the 4.3-inch digital dash, and customizable RGB indicators. Maximize compatibility with the MOZA Universal Hub Kit, engineered to mount effortlessly onto a variety of third-party wheelbases for expanded versatility and control. Upgrade your racing setup with this all-in-one bundle, delivering unmatched performance, flexibility, and convenience for an unparalleled sim racing experience.

R12 V2 12Nm Direct Drive Wheel Base:
Features:
12Nm Constant Torque Carbon-Fiber Skewed-Pole Servo Motor
* It delivers a sustained and stable torque output of 12Nm, precisely replicating steering forces from everyday vehicles to race cars, and delicately conveying a wide range of driving details.

21-bit Magnetic Encoder with 280MHz High-Performance Chip
* The 21-bit magnetic encoder divides each rotation into 2,097,152 steps, providing ultra-smooth control feel.
* With angular resolution reaching 0.00017°, the system offers highly accurate response and realistic, detailed force feedback.

High-Performance Skewed-Pole Servo Motor Tailored for Precision Control in Simulated Racing Scenarios
* Skewed Pole Design and Quiet Operation: The non-uniform three-segment skewed pole design effectively reduces cogging torque, electromagnetic vibration, and noise.
* High Torque Density, Compact and Powerful: Featuring a high slot-fill ratio design and high-permeability iron core, combined with strong neodymium-iron-boron magnets, the motor achieves lower power consumption and higher output performance.
* Multi-Slot Multi-Pole and Ultra-Low Torque Ripple: With a design of up to 18 slots and 16 poles, the motor offers significantly reduced torque ripple and superior vibration damping, delivering a more refined and smooth steering feel.
* Wide High-Torque Speed Range: Thanks to its low back-EMF design, the motor maintains high torque even at high speeds, allowing quick directional corrections while avoiding torque dropout.

Carbon Fiber Rotor Technology
* High-performance automotive-grade motor rotor protection technology effectively reduces rotor eddy current loss and heat buildup, ensuring sustained high-performance output of the motor.

NexGen Force 4.0 Force Feedback System
* It delivers richer and more refined force feedback details.
* Curb and road surface bumps are perceived more clearly and vividly.
* Vehicle weight transfer and tire slip responses are quicker and more responsive.
* A brand-new cogging torque compensation algorithm makes steering feel smoother.
* The force feedback interpolation algorithm eliminates peaks and dips during force transitions, resulting in more natural and fluid feedback.
* Game force feedback decoupling breaks down game-supplied forces into independently adjustable components, offering greater personalization and fine-tuning.
* Innovative Road Surface Perception Equalizer — Scenario-Based Immersive Driving: Scenario-specific tuning of road texture vibrations retains helpful driving feedback while filtering out excess vibrations, delivering an extraordinary sense of driving immersion.
* Custom Force Feedback Curve — Confident, Professional Control: It allows for a non-linear relationship between wheel base output and in-game commands. It amplifies dynamic feedback that benefits driving while reducing distracting forces, helping drivers better sense loss of traction and push the limits with greater confidence and control.

Intelligent Motor Temperature Control System
* It monitors motor and electronic component temperatures in real time, ensuring stable performance even during endurance races.

High-Strength Aluminum Alloy Body
* Automotive-grade coating and laser etching deliver a premium metallic finish.

Professional Conductive Slip Ring — Stable and Durable
* It provides solid connection between the base and steering wheel, enabling high-speed rotation with a lifespan of up to 5 million revolutions (data from MOZA laboratory durability tests). It ensures stable performance and long-lasting reliability.

Mobile App & Cloud-Based Control
* Users can adjust the wheel base, steering wheel, pedals, and other devices without pausing or switching windows during a race. Core operations from the Pit House software can be controlled via smartphone or tablet.

MOZA Pit House – Professional Sim Racing Control Center
* MOZA's independently developed PC-based control center allows users to monitor the status of all devices within the MOZA ecosystem. Users can quickly adjust parameters and launch games without repetitive setup.
* Quick Tuning for the MOZA Ecosystem: Pit House enables function checks and personalized quick tuning for all MOZA devices. Users can launch games directly, apply one-click configurations, and access telemetry data. It offers a user-friendly interface and comprehensive functionality.
* Beginner-Friendly: It provides one-click scenario-based presets tailored to different racing car types and game titles, including official presets and exclusive setups from professional sim racers. Beginners can start racing immediately without a steep learning curve.
* 19 Force Feedback Tuning Parameters for a Custom Feel: It offers 19 adjustable parameters such as mechanical friction and road feel sensitivity. The open tuning platform allows players to create their ideal steering feel while learning about tuning and improving their skill level.
* Proprietary Road Surface Perception Equalizer: It enables precise, scenario-based adjustment of road texture vibration. It retains helpful feedback while filtering out excess vibrations, delivering an extraordinary immersive driving experience.
* Proprietary Force Feedback Curve Adjustment: It allows the base's force output to follow a non-linear relationship with in-game commands. It amplifies dynamic feedback beneficial to driving, dampens distracting forces, and helps the driver better detect vehicle instability—enhancing control near the limits.
* Detailed Steering Wheel Control: Through MOZA Pit House, users can finely tune settings such as dual-clutch paddles, knobs, joysticks, and shift indicator lights, significantly improving steering wheel handling.
* Precision Pedal Adjustment: On the pedal setup page, users can finely adjust throttle, brake, and clutch travel, output curves, and pressure response points. This helps players quickly develop proper braking techniques and effectively improve lap times.

Integrated Design Saves Space
* The all-in-one motor is compact and portable.
* It supports installation on professional racing cockpits, integrated stands, and desktop clamp mounts, offering a wide range of mounting options.
* Note: Desktop clamp installation requires an additional clamp (sold separately).

Hands-Off Protection for Enhanced Safety
* When the vehicle loses control and the steering wheel begins to oscillate, the system detects whether hands are off the steering wheel. If so, the steering wheel will automatically stop oscillating and stabilize near the center (zero) position. This helps effectively prevent injury and allows the driver to quickly regain control.

Supported Games for PC:
* Assetto Corsa
* Assetto Corsa Competizione
* Forza Horizon 4 (This game is currently not compatible with Steam)
* Forza Horizon 5 (Win 10)
* Euro Truck Simulator 2
* American Truck Simulator
* RaceRoom Racing Excperience
* F1 2018
* F1 2019
* F1 2020
* F1 2021
* F1 22
* F1 23
* rFactor 2
* Project CARS 1
* Project CARS 2
* Project CARS 3
* WRC G
* WRC 9
* WRC 10
* Dirt Rally
* Dirt Rally 2.0
* Dirt 4
* iRacing
* Wreckfest
* KartKarft
* Richard Burns Rally
* Live For Speed
* BeamNG.Drive
* MudRunner
* CarX Drift Racing Online
* Automobilista 2

Specifications:
* Drive Type: Direct Drive
* Max Wheel Rotation: 90-2700°
* Housing Material: Aluminum Alloy
* Housing Color: Black
* Peak Torque: 12 Nm
* Peak Power: 216W
* Input Voltage: 110V~220V AC —>36V DC
* Encoder Resolution: 21-Bit Magnetic Encoder with 280MHz High-Performance Processor
* USB Refresh Rate: 1000 Hz
* App Functions: Supported
* Quick Release: Supported
* Connection Ports: Power, USB, Pedal, Dash, Shifter, Handbrake, E-stop
* Box Contents: R12 Wheel Base, User Manual, Power Supply, USB Cable, Tool Kit
* Fixing Method: 4-hole bottom mount
* Desk Clamp: Optional
* E-stop: Optional
* Online Firmware Update: Supported
* Dimensions: 225.87 x 156.68 x 123.99 mm

FSR2 Formula Steering Wheel:
Features:
280mm Formula Wheel – Built for Ultimate Racing
* The MOZA FSR2 Formula Wheel is a 280mm sim racing wheel designed for maximum immersion and peak performance. Engineered with precision and packed with advanced features, it delivers the ultimate sim racing experience.

4.3-Inch Touchscreen LCD Display
* The upgraded 4.3-inch touchscreen supports intuitive swipe gestures (up, down, left, right), allowing for quick dashboard style changes and seamless switching between UI layouts during a race.
* Resolution: 480p
* 16.7 million colors
* Refresh Rate: 60Hz

Customizable Dashboard UI System
MOZA is the first sim hardware brand to offer a proprietary, fully customizable UI system. Through MOZA Pit House software, users can:
* Choose from a range of pre-set dashboard layouts
* Design their own custom interfaces
* Share and download designs via the MOZA community platform

Quad-Core High-Performance Processor
* Powered by a 1.3GHz quad-core processor, the FSR2 ensures real-time data processing and ultra-smooth display performance with near-zero latency.

6 RGB Signal Lights
* The MOZA FSR2 Formula Wheel is equipped with 6 RGB signal lights, offering up to 16.7 million color combinations. These lights provide real-time track alerts, such as yellow, blue, and red flags, offering intuitive cues like accident warnings or overtaking signals to keep drivers aware of track conditions. The lighting modes are customizable to suit different race regulations and track requirements.

Ergonomic Design with Advanced Controls
* Two 7-way switches: They offer versatile control with multiple input directions.
* Two Thumb Encoders: Perfect for real-time adjustments to traction control, brake bias, etc.
* Five Rotary Encoders: Precision controls for tuning ABS, engine maps, and MGU settings.

6-Paddle Layout
* The MOZA FSR2 Formula Wheel features a 6-paddle design. In addition to the shift and dual-clutch paddles, it includes an extra pair of paddles for quick activation of DRS and KERS systems, along with flexible adjustment of driving modes and vehicle settings to meet a variety of operational needs.

Custom Quick Release System
* MOZA's quick-release mechanism enables rapid and secure wheel changes across the MOZA Racing ecosystem, ensuring a stable, high-strength connection and smooth transitions between wheel setups.

Innovative Craftsmanship & Premium Build
* Featuring a sturdy frame made from 5mm high-strength carbon fiber and 3mm magnetic shifter paddles, the FSR2 offers a weighty feel and dependable durability. The perforated microfiber leather ensures both a premium tactile experience and excellent grip. The rear casing, crafted from CNC-machined aluminum alloy, adds a refined metallic texture while delivering outstanding strength and rigidity.

Open Ecosystem
* Engineered for seamless integration, the FSR2 Formula Wheel is fully compatible with all MOZA wheel bases currently available. It also supports third-party wheel bases through the MOZA hub kit, offering maximum flexibility and ease of use for sim racers across various platforms.

MOZA Pit House Software
* The MOZA Pit House software features an intuitive, user-friendly interface that allows you to test wheel functionality and fine-tune every aspect of your setup. Customize RPM LED colors, brightness, and timing, and fully configure your dashboard display for a truly personalized racing experience.

Specifications:
* Size: 280mm formula-style steering wheel
* Back Plate Material: Aerospace-grade aluminum alloy
* Face Plate Material: 5mm-thick 3K twill carbon fiber
* Grip Material: Perforated microfiber leather
* Display Screen: 4.3-inch touchscreen display
* Display UI: Fully customizable
* Short-Travel Backlit Buttons: 10
* Backlit Color Options for Buttons: 16.7 million colors
* Rotary Encoders: 2
* Thumb Encoders: 3
* 7-Way Switches: 2
* Signal Lights: 6 LED side-mounted signal lights
* Shift Indicator Lights: 10 LED top-mounted shift indicator lights
* Adjustable Colors for Shift Lights, Signal Lights, and Button Lights: 16.7 million colors
* Shift Paddles: Hall sensor magnetic carbon fiber paddles
* Dual Clutch Paddles: Hall sensor magnetic carbon fiber paddles
* Smart Telemetry: Supported
* Fully Adjustable RPM LEDs through MOZA Pit House: Supported
* Release Method: All-aluminum quick release
* Communication Methods: Wireless or via conductive slip ring
* Compatibility: It is compatible with all MOZA wheelbases and works with 3rd party wheelbases via MOZA hub.

SR-P 3-Pedal Set:
Features:
* Made with High-strength Steel: The pedals are crafted from high-strength steel, ensuring superior quality and durability.
* Floor Mounted Organ Type Accelerator Pedal: The organ-style accelerator pedal allows the driver's foot and the pedal to move along the same trajectory, making throttle control easier and more precise.
* High-Precision 100KG Load Cell: The MOZA SR-P pedals feature advanced load cell sensors with a 100 kg capacity. These sensors accurately detect brake pedal pressure, enabling users to apply the ideal braking force through precise pressure control.
* 16-bit High Precision Magnetic Encoder: The brake, optional clutch, and throttle pedals all use a 16-bit precision magnetic encoder with 65536 PPR resolution — offering much higher accuracy and greater stability than a Hall sensor.
* Dual Sensor Fusion Algorithm: The brake uses both pressure and angle sensors to allow precise braking control. In the initial stage, the angle sensor dominates, enabling racers to modulate the braking angle. In the mid and final stages, the pressure sensor takes over, making the pedal easier to control.
* Braking Spring and Damping Block Combined: By utilizing both a braking spring and a damping block, racers can enjoy greater control during the initial stage of pedal travel, along with a signature stiffness in the final stage that closely simulates real brake pedal feel.
* Direct Connection with PC through USB: The MOZA SR-P Pedals connect effortlessly to your PC via USB and can be easily calibrated using the intuitive MOZA Pit House software. With universal compatibility across all sim racing gear, they ensure a smooth and hassle-free experience for every racing enthusiast.
* Multiple Use Scenarios: The anti-slip mat on the bottom prevents the pedals from sliding during use without professional brackets, while still allowing easy integration into more advanced setups.
* Detachable Pedals: The pedals can be easily detached and mounted onto other professional brackets. For advanced users, they can also be installed in a reversed configuration.
* Pedal Output Curve Adjustment: MOZA Pit House allows easy configuration of pedal output curves to suit different needs.

Specifications:
* Material: High-strength steel
* Plate Material: High-strength steel
* Brake Sensor: Load cell + angle sensor
* Max Capacity: 100KG
* Throttle Sensor: Angle sensor
* Clutch Sensor: Angle sensor (Only for the 3-pedal set)
* Angle Sensor Resolution: 16-bit (65536ppr)
* Pedal Spacing: Adjustable
* Pedal Plate Height: Adjustable
* Pedal Connection Port: USB
* Pedal Travel Software Adjustment: Yes
* Pedal Travel Reverse Function: Yes
* Anti-Slipping Pad: Included

Packing List:
* 1 x R12 wheel base
* 1 x User manual
* 1 x Power supply
* 1 x USB cable
* 1 x Tool kit
* 1 x FSR2 Formula Wheel
* 1 x SR-P 3-Pedal Set

Packaging Details:
* Weight: 15.7kg

Note:
* The SR-P pedals are compatible with other products and can be used via USB alongside any brand.
* They are not compatible with the SR-P Lite Clutch Pedal and SR-P Lite Brake Pedal Performance Kit.
