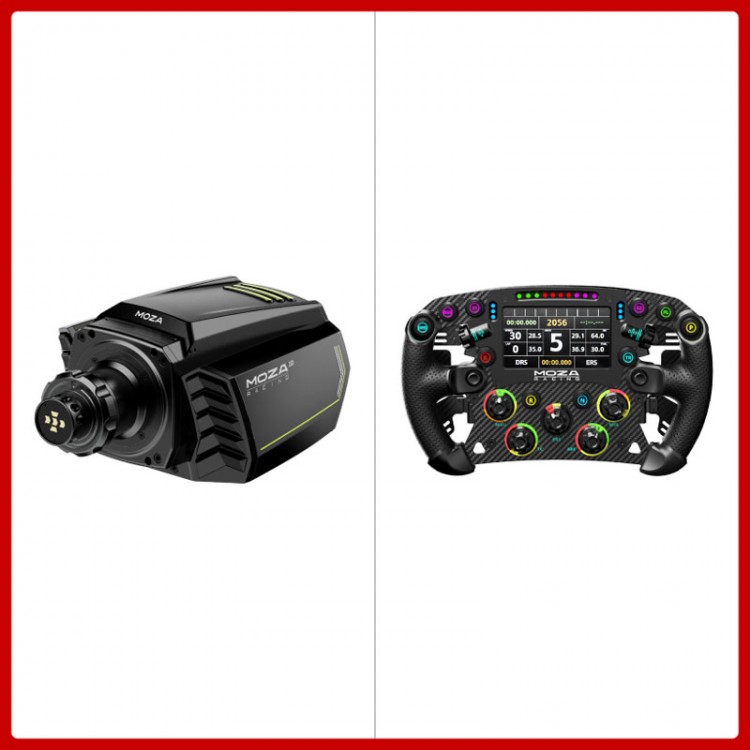

MOZA R21 V1 21Nm Direct Drive Wheel Base DD Wheel Base + 11" FSR2 Steering Wheel Formula Wheel

MOZA R21 V1 21Nm Direct Drive Wheel Base DD Wheel Base + 11" FSR2 Steering Wheel Formula Wheel

R21 V1 21Nm DD Wheel Base:
1. Features:
21 Nm of High Torque Delivers Powerful Performance
* The wheel base features a professional-grade servo direct drive with powerful output.
* With 21 Nm of high torque, it covers the steering forces from performance cars to F1 race cars, precisely conveying vehicle dynamics and road surface details. It meets training needs from gaming to real-world driving, delivering an authentic, professional-grade simulated racing experience.

Brand-New NexGen Force 3.0 Force Feedback System
* Based on years of research in direct drive force feedback algorithms, we've launched the NexGen Force 3.0 feedback system. It significantly enhances instantaneous response and vibration filtering algorithms across different frequency bands.
* Powered by this system, the extremely high torque conversion rate and 280MHz processor enable excellent force feedback responsiveness. Vibrations across all frequency bands are better preserved, realistically and completely conveying road surface details.

Innovative Road Surface Perception Equalizer for Immersive Driving Scenarios
* MOZA has innovatively introduced the Road Surface Perception Equalizer. It enables scene-based fine-tuning of road feedback vibrations, maximizing the retention of useful details for the driver. It filters out unnecessary vibrations, creating an exceptional sense of immersion during driving.

Self-Developed Force Feedback Curve Adjustment for Confident Professional Control
* Our independently developed force feedback curve adjustment feature allows for a nonlinear relationship between the base's force output and game commands. It amplifies dynamic feedback that aids in driving while diminishing distracting forces. This enables drivers to more easily sense vehicle loss of control, improves tolerance at the handling limit, and allows them to drive confidently on the edge.

Six Core Technologies
* Meticulously designed by Chinese motor experts, the rotor adopts innovative structures such as V-shaped skewed pole fractional slots and concentrated windings.
* With the same volume, it delivers over 30% more maximum torque than the R16.
* Further optimization of torque ripple and cogging torque provides a smoother steering experience.

High-Strength Aluminum Alloy Body
* The body is largely constructed from aluminum alloy, offering both rigidity and a premium tactile feel.

High-Performance Motor, Born Exceptional
* The powerful motor, custom-designed for sim racing scenarios and optimized by Chinese motor experts, incorporates high-grade neodymium-iron-boron magnets and high-permeability magnetic cores. This results in lower cogging torque and torque ripple, delivering an incredibly smooth steering feel.

18-bit Magnetic Encoder
* The motor is controlled by an 18-bit magnetic encoder, dividing each rotation into 262,144 segments for more refined steering feedback.
* With faster response, it significantly enhances the competitive driving experience.

Professional Conductive Slip Ring: Stable and Durable
* The conductive slip ring ensures a robust connection between the base and the steering wheel, supporting high-speed rotation with an operational lifespan of up to 5 million revolutions (according to MOZA laboratory durability tests). It offers stable performance and long-lasting reliability.
* Wireless communication is also supported. With a dual-connection design, it ensures a secure link without disconnection.

Intelligent Temperature Control
* MOZA's self-developed intelligent thermal management system continuously monitors the motor's temperature and adopts different cooling strategies based on real-time thermal data. This ensures the safe and stable operation of the equipment.

Supports Multi-Device Integration
* Users can directly connect MOZA ecosystem devices such as pedals, shifters, handbrakes, and dashboards to the base. This not only reduces the number of USB ports needed but also allows for unified use of multiple devices on the same console platform.

Front Mounting Support
* The front of the base features four mounting holes.
* When paired with MOZA's front mounting bracket, both front and side mounting options are available. This improves legroom and is especially suitable for a Formula-style seating position.
*Note: The front mounting bracket is sold separately.

Mobile App Cloud-Based Control
* Through the mobile app, users can adjust settings for the base, steering wheel, pedals, and other devices.
* Parameter tuning can be performed during a race without pausing or switching screens.
* Main functions in the Pit House control center can be managed via a smartphone or tablet.

Quick Launch for Instant Gameplay
* With MOZA's proprietary control center, MOZA Pit House, once configured, users can launch directly into the game with a single click—no more waiting, just start playing instantly.

2. Specifications:
* Supported Platform: PC
* Drive Type: Direct Drive
* Maximum Steering Angle: 90°–2700°
* Housing Material: Aluminum Alloy
* Maximum Torque: 21 Nm
* Rated Power: 480W
* Input Voltage: 110V–220V AC → 36V DC
* Encoder Resolution: 262,144 PPR
* Maximum USB Refresh Rate: 1000 Hz
* App Functionality: Supported
* Quick Release: Supported
* Ports: Power Supply, Data, Pedal, Display, Shifter, Handbrake, and Emergency Stop Switch
* Mounting Method: Front-mounted with 4 holes / Bottom-mounted with 4 holes
* Mounting Bracket: Bottom Angle-Adjustable Bracket / Side-Mount Bracket
* Table Clamp: Optional
* Side Mounting: Supported
* Emergency Stop Switch: Optional
* Firmware Upgrade Function: Supported

3. Partial Game Compatibility List:
* For Assetto Corsa
* For Assetto Corsa Competizione
* For DiRT Rally
* For DiRT Rally 2.0
* For DiRT 4
* For F1 2018
* For F1 2019
* For F1 2020
* For Kartkarft
* For BeamNG.Drive
* For MudRunner
* For WRC 9
* For WRC 10
* For WRC G
* For Richard Burns Rally
* For Live For Speed
* For F1 2021
* For F1 22
* For Forza Horizon 4 (Version for Microsoft Store)
* For Forza Horizon 5
* For Project CARS
* For Project CARS 2
* For Project CARS 3
* For Wreckfest
* For RaceRoom Racing Experience
* For Automobilista
* For Automobilista 2
* For iRacing
* For rFactor 2
* For Euro Truck Simulator 2
* For American Truck Simulator
* For American Truck Simulator 2

11" FSR2 Steering Wheel:
1. Features:
280mm/11" Formula Wheel – Built for Ultimate Racing
* The MOZA FSR2 Formula Wheel is a 280mm sim racing wheel designed for maximum immersion and peak performance. Engineered with precision and packed with advanced features, it delivers the ultimate sim racing experience.

4.3-Inch Touchscreen LCD Display
* The upgraded 4.3-inch touchscreen supports intuitive swipe gestures (up, down, left, right), allowing for quick dashboard style changes and seamless switching between UI layouts during a race.
* Resolution: 480p
* 16.7 million colors
* Refresh Rate: 60Hz

Customizable Dashboard UI System
MOZA is the first sim hardware brand to offer a proprietary, fully customizable UI system. Through MOZA Pit House software, users can:
* Choose from a range of pre-set dashboard layouts
* Design their own custom interfaces
* Share and download designs via the MOZA community platform

Quad-Core High-Performance Processor
* Powered by a 1.3GHz quad-core processor, the FSR2 ensures real-time data processing and ultra-smooth display performance with near-zero latency.

6 RGB Signal Lights
* The MOZA FSR2 Formula Wheel is equipped with 6 RGB signal lights, offering up to 16.7 million color combinations. These lights provide real-time track alerts, such as yellow, blue, and red flags, offering intuitive cues like accident warnings or overtaking signals to keep drivers aware of track conditions. The lighting modes are customizable to suit different race regulations and track requirements.

Ergonomic Design with Advanced Controls
* Two 7-way switches: They offer versatile control with multiple input directions.
* Two Thumb Encoders: Perfect for real-time adjustments to traction control, brake bias, etc.
* Five Rotary Encoders: Precision controls for tuning ABS, engine maps, and MGU settings.

6-Paddle Layout
* The MOZA FSR2 Formula Wheel features a 6-paddle design. In addition to the shift and dual-clutch paddles, it includes an extra pair of paddles for quick activation of DRS and KERS systems, along with flexible adjustment of driving modes and vehicle settings to meet a variety of operational needs.

Custom Quick Release System
* MOZA's quick-release mechanism enables rapid and secure wheel changes across the MOZA Racing ecosystem, ensuring a stable, high-strength connection and smooth transitions between wheel setups.

Innovative Craftsmanship & Premium Build
* Featuring a sturdy frame made from 5mm high-strength carbon fiber and 3mm magnetic shifter paddles, the FSR2 offers a weighty feel and dependable durability. The perforated microfiber leather ensures both a premium tactile experience and excellent grip. The rear casing, crafted from CNC-machined aluminum alloy, adds a refined metallic texture while delivering outstanding strength and rigidity.

Open Ecosystem
* Engineered for seamless integration, the FSR2 Formula Wheel is fully compatible with all MOZA wheel bases currently available. It also supports third-party wheel bases through the MOZA hub kit, offering maximum flexibility and ease of use for sim racers across various platforms.

MOZA Pit House Software
* The MOZA Pit House software features an intuitive, user-friendly interface that allows you to test wheel functionality and fine-tune every aspect of your setup. Customize RPM LED colors, brightness, and timing, and fully configure your dashboard display for a truly personalized racing experience.

2. Specifications:
* Size: 280mm/11" formula-style steering wheel
* Back Plate Material: Aerospace-grade aluminum alloy
* Face Plate Material: 5mm-thick 3K twill carbon fiber
* Grip Material: Perforated microfiber leather
* Display Screen: 4.3-inch touchscreen display
* Display UI: Fully customizable
* Short-Travel Backlit Buttons: 10
* Backlit Color Options for Buttons: 16.7 million colors
* Rotary Encoders: 2
* Thumb Encoders: 3
* 7-Way Switches: 2
* Signal Lights: 6 LED side-mounted signal lights
* Shift Indicator Lights: 10 LED top-mounted shift indicator lights
* Adjustable Colors for Shift Lights, Signal Lights, and Button Lights: 16.7 million colors
* Shift Paddles: Hall sensor magnetic carbon fiber paddles
* Dual Clutch Paddles: Hall sensor magnetic carbon fiber paddles
* Smart Telemetry: Supported
* Fully Adjustable RPM LEDs through MOZA Pit House: Supported
* Release Method: All-aluminum quick release
* Communication Methods: Wireless or via conductive slip ring
* Compatibility: It is compatible with all MOZA wheelbases and works with 3rd party wheelbases via MOZA hub.

Packing List:
* 1 x Wheel base
* 1 x Steering wheel

Packaging Details:
* Weight: 16.1kg
