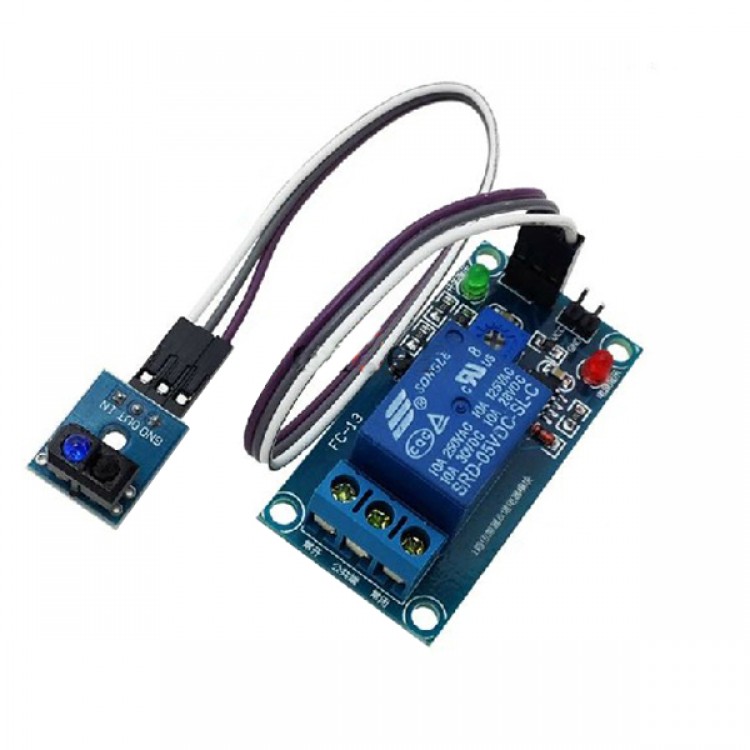

A07 TCRT5000 Optoelectronic Switch Sensor Infrared Optoelectronic Switch Infrared Reflection Relay
Function:
- Taking advantage of infrared photoelectric reflection principle, continuously emits infrared signal to the infrared emission tube
- When there is a reflector, receiving tube output signals, amplified by chip, the driver relay control related equipments
- Reflection distance is 0-3CM adjustable, (black object with very small reflection impact while white relection is obvious) commonly used for detecting near object induction, apply to all kinds of automation equipment modification
Description:
- Adopting TCRT5000 infrared photoelectric sensor as inductive head, wire length is 20CM
- Electricity and relay auctation instructions
- With power relya, can control 10A current load
- Module size: 50 x 26 x 18.5mm
- Hole pitch: 45*21.5
- Aperture: 3.1mm
- Net weight: 21.5g
Parameters:
- Module power supply: DC5V
- Static current: 10mA
- Maximum power consumption: 75mA
- Reflection distance: 0-3cm adjustable induction
Package list:
- TCRT5000 sensor inductive head with 20CM Dupont line x 1
- Main control board x 1
